FZT751
Document Number DS32208 Rev. 7 - 2
1 of 7
www.diodes.com
January 2013
© Diodes Incorporated
FZT751
A Product Line of
Diodes Incorporated
60V PNP HIGH PERFORMANCE TRANSISTOR IN SOT223
Features
• BV
CEO
> -60V
• I
C
= -3A high Continuous Current
• I
CM
= -6A Peak Pulse Current
• Low Saturation Voltage V
CE(sat)
< -300mV @ -1A
• Complementary NPN Type: FZT651
• Lead-Free Finish; RoHS compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
• PPAP capable (Note 4)
Mechanical Data
• Case: SOT223
• Case material: molded plastic. “Green” molding compound.
• UL Flammability Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
• Weight: 0.112 grams (approximate)
Applications
• Automotive lighting
• MOSFET and IGBT gate driving
Ordering Information
(Notes 4 & 5)
Product Compliance Marking Reel size (inches) Tape width (mm) Quantity per reel
FZT751TA AEC-Q101 FZT751 7 12 1,000
FZT751QTA Automotive FZT751 7 12 1,000
FZT751TC AEC-Q101 FZT751 13 12 4,000
FZT751QTC Automotive FZT751 13 12 4,000
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified.
5. For packaging details, go to our website at http://www.diodes.com
Marking Information
FZT751 = Product Type Marking Code

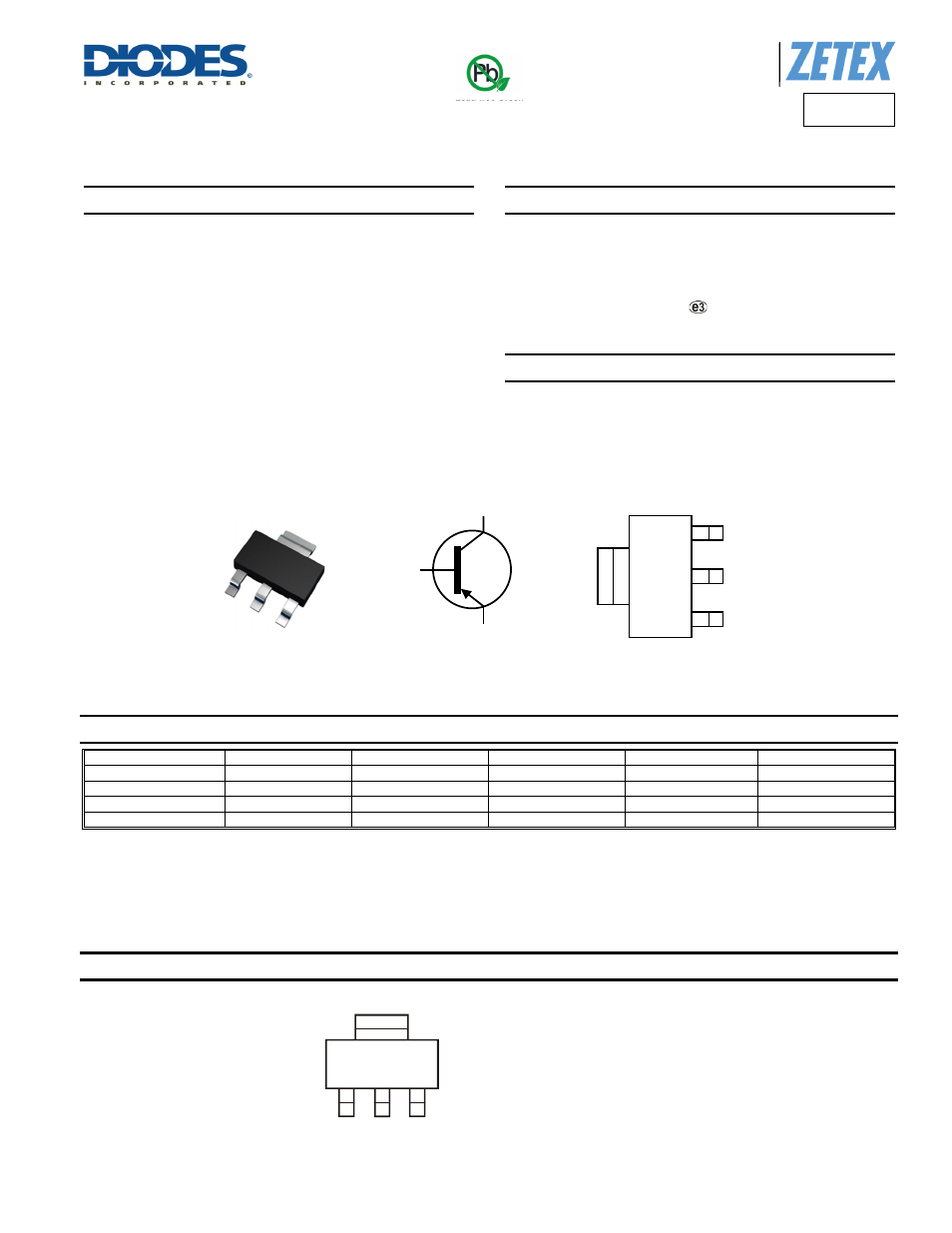

SOT223
Top View Device Symbol Top View
Pin-Out
Green
751
FZT
C
E
B
C
E
C
B
