FZT651
Document Number DS33149 Rev. 5 - 2
1 of 7
www.diodes.com
February 2014
© Diodes Incorporated
A Product Line of
Diodes Incorporated
FZT651
60V NPN HIGH PERFORMANCE TRANSISTOR IN SOT223
Features
 BV
CEO
> 60V
 I
C
= 3A High Continuous Current
 I
CM
= 6A Peak Pulse Current
 Low Saturation Voltage V
CE(sat)
< 300mV @ 1A
 Complementary PNP Type: FZT751
 Lead-Free Finish; RoHS compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
 Case: SOT223
 Case material: molded plastic. “Green” molding compound.
 UL Flammability Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
 Weight: 0.112 grams (approximate)
Ordering Information
(Note 4)
Product Compliance Marking Reel size (inches) Tape width (mm) Quantity per reel
FZT651TA AEC-Q101 FZT651 7 12 1,000
FZT651TC AEC-Q101 FZT651 13 12 4,000
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html

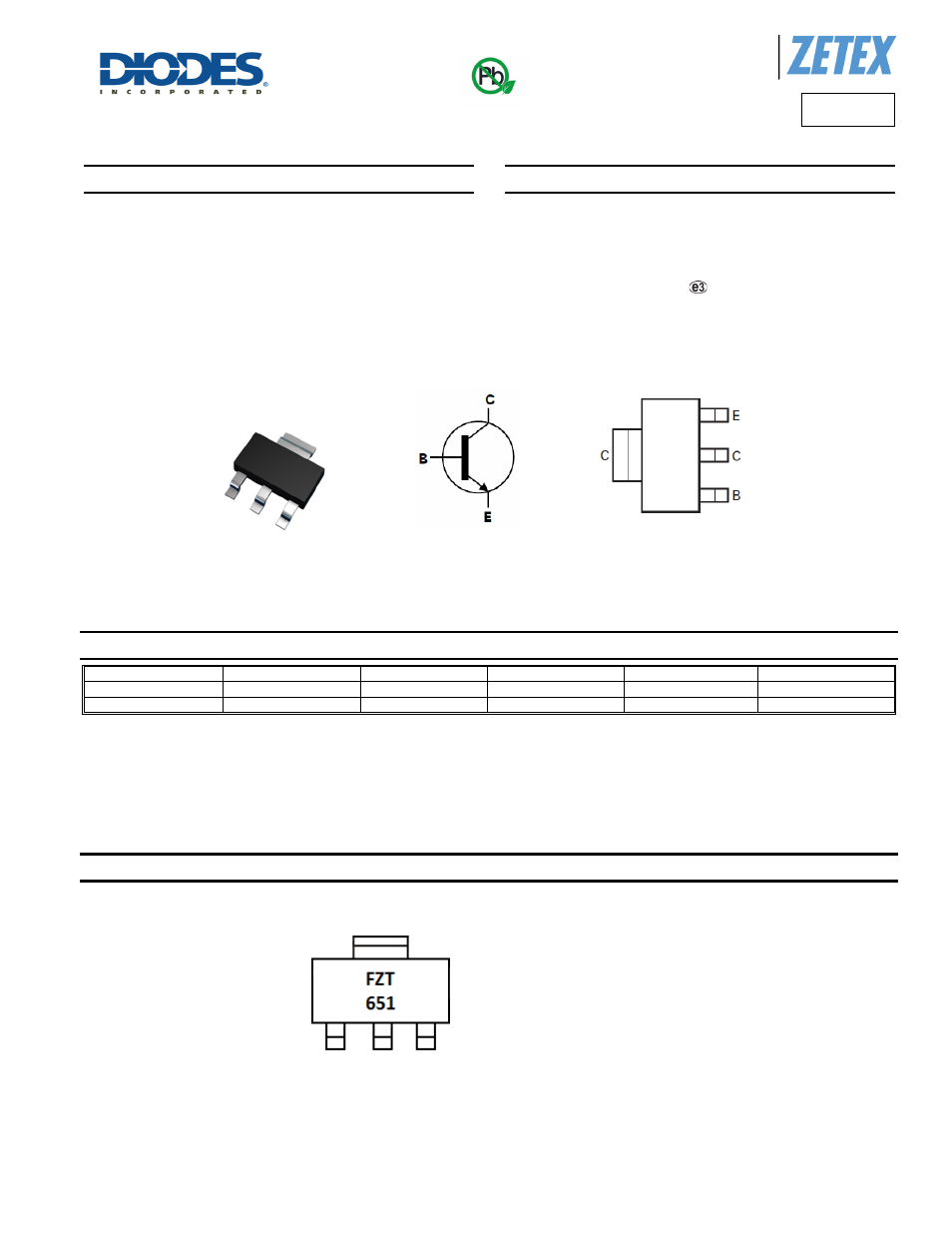

Marking Information
FZT651 = Product Type Marking Code
SOT223
Top View Device Symbol
Top View
Pin-Out
Green
