FZT491
Document number: DS33135 Rev. 4 - 2
1 of 7
December 2012
© Diodes Incorporated
FZT491
A Product Line of
Diodes Incorporated
60V NPN MEDIUM POWER TRANSISTOR IN SOT223
Features
• BV
CEO
> 60V
•
I
C
= 1A high Continuous Current
•
Low saturation voltage V
CE(sat)
< 500mV @ 1A
•
Complementary PNP Type: FZT591
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Applications
•
Power MOSFET gate driving
•
Low loss power switching
Mechanical Data
• Case:
SOT223
•
Case material: molded plastic. “Green” molding compound.
•
UL Flammability Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
•
Weight: 0.112 grams (approximate)
Ordering Information
(Notes 4)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
FZT491TA FZT491
7
12
1,000
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. Se information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at

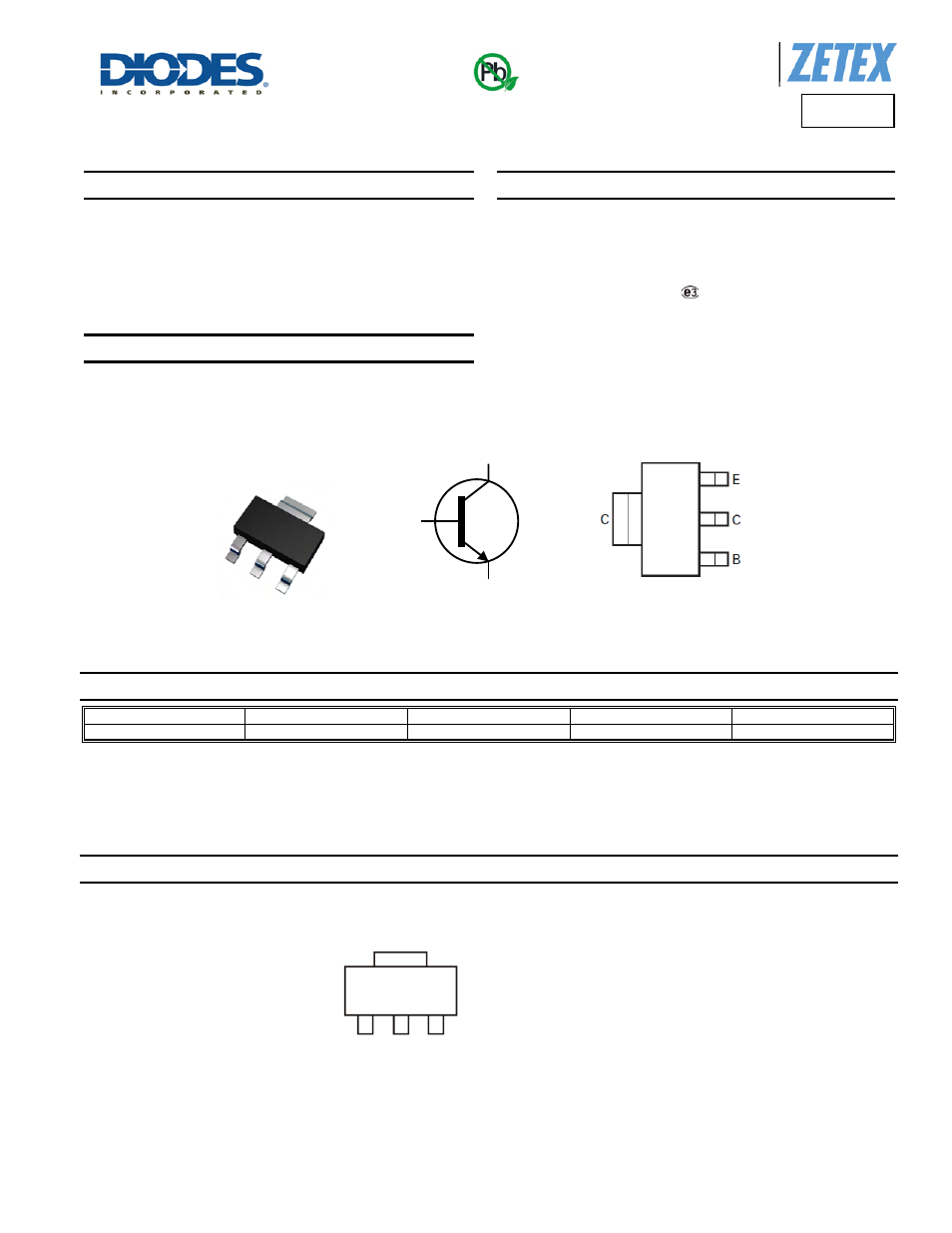

Marking Information
SOT223
Top View
Device Symbol
Top View
Pin-Out
Green
FZT491 = Product Type Marking Code
C
E
B
FZT
491
