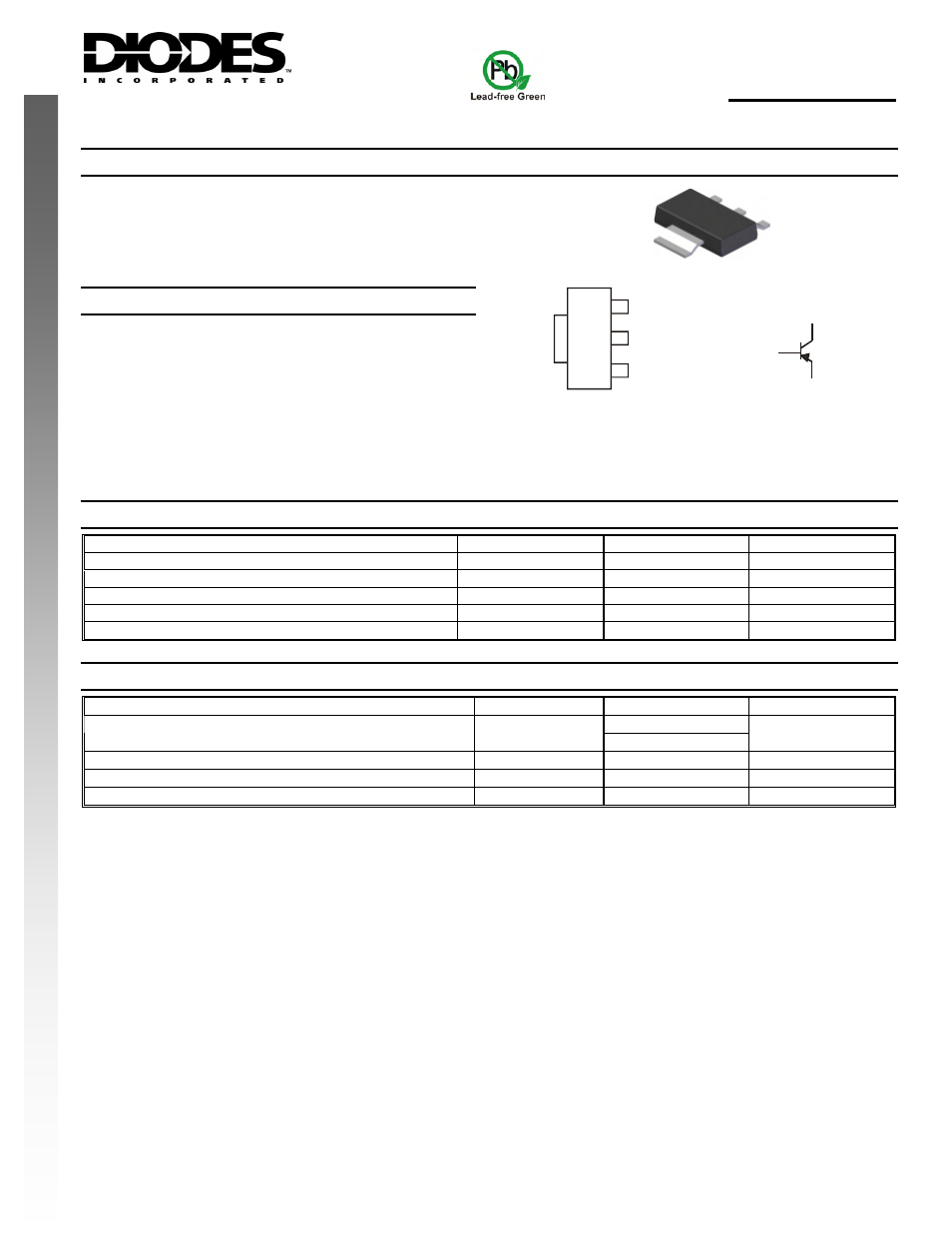

DZT2907A
PNP SURFACE MOUNT TRANSISTOR
Features
NEW PROD
UC
T
•
Epitaxial Planar Die Construction
• Complementary NPN Type Available (DZT2222A)
•
Ideally Suited for Automated Assembly Processes
•
Ideal for Medium Power Amplification and Switching
•
Lead Free By Design/RoHS Compliant (Note 1)
• "Green" Device (Note 2)
Mechanical Data
• Case: SOT-223
•
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020C
•
Terminals: Finish - Matte Tin annealed over Copper Leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
•
Marking & Type Code Information: See Page 4
• Ordering Information: See Page 4
• Weight: 0.115 grams (approximate)
2
3
4
1
SOT-223
4
3
2
1
C C
B
E
3
1
2,4
BASE
COLLECTOR
EMITTER
TOP VIEW
Schematic and Pin Configuration
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic Symbol Value Unit
Collector-Base Voltage V
CBO
-60 V
Collector-Emitter Voltage V CEO
-60 V
Emitter-Base Voltage V
EBO
-5 V
Collector Continuous Current (Note 3) I
C
-600 mA
Peak Collector Current I CM
-800 mA
Thermal Characteristics
Characteristic Symbol Value Unit
1000 (Note 3)
Power Dissipation @ T
A
= 25°C P
d
1500 (Note 4)
mW
Power Derating Factor above 25 °C (Note 4)
P der
12 mW/ °C
Operating and Storage Temperature Range T
j
, T
STG
-55 to +150 °C
Thermal Resistance, Junction to Ambient Air @ T A = 25°C (Note 4) R θJA 83.3
ο
C/W
Notes: 1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
3. Device mounted on 2” x 2” FR-4 PC board, 2 oz. copper, single sided, pad layout as shown on page 4, or on Diodes Inc. suggested pad
layout document AP02001, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
4. Device mounted on FR-4 PCB, 7cm
2 of copper pad area.
