DXT2907A
PNP SURFACE MOUNT TRANSISTOR
Features
• Epitaxial Planar Die Construction
• Complementary NPN Type Available (DXT2222A)
•
Ideally Suited for Automated Assembly Processes
• Ideal for Medium Power Switching or Amplification Applications
• Lead Free by Design/RoHS Compliant (Note 1)
•
"Green" Device (Note 2)
Mechanical Data
•
Case: SOT89-3L
•
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020C
• Terminals: Finish - Matte Tin annealed over Copper leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
•
Marking & Type Code Information: See Page 4
• Ordering Information: See Page 4
•
Weight: 0.072 grams
NEW PROD
UC
T

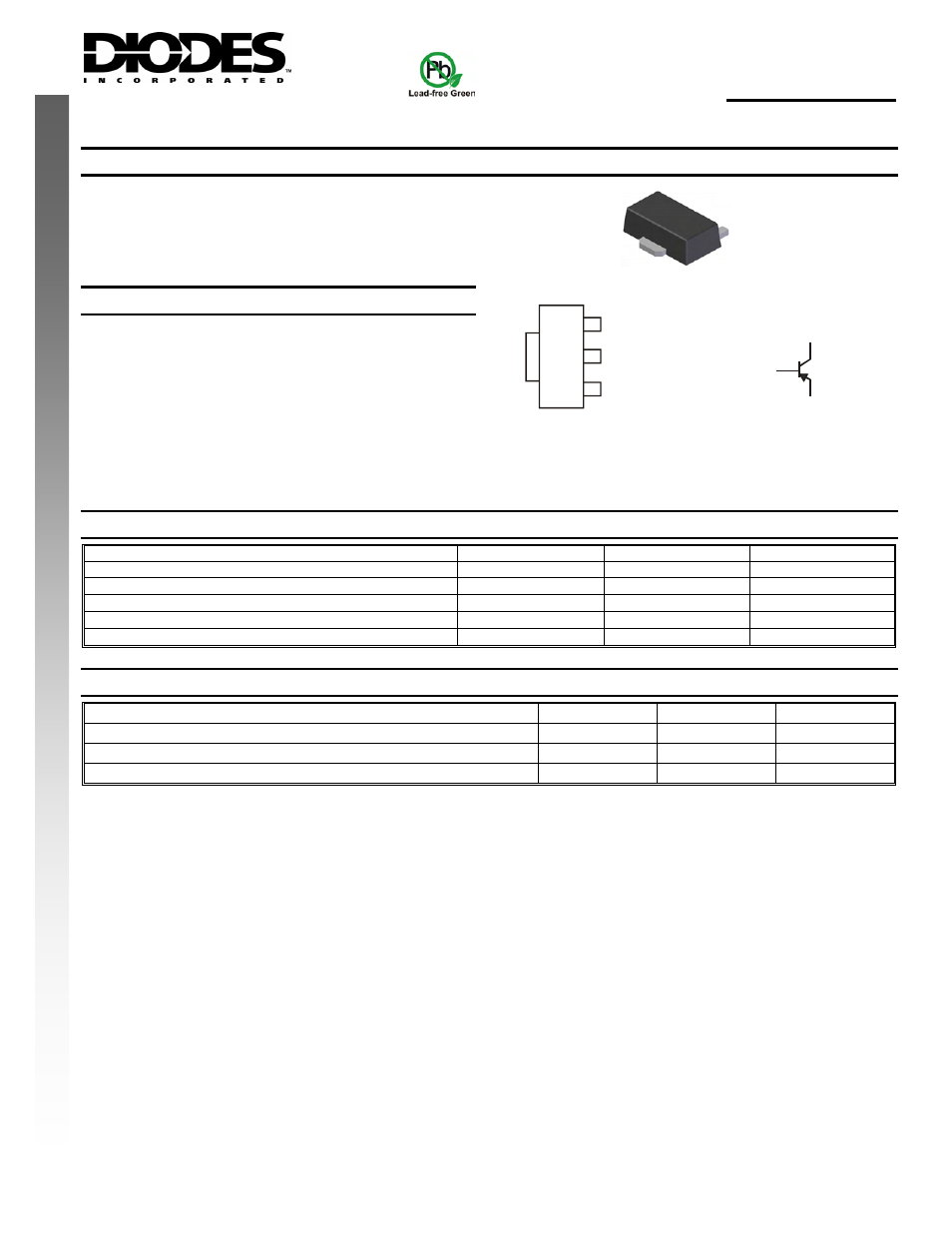

SOT89-3L
3
1
2,4
COLLECTOR
EMITTER
BASE
4
3
2
1
C C
B
E
TOP VIEW
Schematic and Pin Configuration
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic Symbol Value Unit
Collector-Emitter Voltage V
CEO
-60 V
Collector-Base Voltage V
CBO
-60 V
Emitter-Base Voltage V
EBO
-5 V
Collector Current I
C
-600 mA
Peak Collector Current I
CM
-800 mA
Thermal Characteristics
Characteristic Symbol Value Unit
Power Dissipation (Note 3) @ T
A
= 25
°C P
D
1 W
Thermal Resistance, Junction to Ambient Air (Note 3) @ T
A
= 25
°C
R θJA 125 °C/W
Operating and Storage Temperature Range T
j,
T
STG
-55 to +150 °C
Notes:
1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
3. Device mounted on FR-4 PCB, pad layout as shown on page 4 or in Diodes Inc. suggested pad layout document AP02001, which can be found on our
website at http://www.diodes.com/datasheets/ap02001.pdf
DS30944 Rev. 5 - 2 1 of 4
www.diodes.com
DXT2907A
© Diodes Incorporated
