DSS60600MZ4
Document number: DS31589 Rev. 2 - 2
4 of 5
www.diodes.com
December 2008
© Diodes Incorporated
DSS60600MZ4
NEW PROD
UC
T

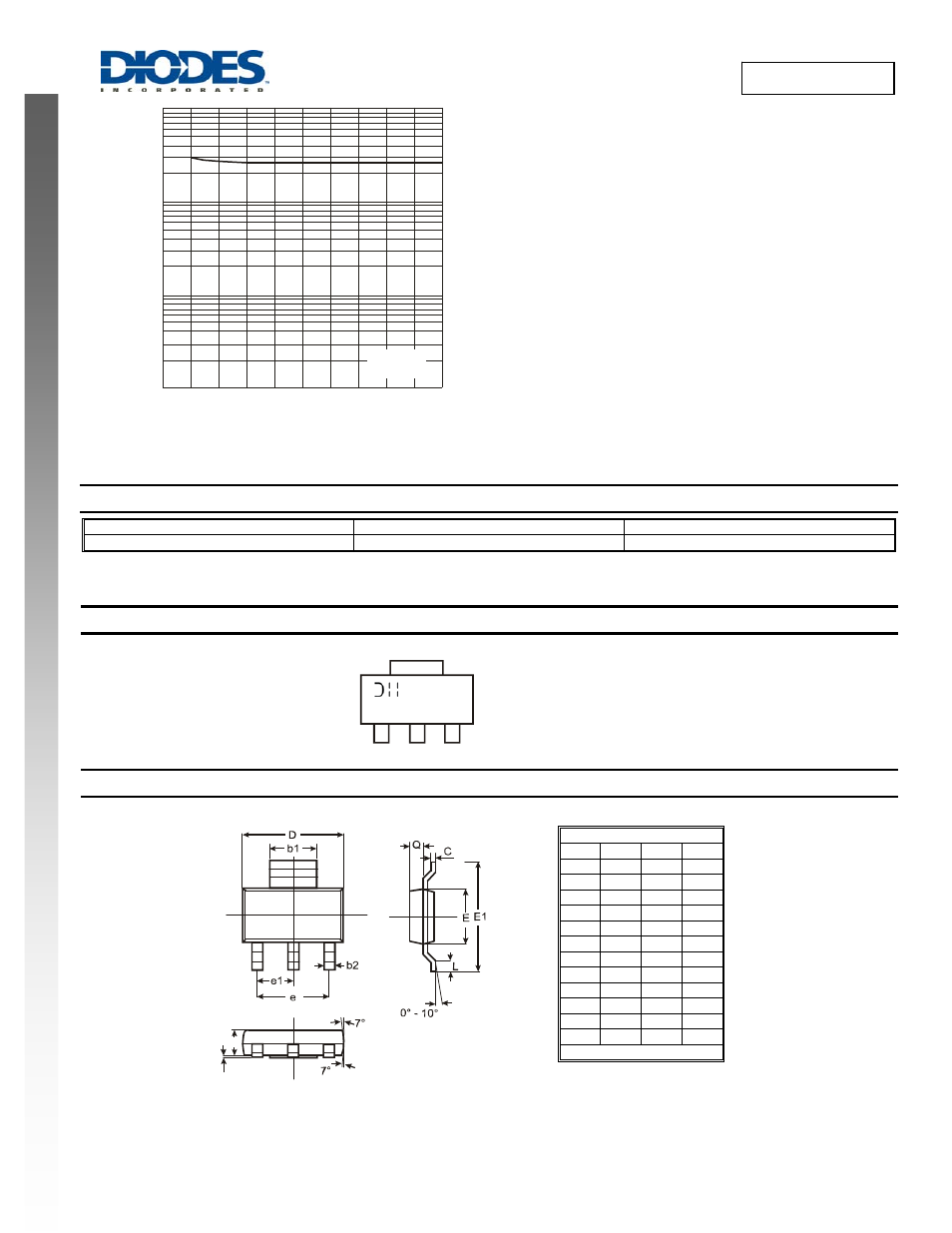

Fig. 9 Typical Gain-Bandwidth Product
vs. Collector Current
0 10 20 30 40 50 60 70 80 90 100
-I , COLLECTOR CURRENT (mA)
C
1
10
100
1,000
f,
G
AIN-
BANDW
ID
T
H
P
R
O
D
U
C
T
(M
H
z)
T
V = -10V
f = 100MHz
CE
Ordering Information
(Note 6)
Part Number Case Packaging
DSS60600MZ4-13 SOT-223 2500/Tape & Reel
Notes: 6. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
Package Outline Dimensions
SOT-223
Dim Min Max Typ
A 1.55 1.65 1.60
A1 0.010 0.15 0.05
b1 2.90 3.10 3.00
b2 0.60 0.80 0.70
C 0.20 0.30 0.25
D 6.45 6.55 6.50
E 3.45 3.55 3.50
E1 6.90 7.10 7.00
e — — 4.60
e1 — — 2.30
L 0.85 1.05 0.95
Q 0.84 0.94 0.89
All Dimensions in mm
ZPS66 = Product Type Marking Code
YWW = Date Code Marking
Y = Last digit of year (ex: 8 = 2008)
WW = Week code 01 - 52
A1
A
ZPS66
YWW
