DSS5160U
NEW PROD
UC
T
LOW V
PNP SURFACE MOUNT TRANSISTOR
Features
•
Epitaxial Planar Die Construction
•
Low Collector-Emitter Saturation Voltage, V
CE(SAT)
•
Complementary NPN Type Available (DSS4160U)
•
Ultra-Small Surface Mount Package
•
Lead Free By Design/RoHS Compliant (Note 1)
•
"Green Device" (Note 2)
Mechanical Data
• Case:
SOT-323
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020D
• Terminals:
Finish
⎯ Matte Tin annealed over Copper Plated
Alloy 42 leadframe. Solderable per MIL-STD-202, Method 208
•
Terminal Connections: See Diagram
•
Marking Information: See Page 4
•
Ordering Information: See Page 4
•
Weight: 0.006 grams (approximate)
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic Symbol
Value
Unit
Collector-Base Voltage
V
CBO
-80 V
Collector-Emitter Voltage
V
CEO
-60 V
Emitter-Base Voltage
V
EBO
-5 V
Collector Current - Continuous
I
C
-1 A
Peak Pulse Collector Current
I
CM
-2 A
Base Current (DC)
I
B
-300 mA
Peak Base Current
I
BM
-1 A
Thermal Characteristics
Characteristic Symbol
Value
Unit
Power Dissipation (Note 3) @ T
A
= 25
°C P
D
400 mW
Thermal Resistance, Junction to Ambient (Note 3) @ T
A
= 25
°C
R
θJA
313
°C/W
Operating and Storage Temperature Range
T
J
, T
STG
-55 to +150
°C
Notes:
1. No purposefully added lead.
2. Diode’s Inc.’s “Green” policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
3. Device mounted on FR-4 PCB with minimum recommended pad layout.

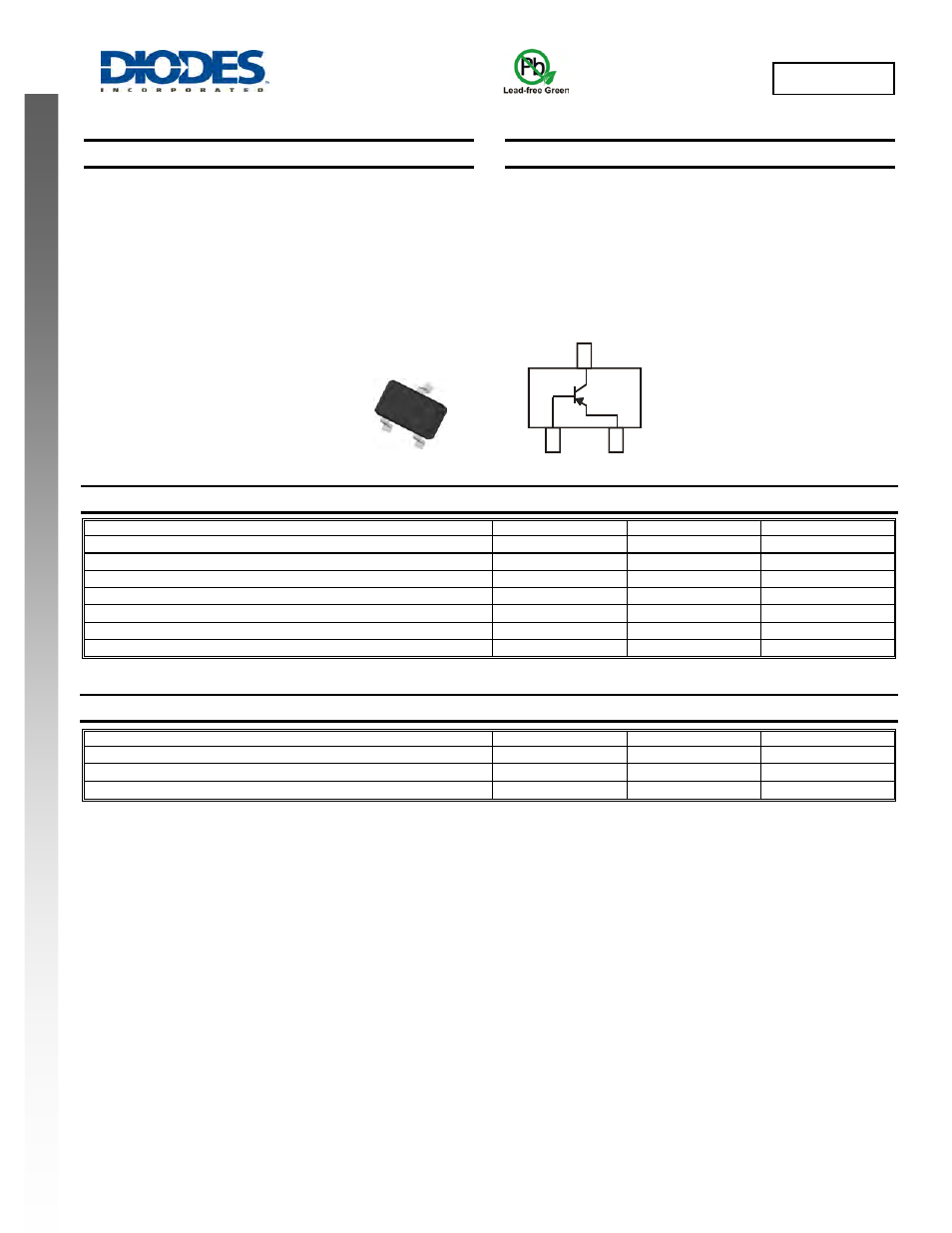

Top View
Device Schematic
E
B
C
