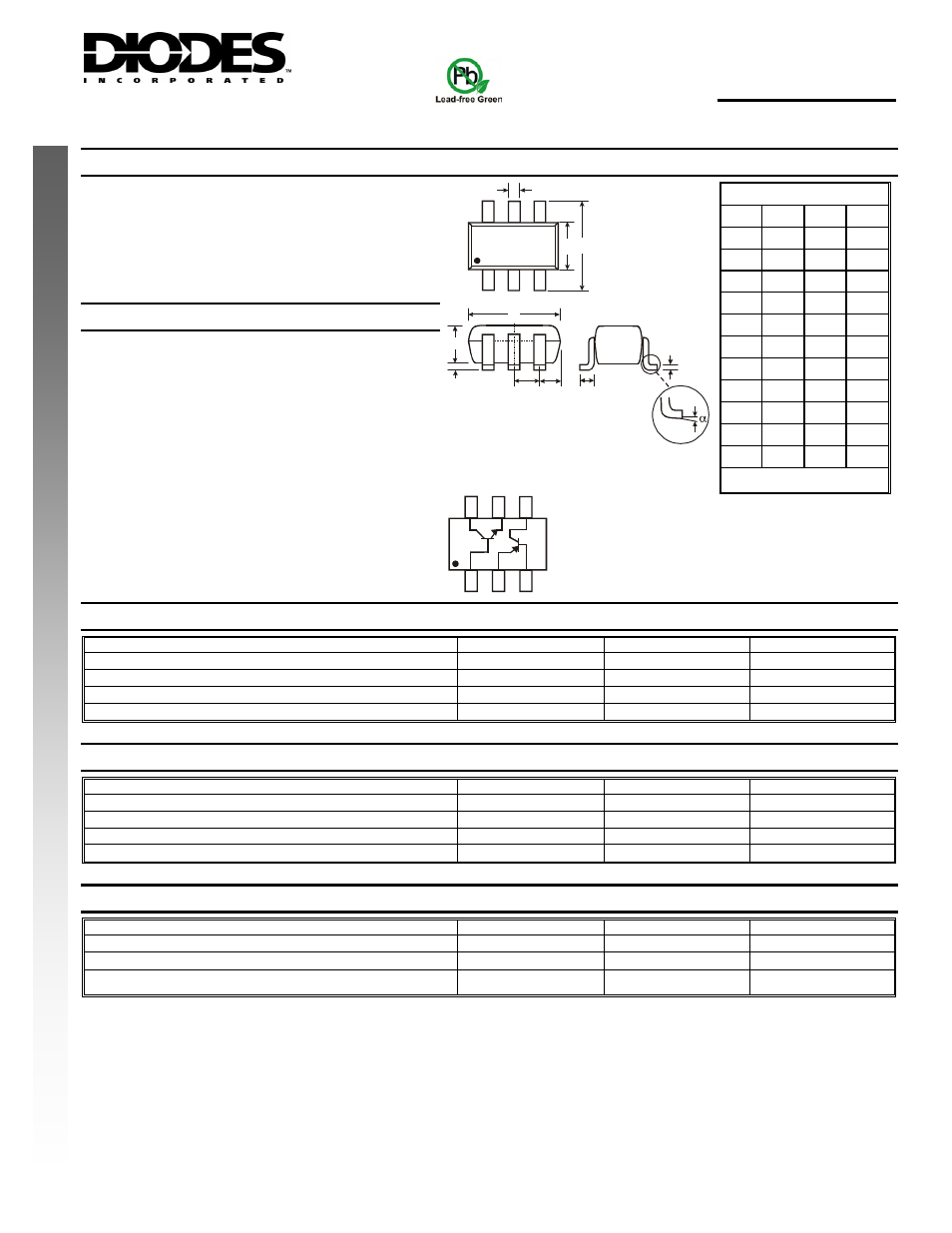

DMB2227A
COMPLEMENTARY NPN / PNP SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Features
•
Complementary Pair
• Epitaxial Planar Die Construction
•
One 2222A Type (NPN),
One 2907A Type (PNP)
•
Ideal for Low Power Amplification and Switching
• Lead Free By Design/RoHS Compliant (Note 2)
• "Green Device" (Note 3)
Mechanical Data
•
Case: SOT-26
•
Case Material: Molded Plastic, “Green” Molding
Compound. UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020C
• Terminals: Finish - Matte Tin annealed over Copper
leadframe. Solderable per MIL-STD-202, Method 208
• Terminal Connections: See Diagram
•
Ordering & Date Code Information: See Page 6
•
Marking Information: See Page 6
• Weight: 0.006 grams (approximate)
SOT-26
Dim Min Max Typ
A 0.35 0.50 0.38
B 1.50 1.70 1.60
C 2.70 3.00 2.80
D – – 0.95
F – – 0.55
H 2.90 3.10 3.00
J 0.013 0.10 0.05
K 1.00 1.30 1.10
L 0.35 0.55 0.40
M 0.10 0.20 0.15
α 0 ° 8 ° –
All Dimensi mm ons in
A
M
J
L D F
B C
H
K
C
2
B 1
E
1
E
2
B
2
C
1
NEW PROD
UC
T
Note: E1, B1, and C1 = 2222A Type (NPN)
E2, B2, and C2 = 2907A Type (PNP)
Type marking indicates orientation
C 2 E
1
C
1
B
2
E
2
B
1
Maximum Ratings: 2222A Type (NPN)
@T
A
= 25°C unless otherwise specified
Characteristic Symbol 2222A (NPN) Unit
Collector-Base Voltage V
CBO
75 V
Collector-Emitter Voltage V
CEO
40 V
Emitter-Base Voltage V
EBO
6.0 V
Collector Current - Continuous I
C
600 mA
Maximum Ratings: 2907A Type (PNP)
@T A = 25°C unless otherwise specified
Characteristic Symbol 2907A (PNP) Unit
Collector-Base Voltage V CBO
-60 V
Collector-Emitter Voltage V
CEO
-60 V
Emitter-Base Voltage V
EBO
-5.0 V
Collector Current - Continuous I
C
-600 mA
Maximum Ratings: Total
@T
A
= 25°C unless otherwise specified
Characteristic Symbol Value Unit
Power Dissipation (Note 1) P
D
300 mW
Thermal Resistance, Junction to Ambient (Note 1) R θJA 417
°C/W
Operating and Storage Temperature Range T
j
, T
STG
-55 to +150 °C
Notes: 1. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which
can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
2. No purposefully added lead.
3. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
DS31217 Rev. 4 - 2 1 of 6
