FZT591A
Document number: DS33143 Rev. 2 - 2
1 of 7
www.diodes.com
October 2012
© Diodes Incorporated
FZT591A
A Product Line of
Diodes Incorporated
40V PNP SILICON PLANAR MEDIUM POWER TRANSISTOR IN SOT223
Features
• BV
CEO > -40V
•
I
C
= -1A high Continuous Current
•
Low saturation voltage V
CE(sat)
< -500mV @ -1A
• Complementary PNP Type: FZT591A
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
•
PPAP capable (Note 4)
Applications
• Power MOSFET & IGBT gate driving
•
Low loss power switching
Mechanical Data
• Case:
SOT223
•
Case material: molded plastic. “Green” molding compound.
• UL Flammability Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
•
Weight: 0.112 grams (approximate)
Ordering Information
(Notes 4 & 5)
Product Compliance Marking Reel size (inches) Tape width (mm) Quantity per reel
FZT591ATA AEC-Q101 FZT591A 7 12 1,000
FZT591AQTA Automotive FZT591A 7 12 1,000
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified.
5. For packaging details, go to our website at http://www.diodes.com

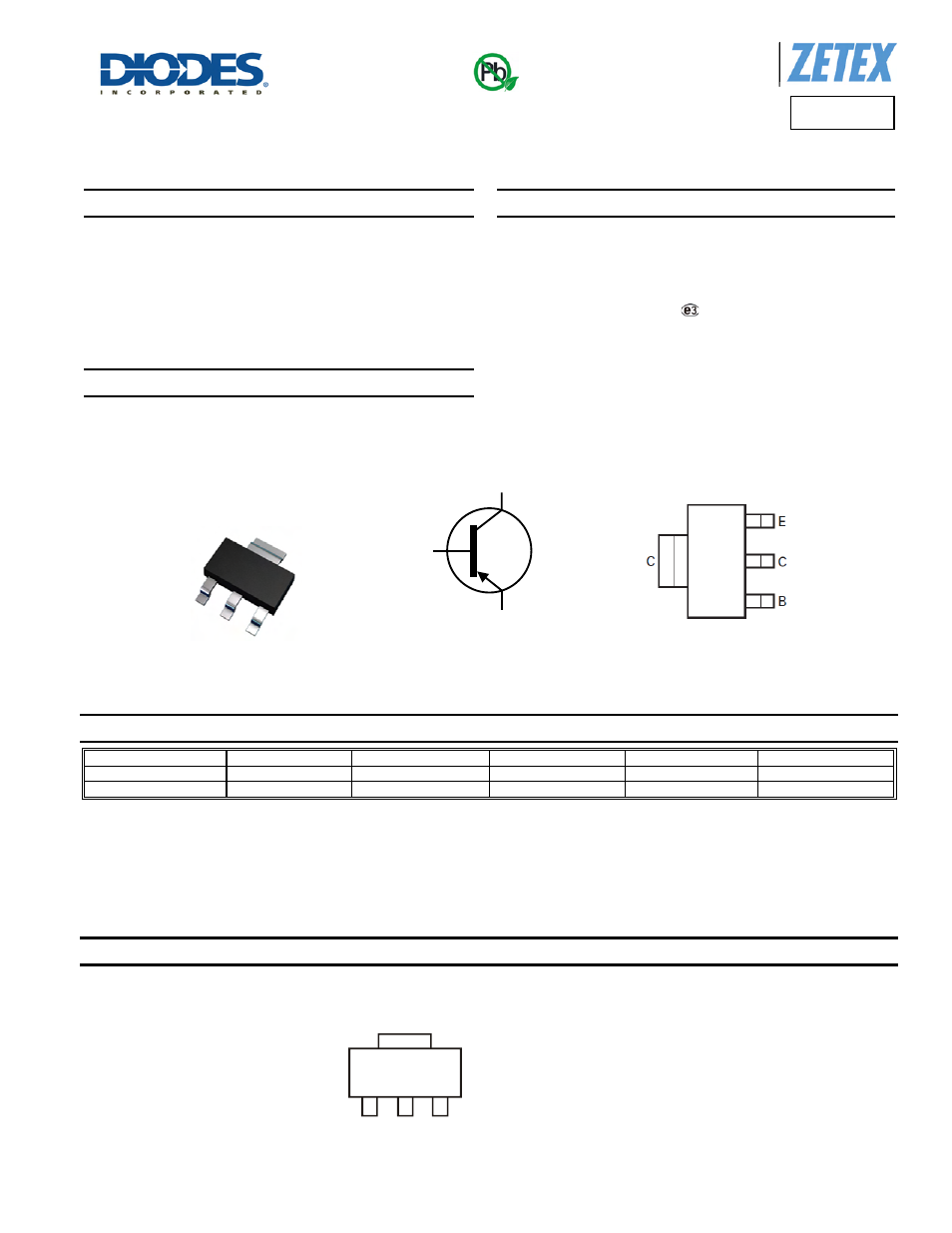

Marking Information
SOT223
Top View Device Symbol
Top View
Pin-Out
Green
FZT591A = Product Type Marking Code
C
E
B
FZT
591A
