Dxt690bp5, Features, Mechanical data

PowerDI is a registered trademark of Diodes Incorporated.
DXT690BP5
Document number: DS31801 Rev. 3 - 2
1 of 7
February 2014
© Diodes Incorporated
DXT690BP5
A Product Line of
Diodes Incorporated
45V NPN HIGH GAIN TRANSISTOR IN POWERDI
®
5
Features
• BV
CEO
> 45V
•
I
C
= 3A High Continuous Collector Current
•
I
CM
= 6A Peak Collector Current
•
High gain device >400 @1A
•
R
CE(sat)
= 77mΩ for low equivalent On-Resistance
•
h
FE
specified up to 6A for a high gain hold up
•
43% smaller than SOT223; 60% smaller than TO252
•
Maximum height just 1.1mm
•
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
•
PPAP Capable (Note 4)
Mechanical Data
• Case:
PowerDI5
•
Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish – Matte Tin annealed over Copper leadframe
Solderable per MIL-STD-202, Method 208
•
Weight: 0.093 grams (approximate)
Applications
• LED
driver
• Motor
driver
• Power
Switches
• DC-DC
Converters
•
IGBT & MOSFET Gate Drivers
• Automotive
Circuits
Ordering Information
(Notes 4 & 5)
Product
Compliance
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
DXT690BP5-13 AEC-Q101 DXT690B
13
16
5,000
DXT690BP5Q-13 Automotive
DXT690B
13
16
5,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to
5. For packaging details, go to our website at

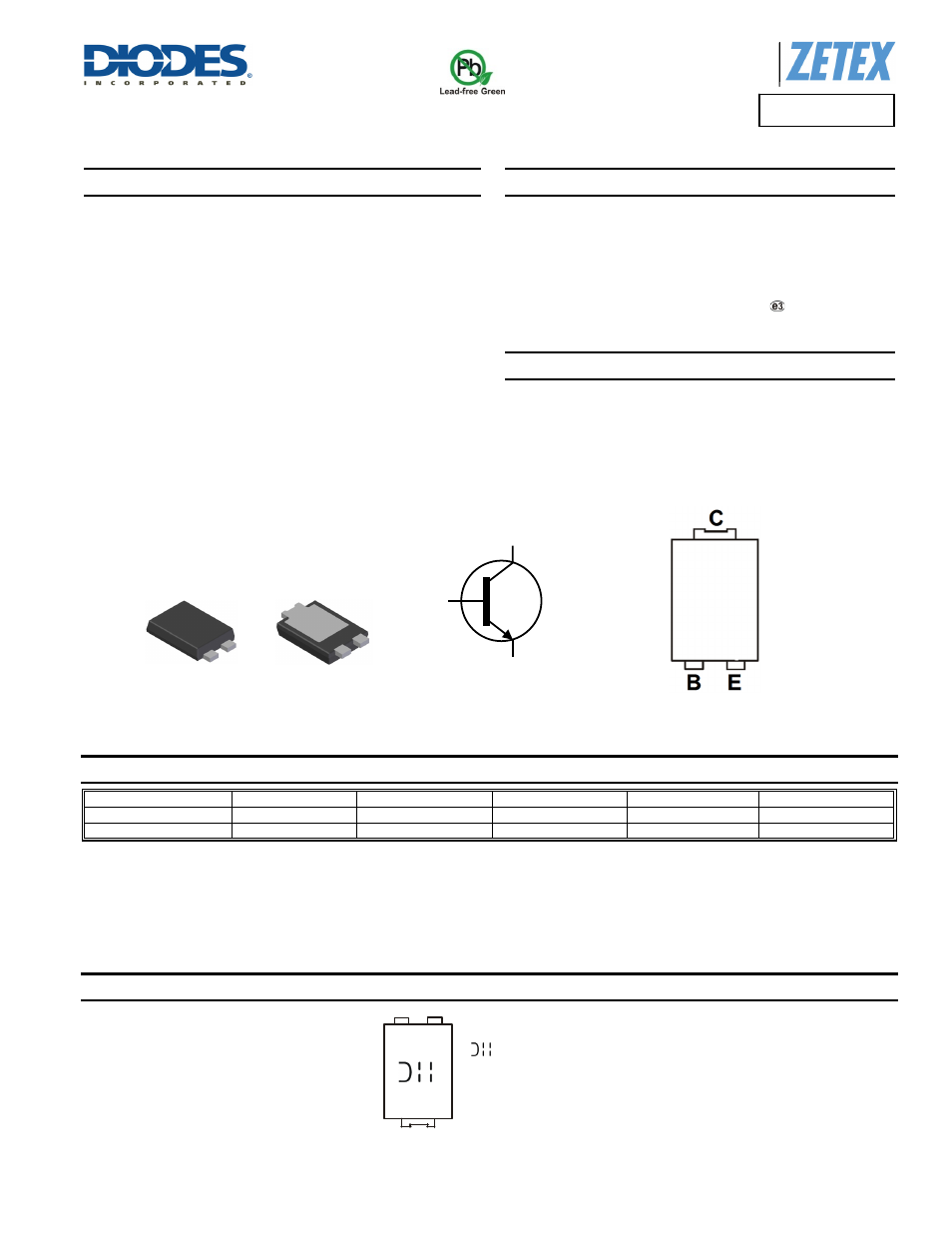

Marking Information
Top View
Bottom View
Device Schematic
C
E
B
Top View
Pin-Out
DXT690B = Product Type Marking Code
= Manufacturers’ Code Marking
K = Factory Designator
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 09 for 2009)
WW = Week code (01 to 53)
YYWWK
DXT690B
POWERDI5
