DST3904DJ
Document number: DS32038 Rev. 2 - 2
5 of 6
www.diodes.com
April 2010
© Diodes Incorporated
DST3904DJ
NEW PROD
UC
T

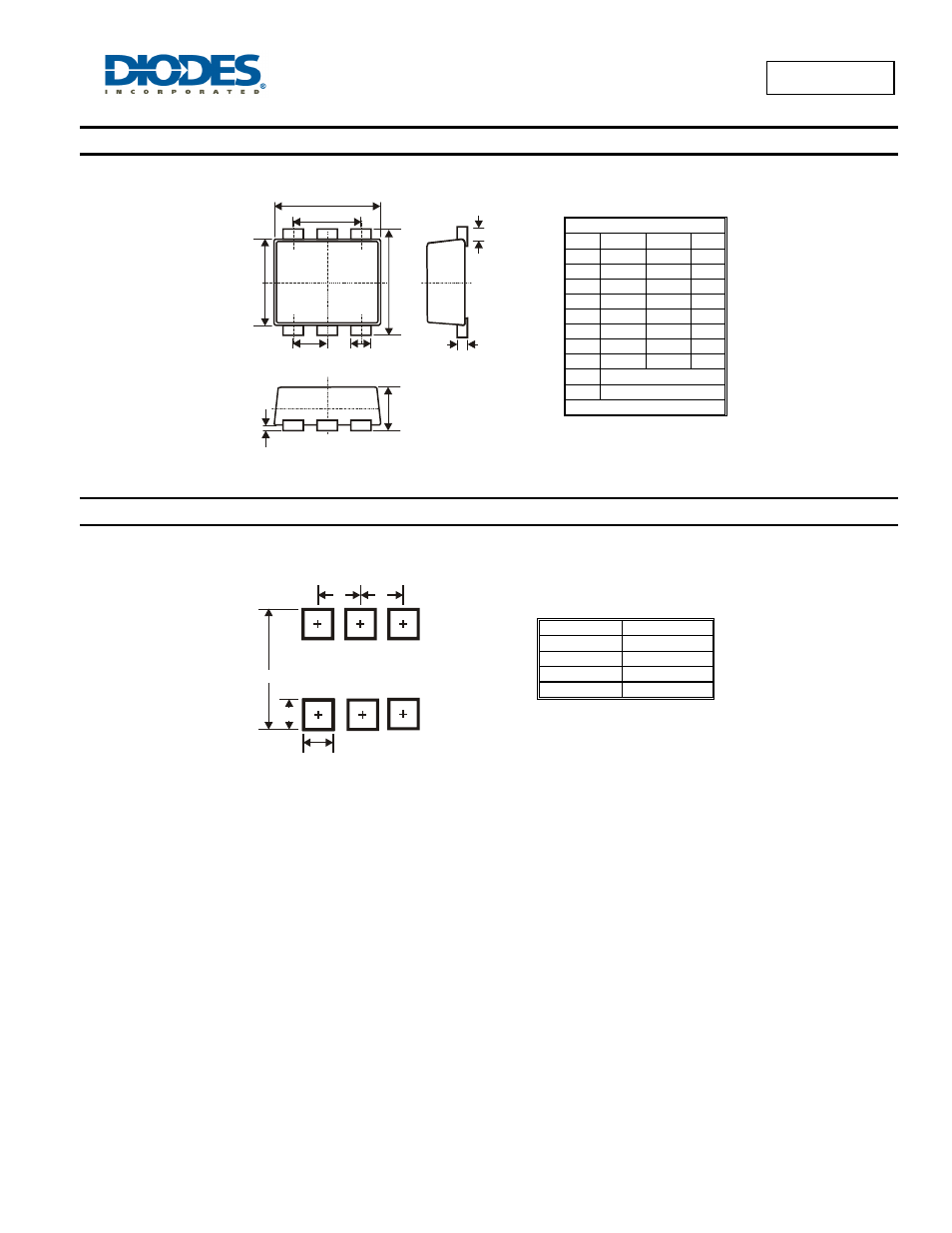

Package Outline Dimensions
Suggest Pad Layout
SOT-963
Dim Min Max Typ
A 0.40 0.50 0.45
A1 0 0.05 -
C 0.120 0.180 0.150
D 0.95 1.05 1.00
E 0.95 1.05 1.00
E1 0.75 0.85 0.80
L 0.05 0.15 0.10
b 0.10 0.20 0.15
e 0.35 Typ
e1 0.70 Typ
All Dimensions in mm
Dimensions Value (in mm)
C 0.350
X 0.200
Y 0.200
Y1 1.100
L
c
E
D
e1
e
E1
b (6 places)
A
A1
Y1
Y (6X)
C C
X (6X)
