DN0150ALP4 / DN0150BLP4
Document number: DS31492 Rev. 5 - 2
1 of 5
www.diodes.com
December 2013
© Diodes Incorporated
DN0150ALP4 / DN0150BLP4
NEW PROD
UC
T
50V NPN SMALL SIGNAL TRANSISTOR IN DFN1006
Features
 Epitaxial Die Construction
 Ultra-Small Leadless Surface Mount Package
 Ultra Low Profile (0.4mm max)
 Complementary PNP Type: DP0150ALP4/DP0150BLP4
 Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
 Case: X2-DFN1006-3
 Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Finish  NiPdAu, Solderable per MIL-STD-202,
Method 208
 Weight: 0.0008 grams (approximate)
Ordering Information
(Note 4)
Product Marking Reel size (inches) Tape width (mm) Quantity per reel
DN0150ALP4-7 T3 7 8 3,000
DN0150ALP4-7B T3 7 8 10,000
DN0150BLP4-7 T4 7 8 3,000
DN0150BLP4-7B T4 7 8 10,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

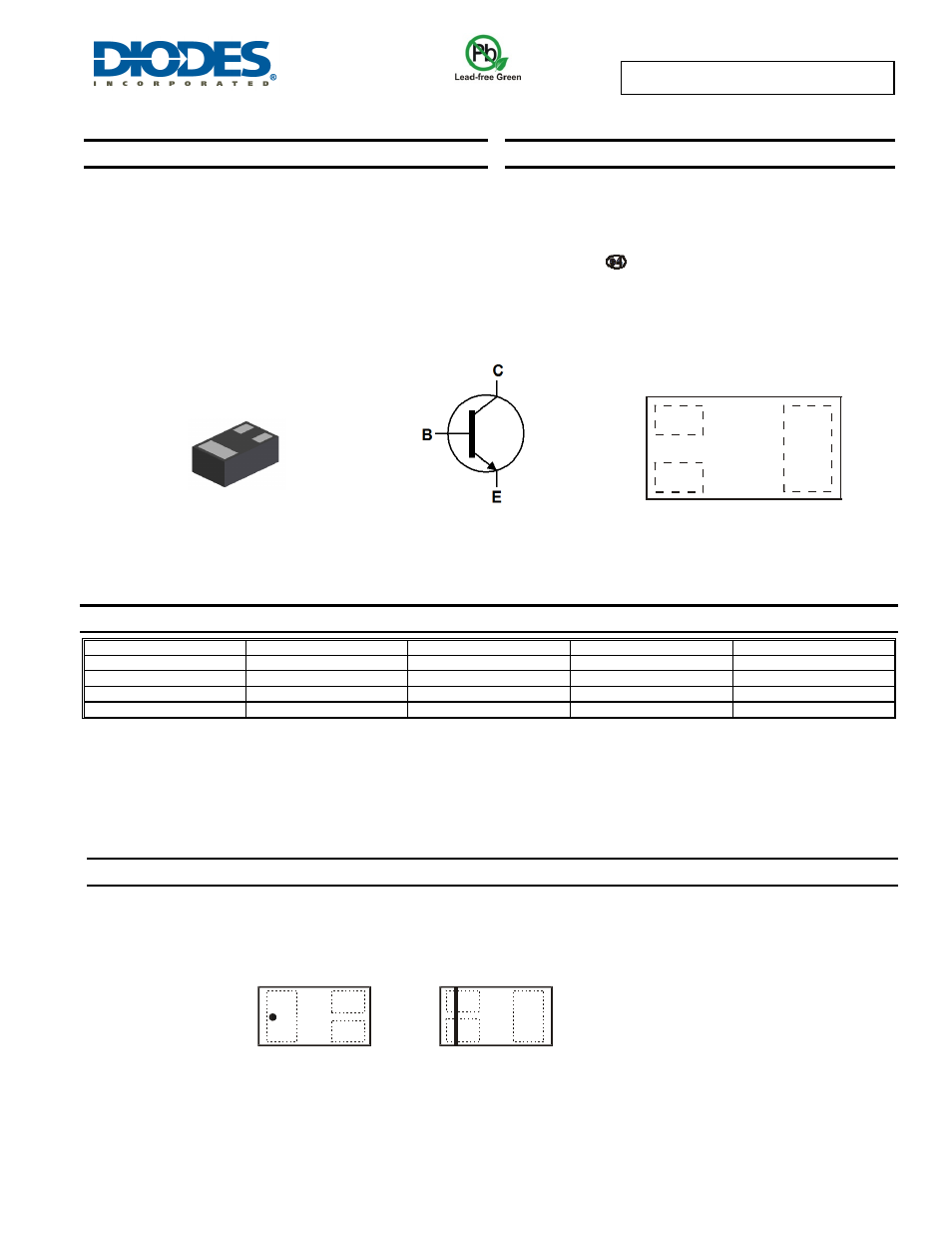

Marking Information
Bottom View
Top View
Pin Configuration
X2-DFN1006-3
Device Symbol
XX = Product Type Marking Code
(See Ordering Information)
DN0150ALP4-7
DN0150BLP4-7 DN0150ALP4-7B
DN0150BLP4-7B
C
E
B
Top View
Bar Denotes Base
and Emitter Side
Top View
Dot Denotes
Collector Side
XX XX
