FZT717

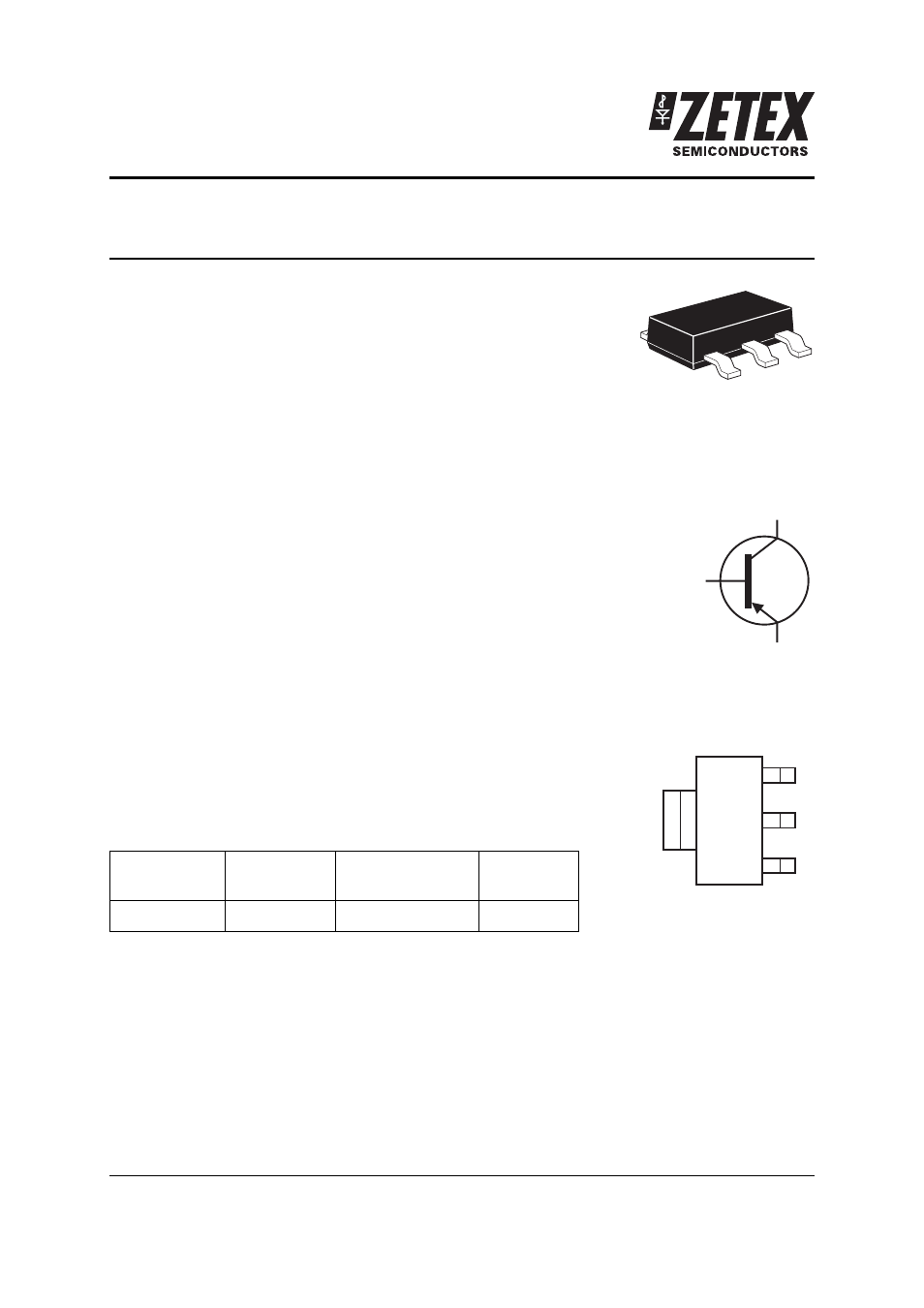

SOT223 PNP medium power transistor
Summary
BV
CEO
= -12V; I
C
= 3A
Description
Packaged in the SOT223 outline this low saturation 12V PNP transistor
offers extremely low on state losses making it ideal for use in DC-DC
circuits and various driving and power management functions.
Features
• 2W power dissipation
• 3A continuous current
• Excellent h
FE
characteristics up to 10A (pulsed)
• Low saturation voltage
Applications
• Battery charging
• MOSFET and IGBT gate driving
• Motor drive
Ordering information
Device marking
FZT717
Device Reel size
(inches)
Tape width
(mm)
Quantity
per reel
FZT717TA 7 12 1,000
C
E
B
C
E
C
B
Pinout - top view
