20V PNP HIGH GAIN TRANSISTOR
PowerDI
®
5
Features
•
43% smaller than SOT223; 60% smaller than TO252
•
Maximum height just 1.1mm
•
Rated up to 1.3W
•
V
CEO
= -20V
•
I
C
= -8A; I
CM
= -15A
•
Low Saturation voltage, high gain transistor
•
Lead, Halogen and Antimony Free, RoHS Compliant (Note 1)
•
“Green” Device (Note 2)
Applications
•
Load disconnect switch
• Battery
charging
Mechanical Data
• Case:
PowerDI
®
5
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish – Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.093 grams (approximate)
Ordering Information
(Note 3)
Part Number
Case
Packaging
DXTP19020DP5-13 PowerDI
®
5
5000/Tape & Reel
Notes:
1. No purposefully added lead. Halogen and Antimony Free.
2. Diodes Inc’s “Green” Policy can be found on our websit
3. For packaging details, go to our website at

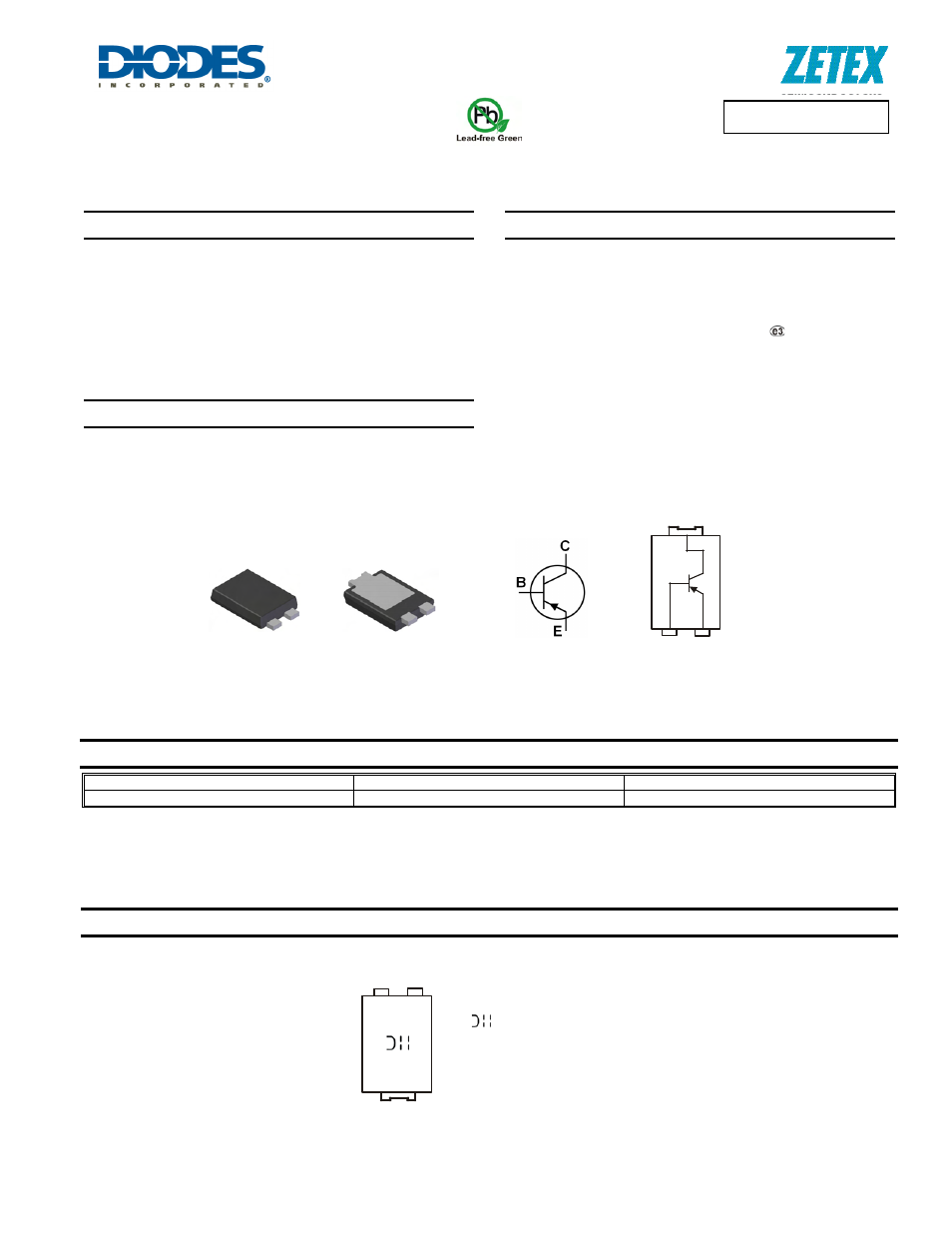

Marking Information
Top View
Bottom View
Pin-out diagram
C
B
E
Device Schematic
DTP1920D = Product Type Marking Code
= Manufacturers’ Code Marking
K = Factory Designator
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 09 for 2009)
WW = Week code (01 to 53)
YYWWK
DTP1920D
