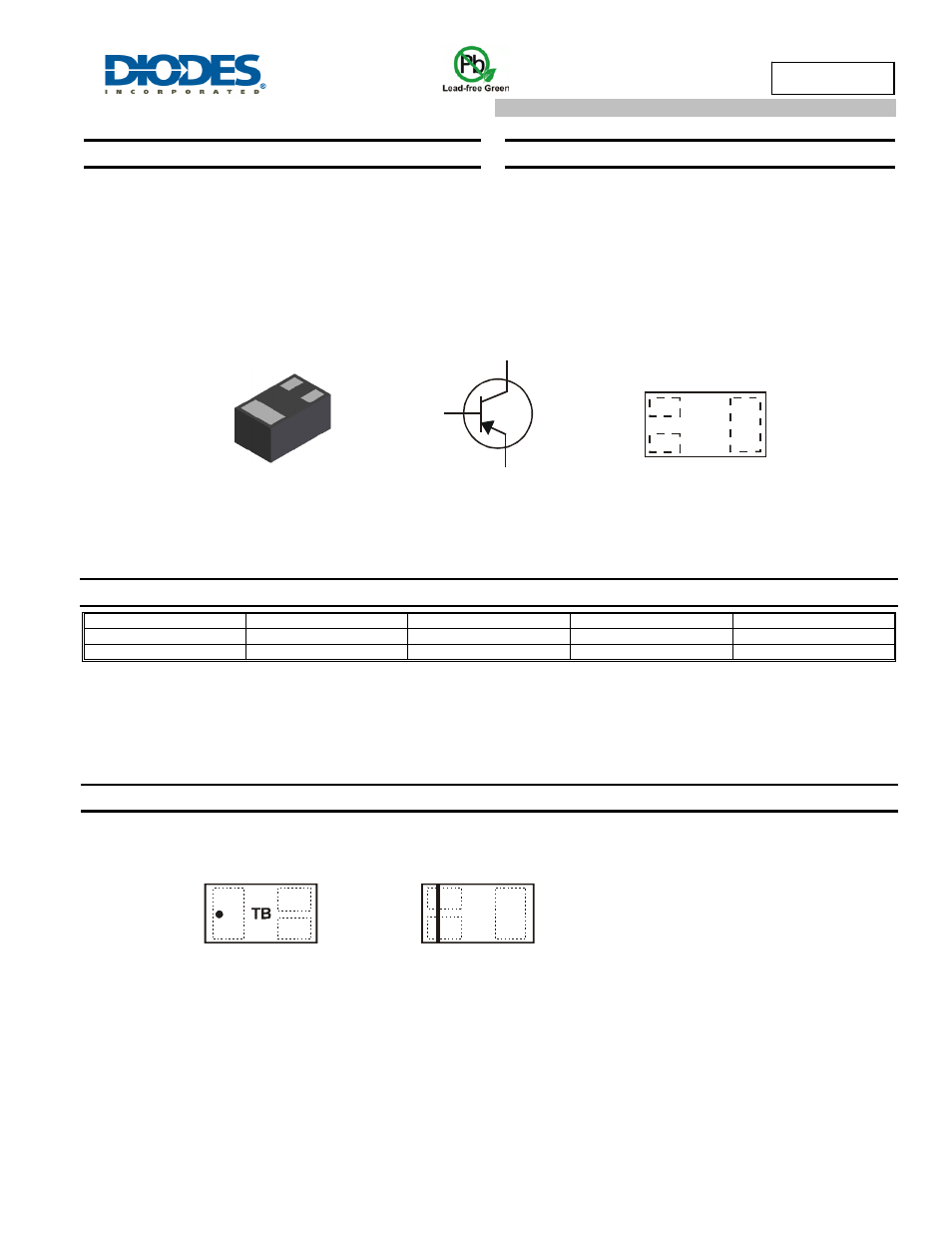

DSS3515M
Document number: DS31819 Rev. 3 - 2
1 of 5
January 2011
© Diodes Incorporated
DSS3515M
15V LOW V
CE(sat)
PNP SURFACE MOUNT TRANSISTOR
Features
•
Low Collector-Emitter Saturation Voltage, V
CE(sat)
•
Ultra-Small Leadless Surface Mount Package
•
ESD: HBM 8kV, MM 400V
•
Complementary NPN Type Available (DSS2515M)
•
“Lead Free”, RoHS Compliant (Note 1)
•
Halogen and Antimony Free. "Green" Device (Note 2)
Mechanical Data
• Case:
DFN1006-3
•
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
• Terminals:
Finish
⎯ NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
•
Weight: 0.0009 grams (Approximate)
Ordering Information
(Note 3)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
DSS3515M-7 TB
7
8
3,000
DSS3515M-7B TB
7
8
10,000
Notes:
1. No purposefully added lead.
2. Diodes Inc's "Green" policy can be found on our w3. For packaging details, go to our website at
Marking Information
Bottom View
Top View
Device Schematic
DFN1006-3
Device Symbol
C
E
B
TB = Product Type Marking Code
C
E
B
TB
Top View
Dot Denotes Collector Side
DSS3515M-7
Top View
Bar Denotes Base and Emitter Side
DSS3515M-7B
