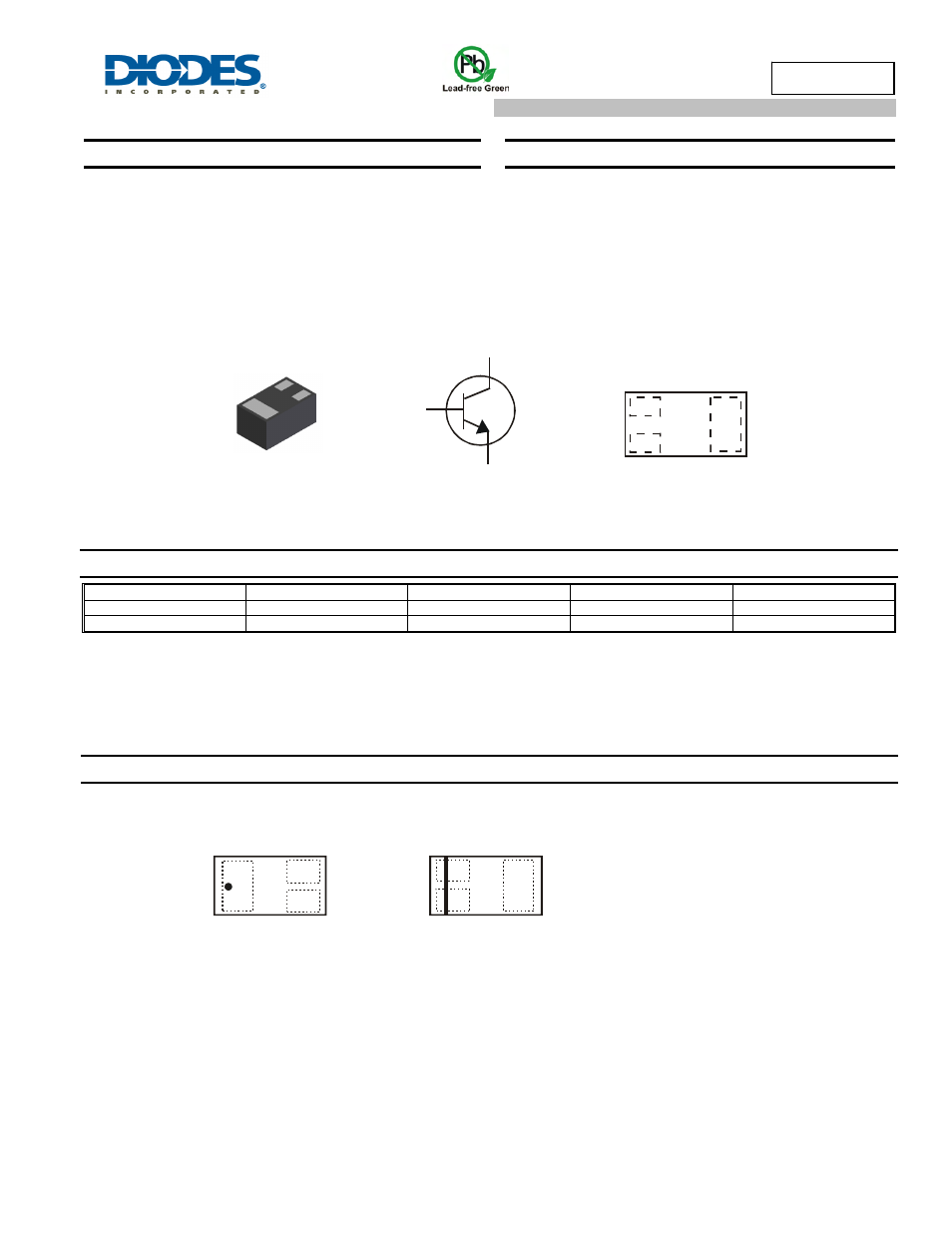

DSS2515M


15V LOW V

CE(sat)

NPN SURFACE MOUNT TRANSISTOR

Features

Low Collector-Emitter Saturation Voltage, V

CE(sat)

Ultra-Small Leadless Surface Mount Package

ESD HBM SKV MM 400V

Complementary PNP Type Available (DSS3515M)

“Lead Free”, RoHS Compliant (Note 1)

Halogen and Antimony Free. "Green" Device (Note 2)

Mechanical Data

• Case:

DFN1006-3

Case Material: Molded Plastic, "Green" Molding Compound. UL
Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

• Terminals:

Finish

⎯ NiPdAu over Copper leadframe. Solderable

per MIL-STD-202, Method 208

Weight: 0.0009 grams (Approximate)


















Ordering Information

(Note 3)

Product

Marking

Reel size (inches)

Tape width (mm)

Quantity per reel

DSS2515M-7

TA 7

8mm

3,000

DSS2515M-7B

TA 7

8mm

10,000

Notes:

1. No purposefully added lead.
2. Diodes Inc's "Green" policy can be found on our website at http://www.diodes.com
3. For packaging details, go to our website at http://www.diodes.com.





Marking Information
























Bottom View

Top View

Device Schematic

C

E

B

Device Symbol

DFN1006-3

C

E

B

TA = Product Type Marking Code

TA

TA

Top View

Dot Denotes Collector Side

DSS2515M-7

Top View

Bar Denotes Base and Emitter Side

DSS2515M-7B
