DSL12AW
Document Number: DS31644 Rev. 2 - 2
1 of 6
February 2011
© Diodes Incorporated
ADVAN
CE I
N
F
O
RM
ATI
O
N
DSL12AW
12V LOW V
CE(sat)
PNP SURFACE MOUNT TRANSISTOR
Features
•
Epitaxial Planar Die Construction
•
Ideal for Low Power Amplification and Switching
•
Ultra Small Surface Mount Package
•
Lead Free, RoHS Compliant (Note 1)
•
Halogen and Antimony Free "Green" Device (Note 2)
•
ESD rating: 400V-MM, 8KV-HBM
Mechanical Data
• Case:
SOT-363
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - Matte Tin annealed over Alloy 42 leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.006 grams (approximate)
Ordering Information
Part Number
Case
Packaging
DSL12AW-7
SOT-363
3000/Tape & Reel
Notes:
1. No purposefully added lead.
2. Diodes Inc's "Green" policy can be found on our w
Marking Information
Date Code Key
Year
2008
2009
2010
2011
2012
2013
2014
2015
Code V W X Y Z A B C
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D

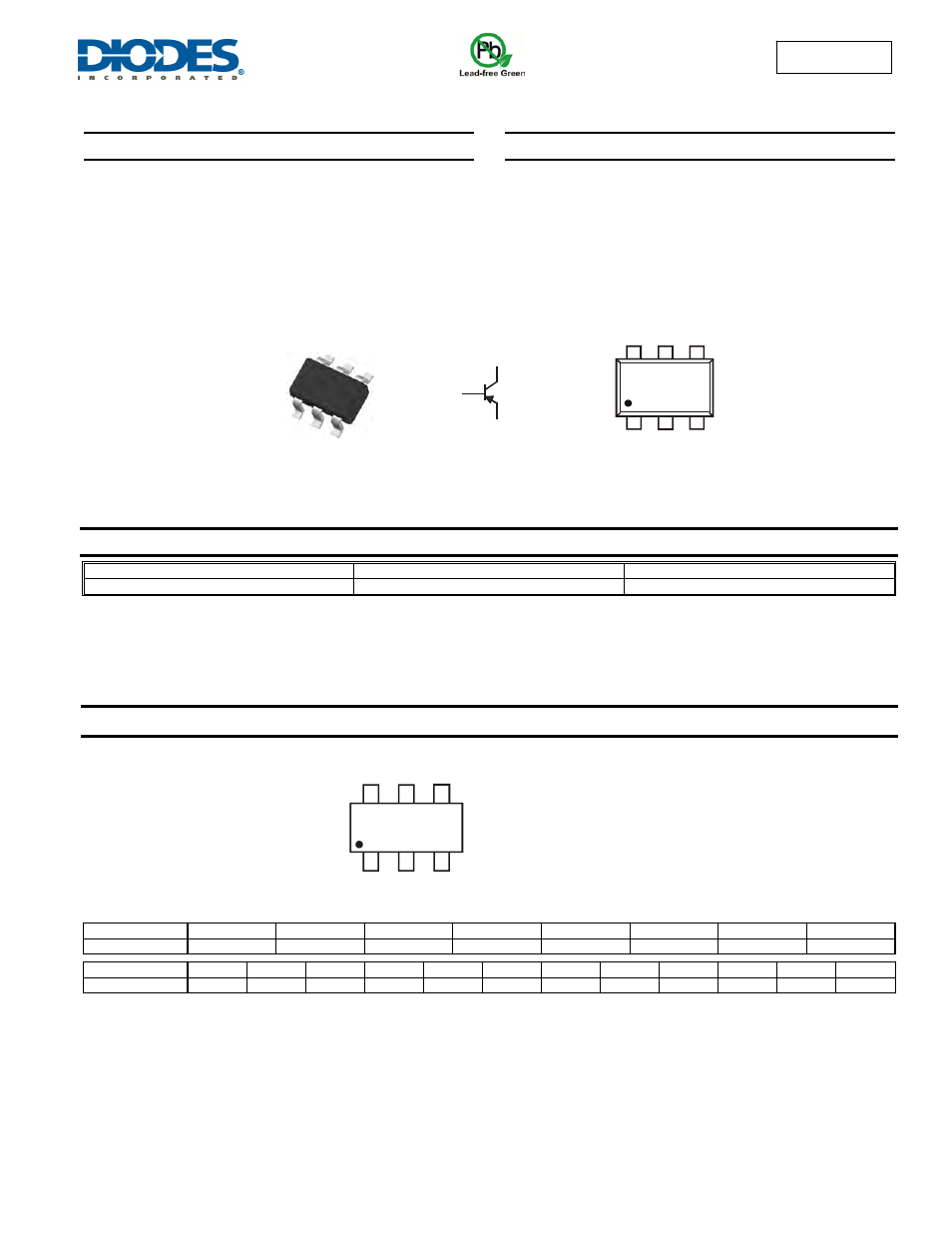

Top View
Top View
Device Schematic
Top View
Pin Out Configuration
1, 2, 5, 6
3
4
1
2
3
6
5
4
ZPB = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: V = 2008)
M = Month (ex: 9 = September)
ZPB
YM
