DZL6V8AXV3
Document number: DS31220 Rev. 6 - 2
1 of 3
www.diodes.com
June 2008
© Diodes Incorporated
DZL6V8AXV3
DUAL SURFACE MOUNT ZENER DIODE
Features
•
Ultra-Small Surface Mount Package
•
Lead Free/RoHS Compliant (Note 3)
•
"Green" Device (Note 4)
ESD Sensitivity Rating
•
IEC61000-4-2, HBM - 16kV, MM - 400V
Mechanical Data
•
Case: SOT-523
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020D
•
Terminals: Solderable per MIL-STD-202, Method 208
•
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
•
Polarity: See Diagram
•
Marking Information: See Page 2
•
Ordering Information: See Page 2
•
Weight: 0.002 grams (approximate)
NEW PRODUCT

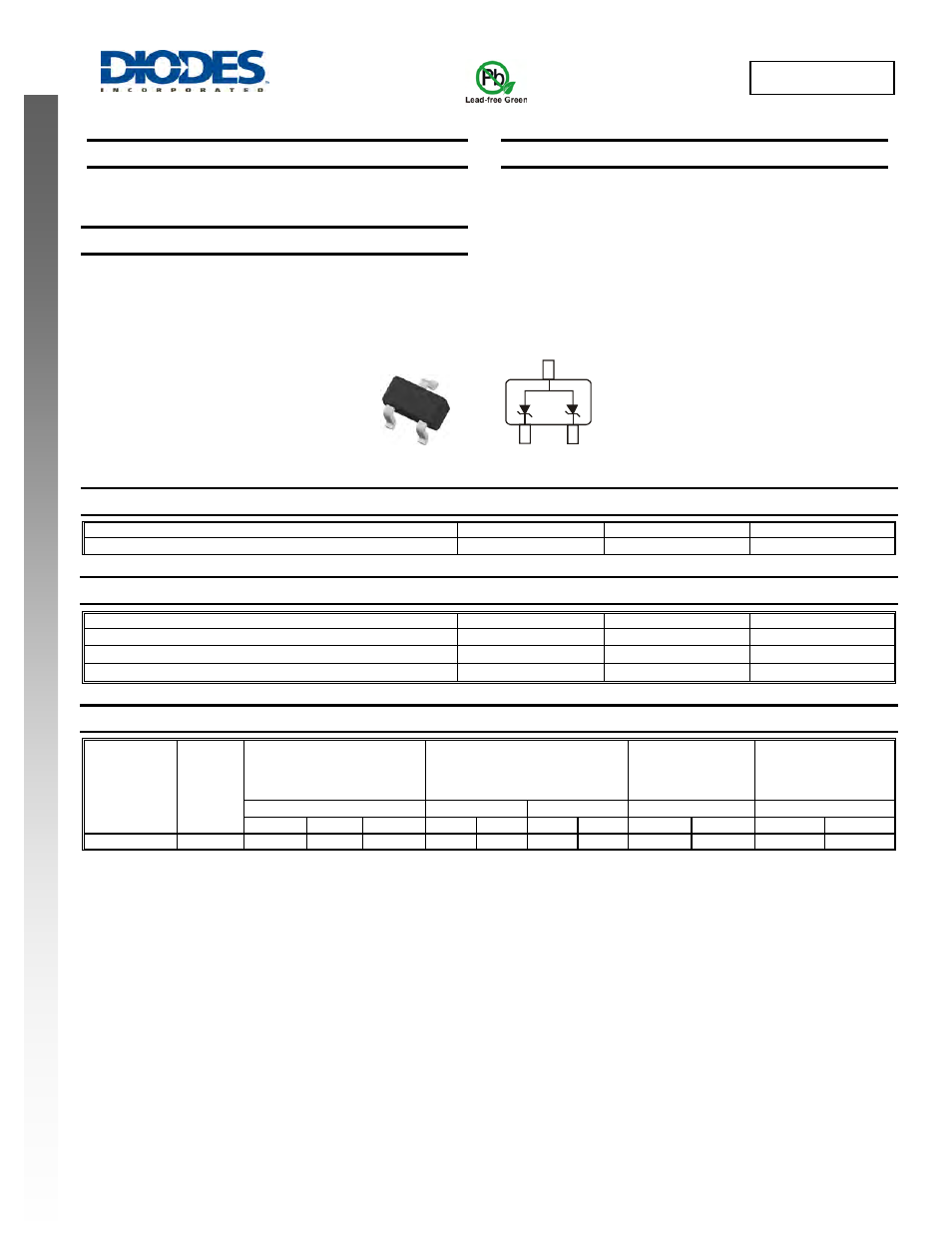

TOP VIEW
Top View
Device Schematic
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic Symbol
Value
Unit
Forward Voltage
@ I
F
= 10mA
V
F
0.9 V
Thermal Characteristics
Characteristic Symbol
Value
Unit
Power Dissipation
P
D
220 mW
Thermal Resistance, Junction to Ambient Air
R
θJA
625 °C/W
Operating and Storage Temperature Range
T
J,
T
STG
-65 to +150
°C
Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Zener Voltage
Range (Note 1)
Maximum Zener Impedance
(Note 2)
Maximum Reverse
Current (Note 1)
Temperature
Coefficient of
Zener Voltage
@ I
ZT
= 5mA
V
Z @
I
ZT
Z
ZT
@ I
ZT
Z
ZK
@
I
ZK
I
R
@ V
R
TC (mV/
°C)
Type
Number
Marking
Code
Nom (V)
Min (V)
Max (V)
Ω
mA
Ω
mA
μA
V Min Max
DZL6V8AXV3
K96 6.8 6.46 7.14 15 5.0 100 1.0 1.0 4.5
1.2
4.5
Notes:
1. Short duration pulse test used to minimize self-heating.
2. f = 1KHz.
3. No purposefully added lead.
4. Diodes Inc.'s "Green" Policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
