DDZ2V4ASF – DDZ39DSF
Document number: DS31987 Rev. 17 - 2
5 of 6
www.diodes.com
March 2012
© Diodes Incorporated
DDZ2V4ASF – DDZ39DSF
NEW PROD
UC
T

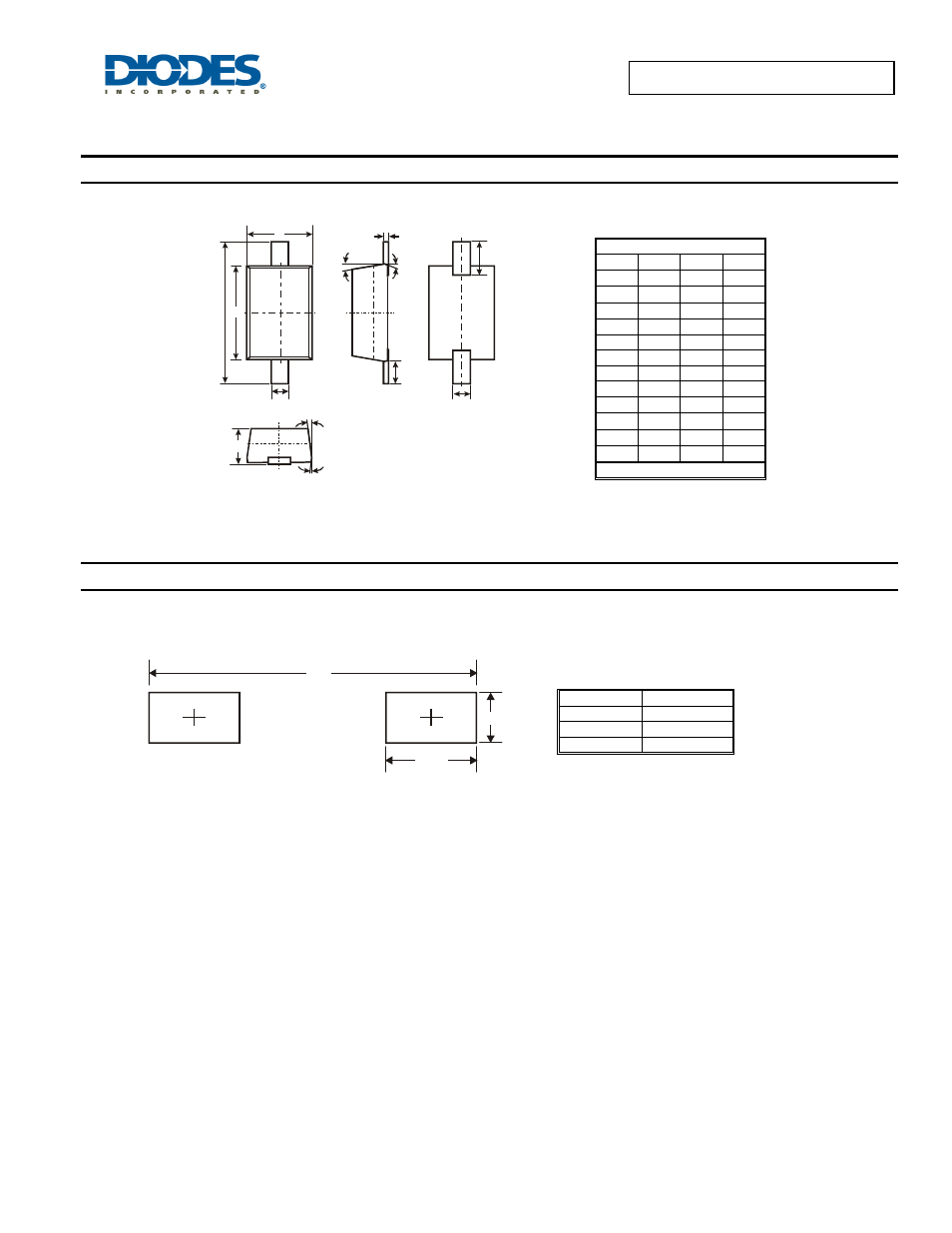

Package Outline Dimensions
Suggested Pad Layout
SOD323F
Dim Min Max Typ
A 0.60 0.75 −
b 0.25 0.35 −
c 0.05 0.26 −
D 1.15 1.35 1.25
E 1.60 1.80 1.70
He 2.30 2.70 2.50
L1 0.30 0.50 0.40
L2 0.41 0.61 0.51
α1 − − 7°
α2 − − 3°
β1 − − 7°
β2 − − 3°
All Dimensions in mm
Dimensions Value (in mm)
X 0.710
X1 2.700
Y 0.403
He E
D
b (2x)
c
L1
α2 α1
A
β2
β1 b (2x)
L2 (2x)
X1
Y (2x)
X (2x)
