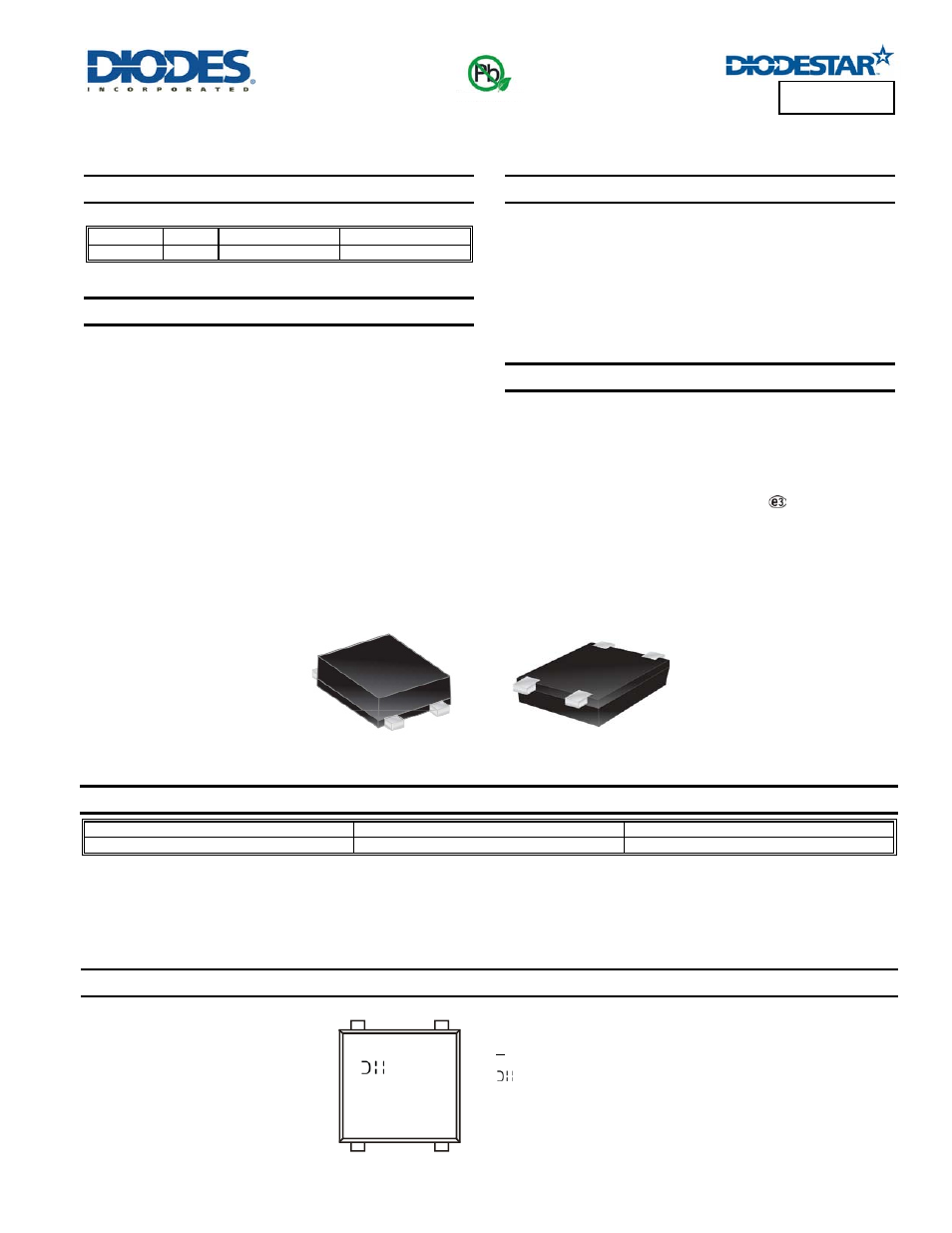

DSRHD10
Document number: DS35961 Rev. 5 - 2
1 of 5
April 2013
© Diodes Incorporated
DSRHD10
ADVANCED INFORMATION
1.0A DSR BRIDGE
DIODESTAR RECTIFIER
Product Summary
Description and Applications
This 1.0A DiodeStar Rectifier has been designed for use in general
purpose rectifier. It is ideally suited for use as a:
Bridge
Rectifier
V
RRM
(V)
I
O
(A) V
F max
(V) @ +25°C
I
R max
(mA) @ +25°C
1000 1.0
1.15V
0.01
Features and Benefits
Low reverse leakage ensuring greater stability at higher
temperatures
Low forward voltage (V
F
) minimises conduction losses and
improving efficiency.
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case:
T-MiniDIP
Case Material: Molded Plastic “Green” Molding Compound,
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin over Copper Lead Frame,
Solderable per MIL-STD-202, Method 208
Polarity: See Diagram
Weight: 0.092 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DSRHD10-13
T-MiniDIP
5000/Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http”
Marking Information
DXX = Product Type Marking Code,
(XX = 11 or 1A)
= Manufacturers’ Code Marking
YWW = Date Code Marking
Y = Last Digit of Year (ex: 2 = 2012)
WW = Week Code (01 ~ 53)
Bottom View
T-MiniDIP
Top View
Green
_
+
~
~
YWW
D11
_
