MBR20200CT / MBRF20200CT
Document number: DS36513 Rev. 5 - 2
1 of 4
www.diodes.com
December 2013
© Diodes Incorporated

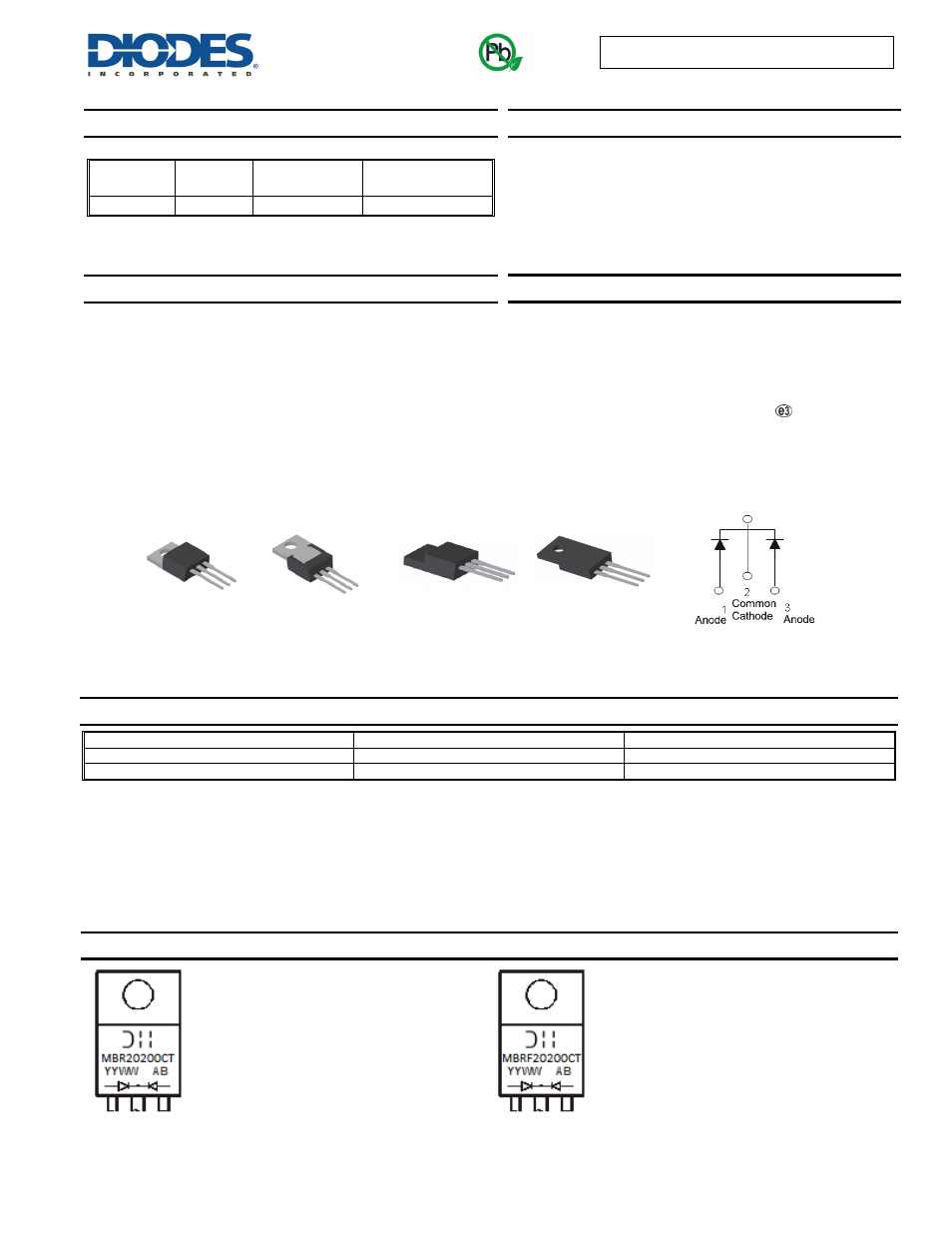

MBR20200CT / MBRF20200CT
20A SCHOTTKY BARRIER RECTIFIER
Product Summary
MBR20200CT / MBRF20200CT (Per Leg)
Description and Applications
This Schottky Barrier Rectifier has been designed to meet the
general requirements of commercial applications. It is ideally suited for
use as:
 Polarity Protection Diode
 Re-Circulating Diode
 Switching Diode
V
RRM
(V) I
O
(A)
V
F (MAX)
(V)
@ +25°C
I
R (MAX)
(mA)
@ +25°C
200 10 0.89 0.1
Features and Benefits
 Guard Ring Die Construction for Transient Protection.
 High Surge Current Capability.
 Low Forward Voltage Drop.
 Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
 Case: TO-220AB, ITO-220AB
 Case Material: Molded Plastic, “Green” Molding compound. UL
Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Finish - Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
 Polarity: See Below
 Weight: TO-220AB – 1.95 grams (approximate)
ITO-220AB – 1.69 grams (approximate)
Ordering Information
(Notes 4)
Part Number Case Packaging
MBR20200CT-LJ TO-220AB (Type C) 50 pieces/tube
MBRF20200CT-LJ ITO-220AB (TO220F-3) 50 pieces/tube
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
TO-220AB
Top View
ITO-220AB
Top View
Package Pin Out
Configuration
TO-220AB
Bottom View
ITO-220AB
Bottom View
MBRF20200CT = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 13 = 2013)
WW = Week (01 - 53)
MBR20200CT = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 13 = 2013)
WW = Week (01 - 53)
Green
