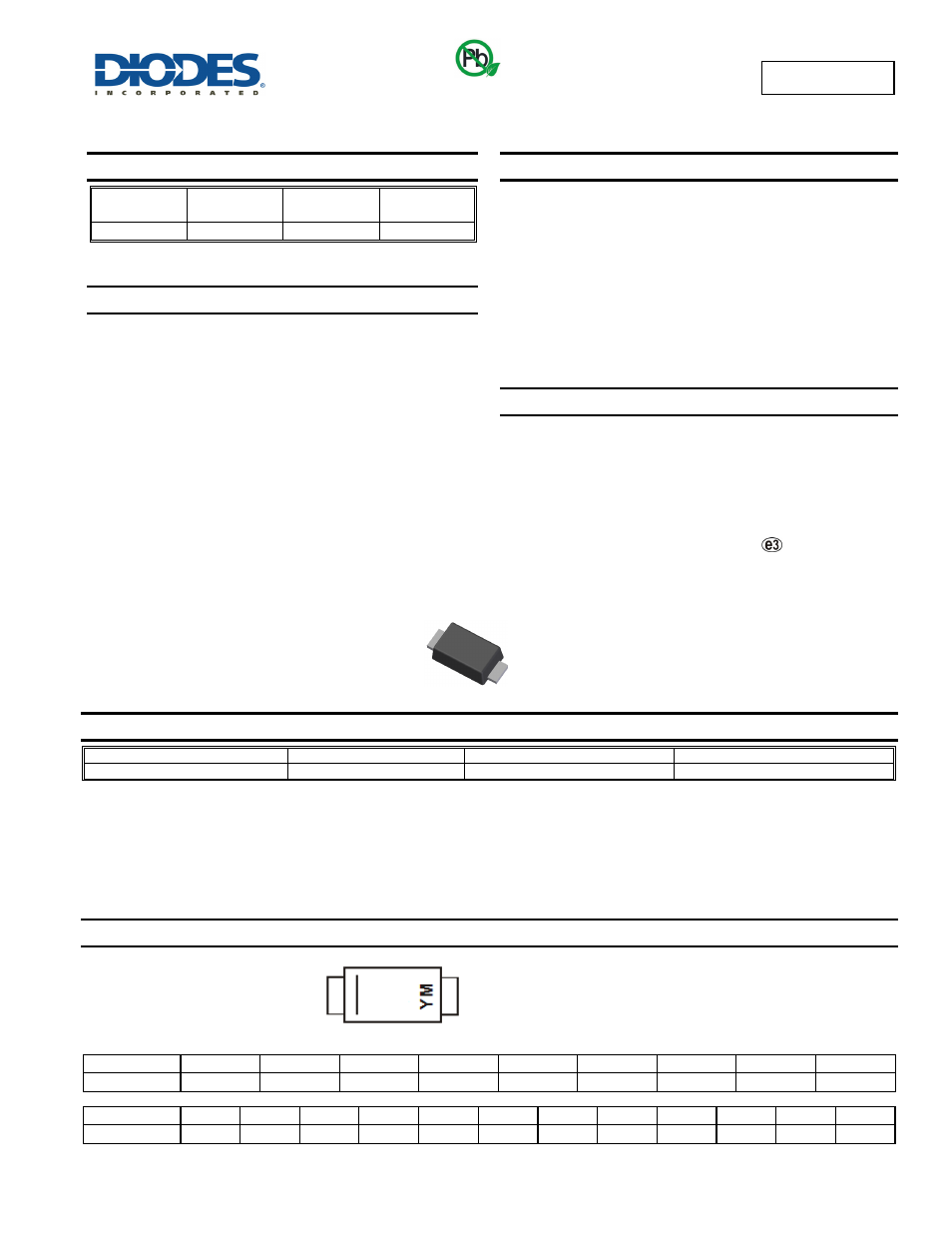

DFLS230Q
2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
PowerDI
®
123
Product Summary
V
R
(V) I
F
(A)
V
F MAX
(V)
@ +25°C
I
R MAX
(mA)
@ +25°C
30 2.0 0.49 1.0
Description and Applications
This Schottky Barrier Rectifier has been designed to meet the
stringent requirements of Automotive Applications. It is ideally suited
to use as :
•
Polarity Protection Diode
• Re-circulating
Diode
• Switching
Diode
Features
•
Ultra-Small Surface Mount Package
•
Low Power Loss, High Efficiency
•
Patented Interlocking Clip Design for High Surge Current
•
Capacity
•
Low Forward Voltage Drop
•
Guard Ring Die Construction for Transient Protection
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
•
PPAP Capable (Note 4)
Mechnical Data
•
Case: PowerDI 123
•
Case Material: Molded Plastic, "Green" Molding Compound.
•
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: Cathode Band
•
Terminals: Finish – Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.01 grams (approximate)
Ordering Information
(Note 5)
Part Number
Compliance Case
Packaging
DFLS230Q-7
Automotive PowerDI
®
123
3000/Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q10x qualified and are PPAP capable. Automotive, AEC-Q10x and standard products are electrically and thermally
the same, except where specified. For more information, please refer to
Marking Information
Date Code Key
Year
2014
2015
2016
2017
2018
2019
2020
2021
2022
Code
B
C
D
E
F
G
H
I
J
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Top View
F01A = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: B = 2014)
M = Month (ex: 9 = September)
F01A
Green
