MBR1030 – MBR1050
10A SCHOTTKY BARRIER RECTIFIER
Features
Guard Ring Die Construction for Transient Protection
Low Power Loss, High Efficiency
High Surge Capability
High Current Capability and Low Forward Voltage Drop
For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Application
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Mechanical Data
Case:
TO-220AC
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish – Tin. Solderable per MIL-STD-202,
Method 208
Polarity: See Diagram
Marking: Type Number
Weight: 2.24 grams (approximate)
Ordering Information
(Note 3)
Part Number
Case
Packaging
MBR10xx* TO-220AC 50/Tube
* xx = Device type, e.g. MBR1045
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. For packaging details, go to our website at
Marking Information
Pb
MBR10xx = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 13 = 2013)
WW = Week (01 - 53)
MBR10xx
YYWW AB

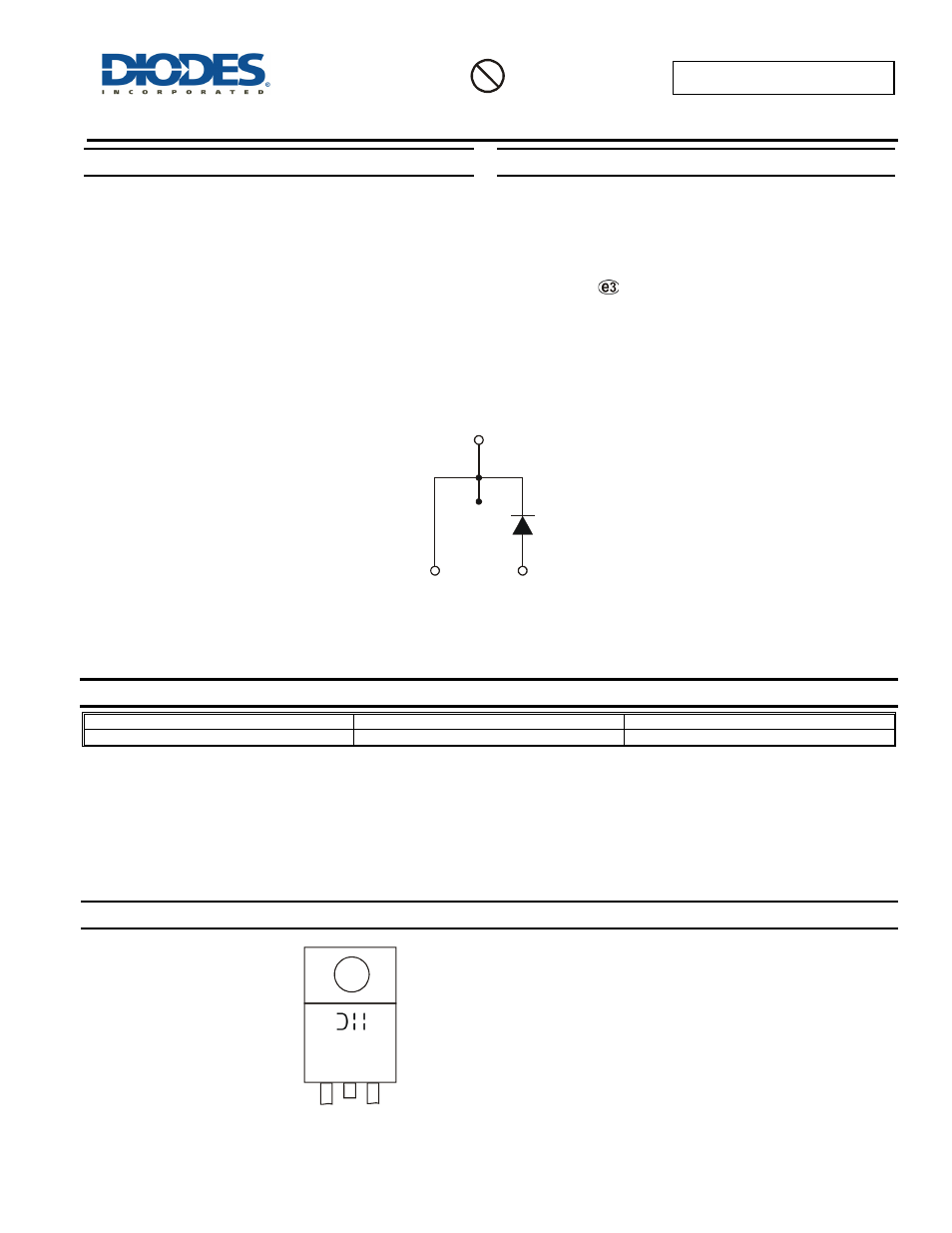

Package Pin Out
Configuration
Base
Cathode
Cathode
Anode
1
3
1
