Diodes MBR1530CT - MBR1560CT - Manual

DS23013 Rev. 9 - 2 1 of 3 MBR1530CT - MBR1560CT
www.diodes.com
ã
Diodes Incorporated

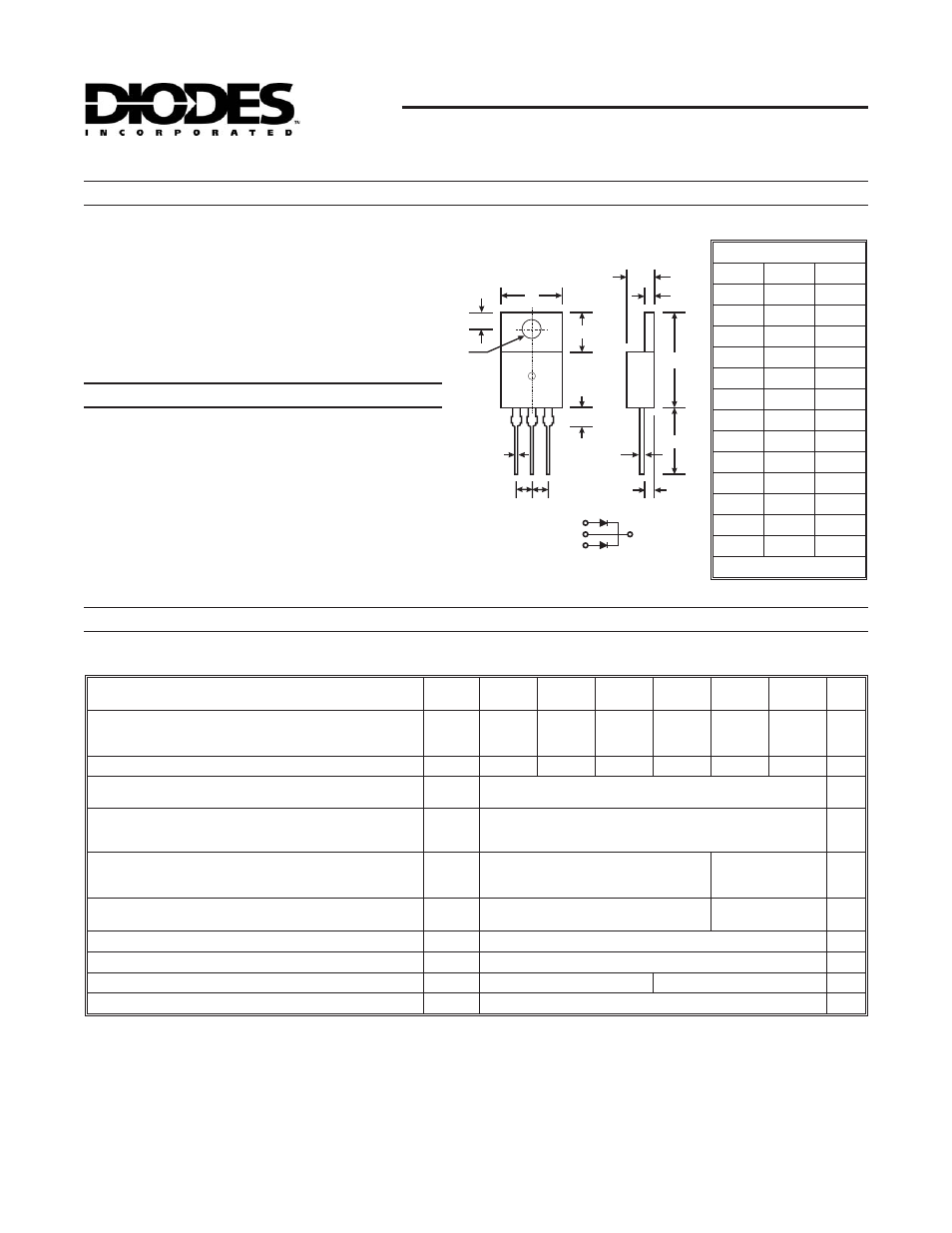

MBR1530CT - MBR1560CT
15A SCHOTTKY BARRIER RECTIFIER
Features
L
M
A
N
P
D
E
K
C
B
G
1 2 3
J
H H
Pin 1
Pin 3
Pin 2
Case
Maximum Ratings and Electrical Characteristics @ T
A
= 25 °C unless otherwise specified
·
Schottky Barrier Chip
·
Guard Ring Die Construction for
Transient Protection
·
Low Power Loss, High Efficiency
·
High Surge Capability
·
High Current Capability and Low Forward Voltage Drop
·
For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Applications
·
Lead Free Finish, RoHS Compliant (Note 3)
Mechanical Data
·
Case: TO-220AB
·
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
·
Moisture Sensitivity: Level 1 per J-STD-020C
·
Terminals: Finish – Bright Tin. Solderable per
MIL-STD-202, Method 208
·
Polarity: As Marked on Body
·
Marking: Type Number
·
Weight: 2.24 grams (approx.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic Symbol
MBR
1530CT
MBR
1535CT
MBR
1540CT
MBR
1545CT
MBR
1550CT
MBR
1560CT
Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage V
RRM
V
RWM
V
R
30 35 40 45 50 60 V
RMS Reverse Voltage V
R(RMS) 21 24.5 28 31.5 35 42 V
Average Rectified Output Current @ T
C
= 125 °C
(Note 1)
I
O 15 A
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave superimposed on rated load
(JEDEC Method)
I FSM 150 A
Forward Voltage Drop @ I
F
= 15A, T
C
= 125 °C
@ I
F
= 7.5A, T
C
= 125 °C
@ I
F
= 15A, T
C
= 25 °C
V FM
0.72
0.57
0.84 0.80
0.65
0.90
V
Peak Reverse Current @ T
C
= 25 °C
at Rated DC Blocking Voltage @ T
C
= 125 °C
I
RM
0.1
15
1.0
50
mA
Typical Total Capacitance (Note 2) C
T 300 pF
Typical Thermal Resistance Junction to Case (Note 1) R qJc 1.7 °C/W
Voltage Rate of Change (Rated V
R
) dV/dt 1000 10,000 V/ ms
Operating and Storage Temperature Range T
j,
T
STG -65 to +150 °C
Notes: 1. Thermal resistance junction to case mounted on heatsink. a
2. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
3. RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see
EU Directive Annex Notes 5 and 7.
TO-220AB
Dim Min Max
A 14.48 15.75
B 10.00 10.40
C 2.54 3.43
D 5.90 6.40
E 2.80 3.93
G 12.70 14.27
H 2.40 2.70
J 0.69 0.93
K 3.54 3.78
L 4.07 4.82
M 1.15 1.39
N 0.30 0.50
P 2.04 2.79
All Dimensions in mm
