BAT750
Ordering Information
(Note 5)
Part Number Case Packaging
BAT750-7-F SOT-23 3000/Tape & Reel
Notes: 5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
xxx
YM
xxx = Product Type Marking Code (K77 or K79)
YM = Date Code Marking
Y = Year ex: N = 2002
M = Month ex: 9 = September
Date Code Key
BAT750
Document number: DS30216 Rev. 12 - 2
3 of 3
www.diodes.com
June 2008
© Diodes Incorporated
Year 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012
Code M N P R S T U V W X Y Z
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D

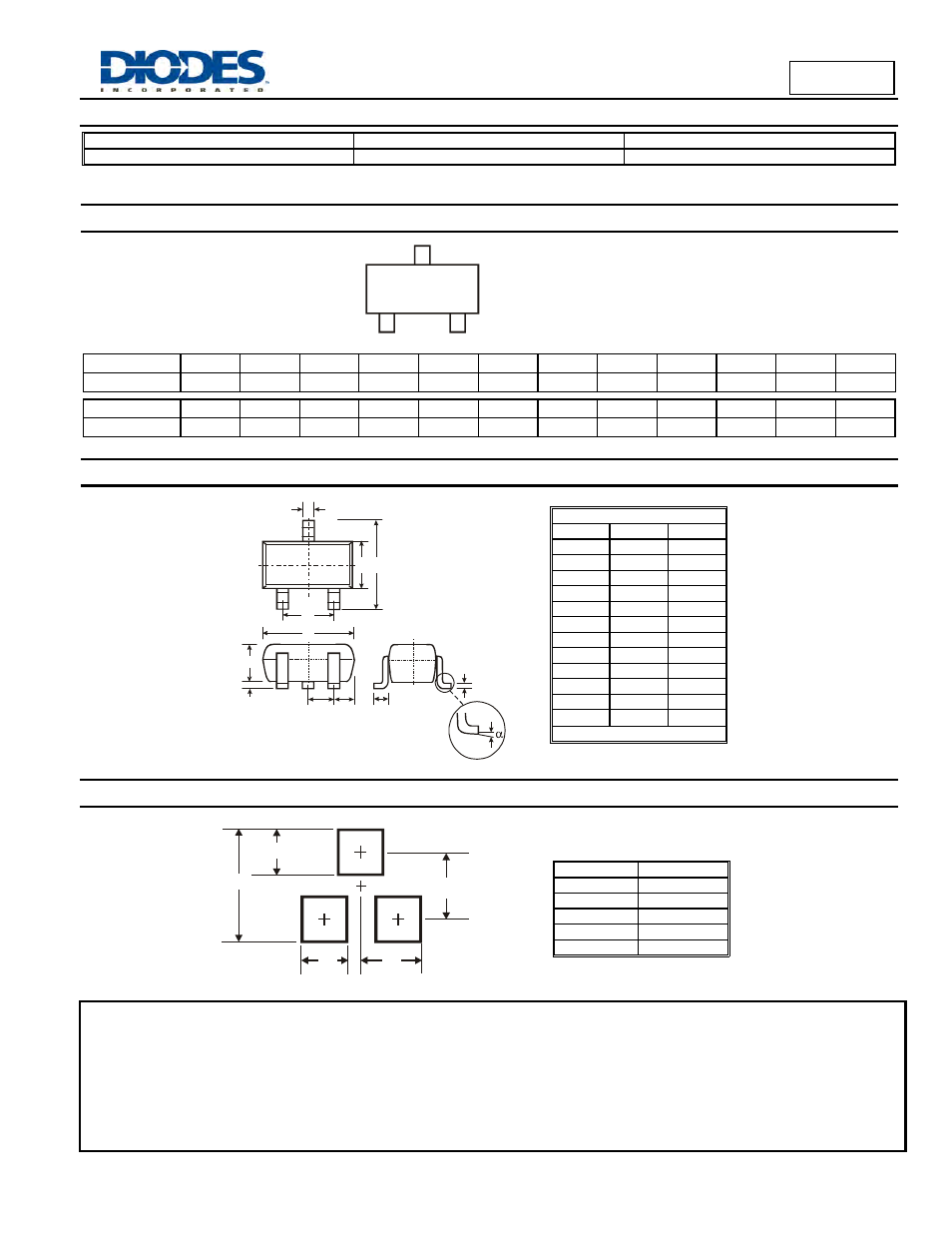

Package Outline Dimensions
Suggested Pad Layout
IMPORTANT NOTICE
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product
described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall
assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,
harmless against all damages.
LIFE SUPPORT
Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written
approval of the President of Diodes Incorporated.
A
M
J
L D F
B C
H
K
G
SOT-23
Dim Min Max
A 0.37 0.51
B 1.20 1.40
C 2.30 2.50
D 0.89 1.03
F 0.45 0.60
G 1.78 2.05
H 2.80 3.00
J 0.013 0.10
K 0.903 1.10
L 0.45 0.61
M 0.085 0.180
α 0° 8°
All Dimensions in mm
X E
Y
C
Z
Dimensions Value (in mm)
Z 2.9
X 0.8
Y 0.9
C 2.0
E 1.35
