74LVCE1G32
SINGLE 2 INPUT POSITIVE OR GATE
74LVCE1G32
Document number: DS32214 Rev. 2 - 2
1 of 14
December 2010
© Diodes Incorporated
NEW PROD
UC
T
Description
The 74LVCE1G32 is a single 2-input positive OR gate with a
standard totem pole output. The device is designed for
operation with a power supply range of 1.4V to 5.5V. The
inputs are tolerant to 5.5V allowing this device to be used in a
mixed voltage environment. The device is fully specified for
partial power down applications using I
OFF
. The I
OFF
circuitry
disables the output preventing damaging current backflow
when the device is powered down.
The gate performs the positive Boolean function:
B
A
Y
+
=
or
B
A
Y
•
=
Features
• Extended Supply Voltage Range from 1.4 to 5.5V
• Switching speed characterized for operation at 1.5V
• Offers 30% speed improvement over LVC at 1.8V.
• ± 24mA Output Drive at 3.3V
• CMOS low power consumption
• IOFF Supports Partial-Power-Down Mode Operation
• Inputs accept up to 5.5V
• ESD Protection Tested per JESD 22
Exceeds 200-V Machine Model (A115-A)
Exceeds 2000-V Human Body Model (A114-A)
• Latch-Up Exceeds 100mA per JESD 78, Class II
• Range of Package Options
• Direct Interface with TTL Levels
• SOT25, SOT353, and DFN1410: Assembled with “Green”
Molding Compound (no Br, Sb)
• Lead Free Finish/ RoHS Compliant (Note 1)

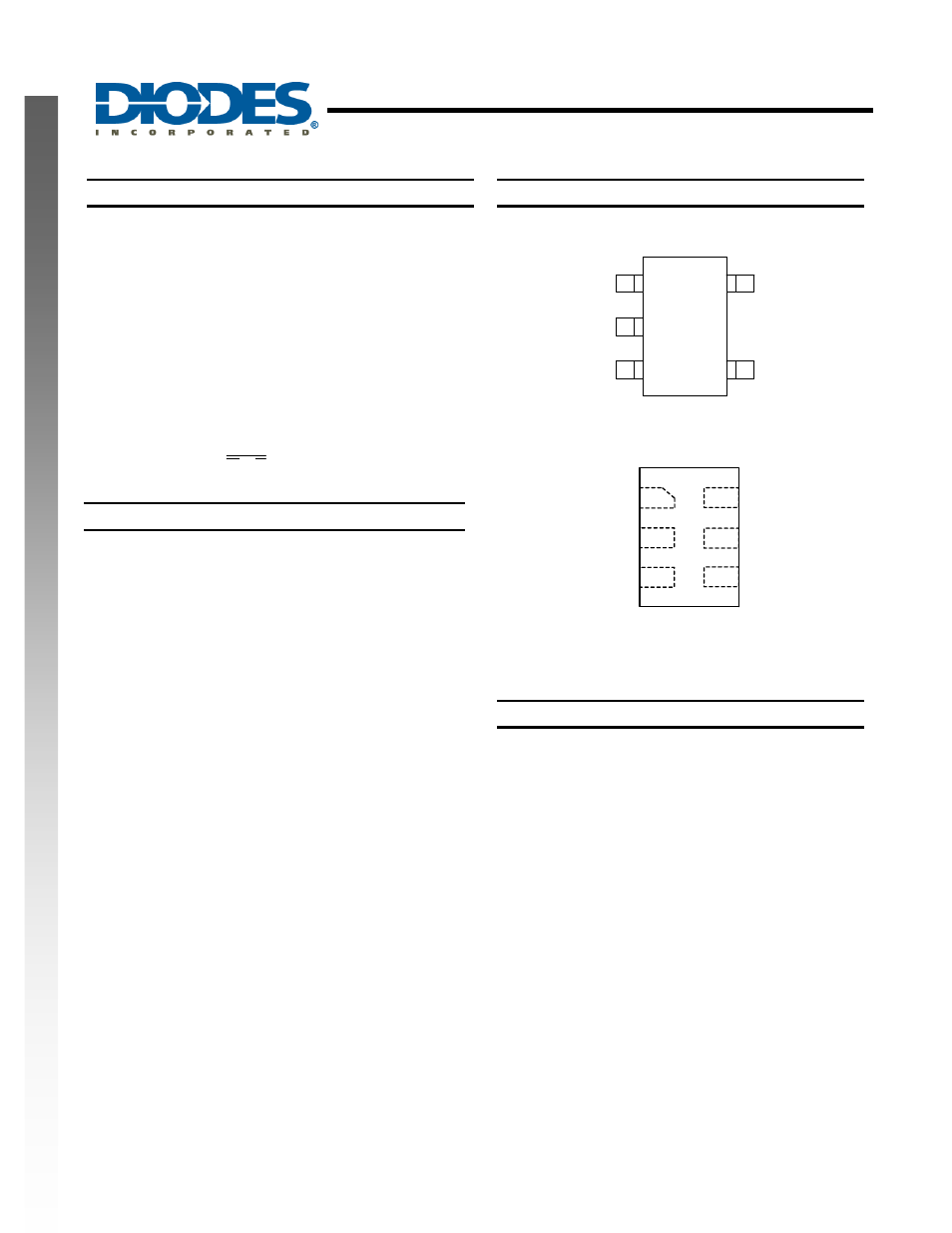

Pin Assignments
SOT25 / SOT353
A
GND
Y
Vcc
(Top View)
5
4
3
2
1
B
2
3
(Top View)
DFN1410 (Note 2)
A
B
GND
Y
Vcc
NC
4
6
5
1
Applications
• Voltage
Level
Shifting
• Bus Driver / Repeater
• Power Down Signal Isolation
• General Purpose Logic
• Wide array of products such as.
o
PCs, networking, notebooks, netbooks, PDAs
o
Computer peripherals, hard drives, CD/DVD ROM
o
TV, DVD, DVR, set top box
o
Cell Phones, Personal Navigation / GPS
o
MP3 players ,Cameras, Video Recorders
Notes: 1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at
2. Pin 2 and pin 5 of the DFN1410 package are internally connected.
