74LVC1G32
Document number: DS32200 Rev. 7 - 2
2 of 15
March 2014
© Diodes Incorporated
NEW PROD
UC
T
74LVC1G32
Ordering Information
74 LVC1G 32 XXX -7
Logic Device
Function Package
Packing
74 : Logic Prefix
32 : 2-Input
W5 : SOT25
-7 : 7” Tape & Reel
LVC : 1.65 to 5.5 V
OR Gate
SE : SOT353
Logic Family
Z : SOT553
1G : One Gate
FS3 : X2-DFN0808-4
FW5 :
X1-DFN1010-6
FW4
:X2-DFN1010-6
FX4 : X2- DFN1409-6
FZ4 : X2- DFN1410-6
Notes:
4. Pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at
5. The taping orientation is located on our website at
Pin Descriptions
Pin Name
Description
A Data
Input
B Data
Input
GND Ground
Y Data
Output
V
CC
Supply Voltage
NC No
Connection

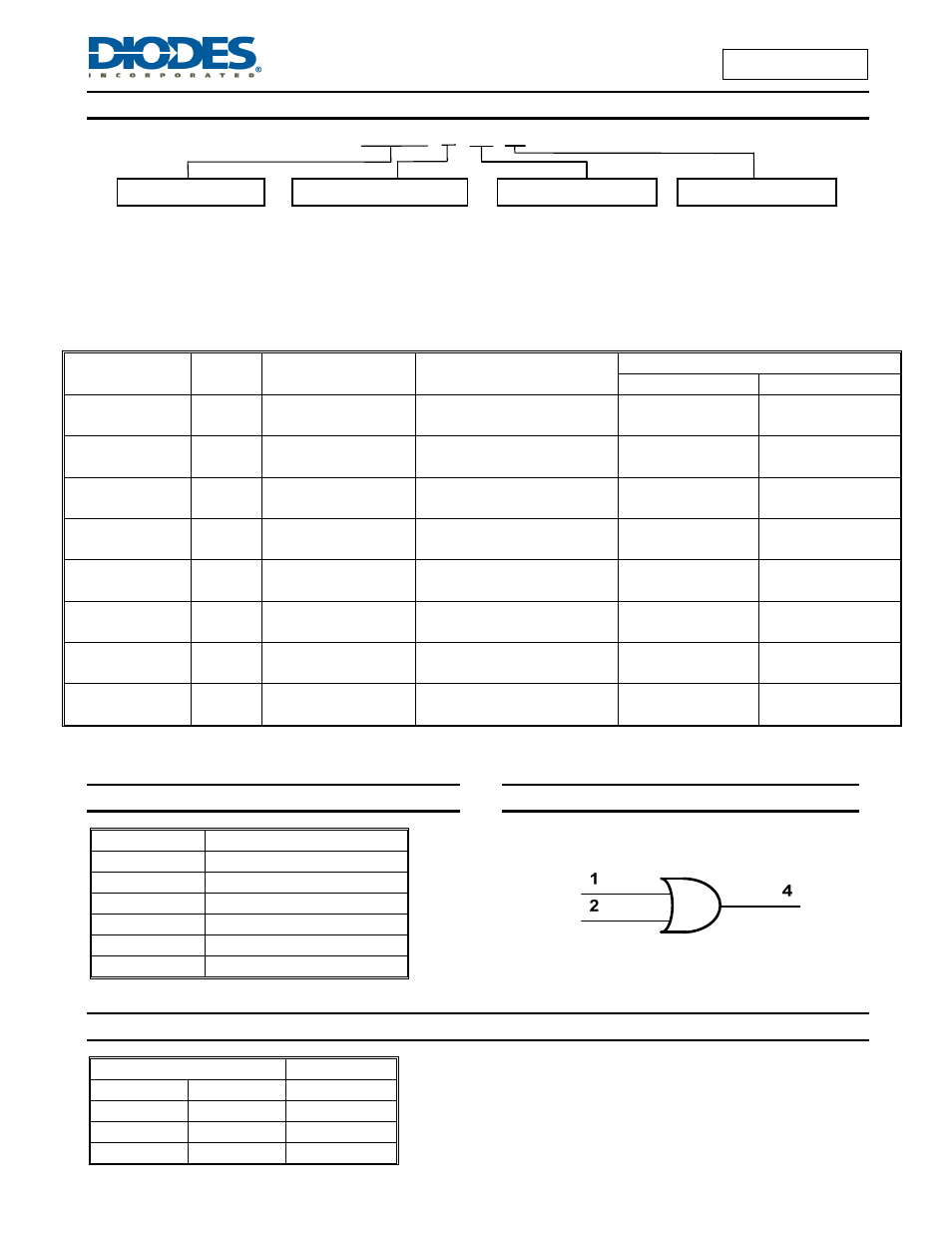

Logic Diagram
Function Table
Inputs Output
A B Y
H X H
X H H
L L L
Device
Package
Code
Package
(Notes 4, 5)
Package
Size
7” Tape and Reel
Quantity
Part Number Suffix
74LVC1G32W5-7
W5
SOT25
3.0mm X 2.8mm X 1.2mm
0.95 mm lead pitch
3000/Tape & Reel
-7
74LVC1G32SE-7
SE
SOT353
2.0mm X 2.0mm X 1.1mm
0.65 mm lead pitch
3000/Tape & Reel
-7
74LVC1G32Z-7 Z
SOT553
1.6mm X 1.6 mm X 0.62mm
0.5 mm lead pitch
4000/Tape & Reel
-7
74LVC1G32FS3-7
FS3
X2-DFN0808-4
0.9mm X 0.9 mm X 0.35mm
0.5 mm pad pitch (diamond)
5000/Tape & Reel
-7
74LVC1G32FW5-7
(Future Product)
FW5
X1-DFN1010-6
(Future Product)
1.0mm X 1.0mm X 0.5mm
0.35 mm pad pitch
5000/Tape & Reel
-7
74LVC1G32FW4-7 FW4
X2-DFN1010-6
1.0mm X 1.0mm X 0.4mm
0.35 mm pad pitch
5000/Tape & Reel
-7
74LVC1G32FX4-7 FX4
X2-DFN1409-6
(Chip scale alternative)
1.4mm X 0.9mm X 0.4mm
0.5 mm pad pitch
5000/Tape & Reel
-7
74LVC1G32FZ4-7 FZ4 X2-DFN1410-6
1.4mm X 1.0mm X 0.4mm
0.5 mm pad pitch
5000/Tape & Reel
-7
