74AUP1G04
Document number: DS35147 Rev. 2 - 2
9 of 14
July 2013
© Diodes Incorporated
74AUP1G04

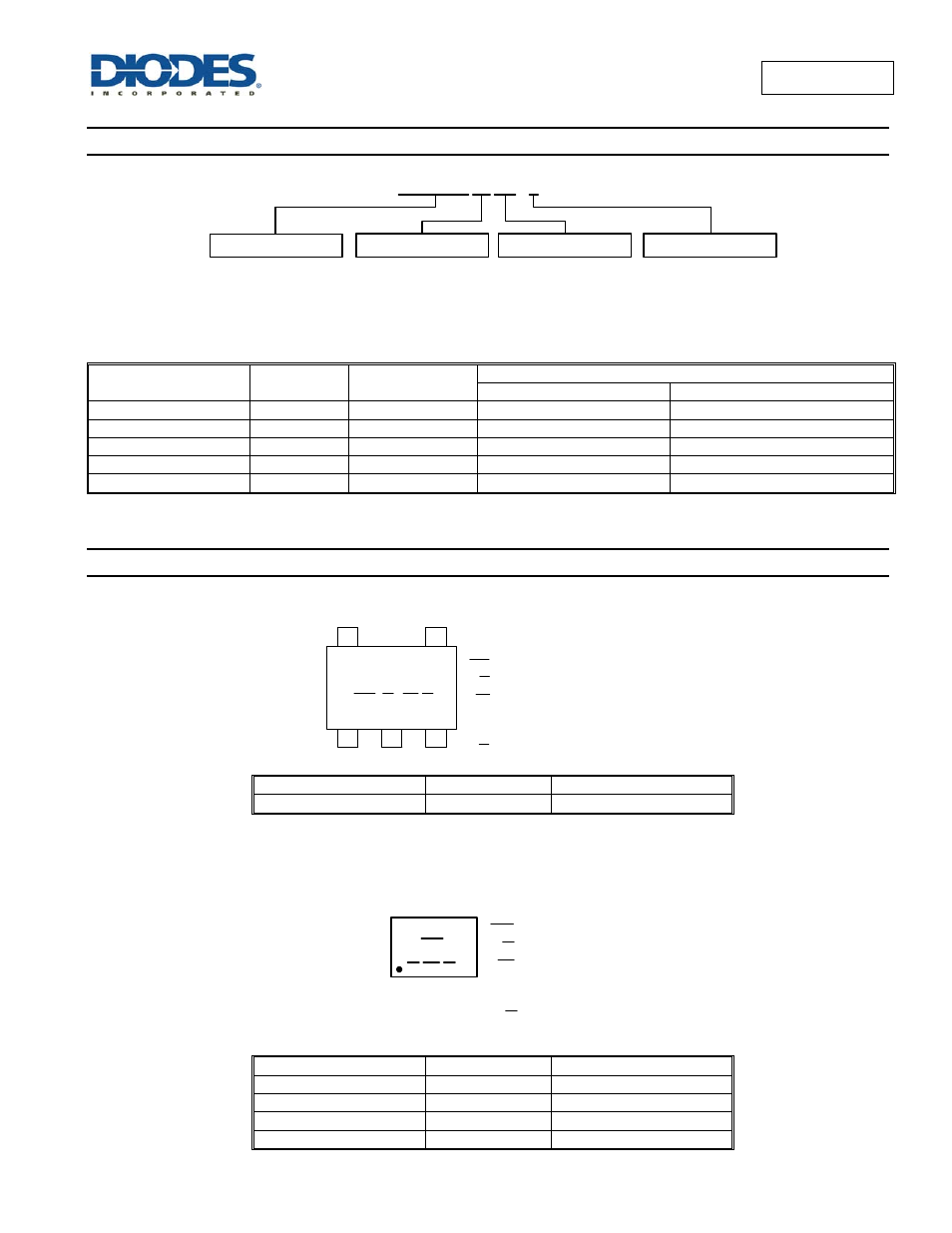

Ordering Information
74AUP1G 04 XX - 7
Function
Package
7 : Tape & Reel
Packing
04 : 1-Input
Inverter -Gate
Logic Device
74 : Logic Prefix
AUP : 0.8 V to 3.6 V
Logic Family
1G : One gate
:
SE
SOT353
: X2-DFN0808-4
X2-DFN1010-6
:
FS3
FW4
: X2-DFN1409-6
X2-DFN1410-6
:
FX4
FZ4
Device Package
Code
Packaging
7” Tape and Reel (Note 7)
Quantity
Part Number Suffix
74AUP1G04SE-7
SE
SOT353
3000/Tape & Reel
-7
74AUP1G04FS3-7**
FS3
X2-DFN0808-4
5000/Tape & Reel
-7
74AUP1G04FW4-7
FW4
X2-DFN1010-6
5000/Tape & Reel
-7
74AUP1G04FX4-7**
FX4
X2-DFN1409-6
5000/Tape & Reel
-7
74AUP1G04FZ4-7
FZ4
X2-DFN1410-6
5000/Tape & Reel
-7
Notes: 7. The taping orientation is located on our website at ** Future Products – Contact your Diodes sales representative for availability.
Marking Information
(1) SOT353
1
2
3
5
7
4
XX Y W X
XX : Identification code
W : Week : A~Z : 1~26 week;
X : A~Z : Internal code
(Top View)
Y : Year 0~9
a~z : 27~52 week; z represents
52 and 53 week
Part Number
Package
Identification Code
74AUP1G04SE SOT353
XK
(2) X2-DFN0808-4, X2-DFN1010-6 X2-DFN1409-6 and X2-DFN1410-6
Y : Year : 0~9
(Top View)
X : A~Z : Internal code
Y W X
XX
XX : Identification Code
W : Week : A~Z : 1~26 week;
a~z : 27~52 week; z represents
52 and 53 week
Part Number
Package
Identification Code
74AUP1G04FS3 X2-DFN0808-4
YK
74AUP1G04FW4 X2-DFN1010-6
XK
74AUP1G04FX4 X2-DFN1409-6
HC
74AUP1G04FZ4 X2-DFN1410-6
XK
