74AUP1G02
SINGLE 2 INPUT POSITIVE NOR GATE
Description
The Advanced Ultra Low Power (AUP) CMOS logic family is designed
for low power and extended battery life in portable applications.
The 74AUP1G02 is a single 2-input positive NOR gate with a
standard push-pull output designed for operation over a power supply
range of 0.8V to 3.6V. The device is fully specified for partial power
down applications using I
OFF
. The I
OFF
circuitry disables the output
preventing damaging current backflow when the device is powered
down. The gate performs the positive Boolean function:
B
A
Y
or
B
A
Y
Features
Advanced Ultra Low Power (AUP) CMOS
Supply Voltage Range from 0.8V to 3.6V
±4mA Output Drive at 3.0V
Low Static power consumption
I
CC
< 0.9µA
Low Dynamic Power Consumption
C
PD
= 6.4pF (Typical at 3.6V)
Schmitt Trigger Action at All Inputs Make the Circuit Tolerant for
Slower Input Rise and Fall Time. The hysteresis is typically
250 mV at Vcc = 3.0V
I
OFF
Supports Partial-Power-Down Mode Operation
ESD Protection Exceeds JESD 22
2000-V Human Body Model (A114-A)
Exceeds 1000-V Charged Device Model (C101C)
Latch-Up Exceeds 100mA per JESD 78, Class II
Leadless packages named per JESD30E
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)

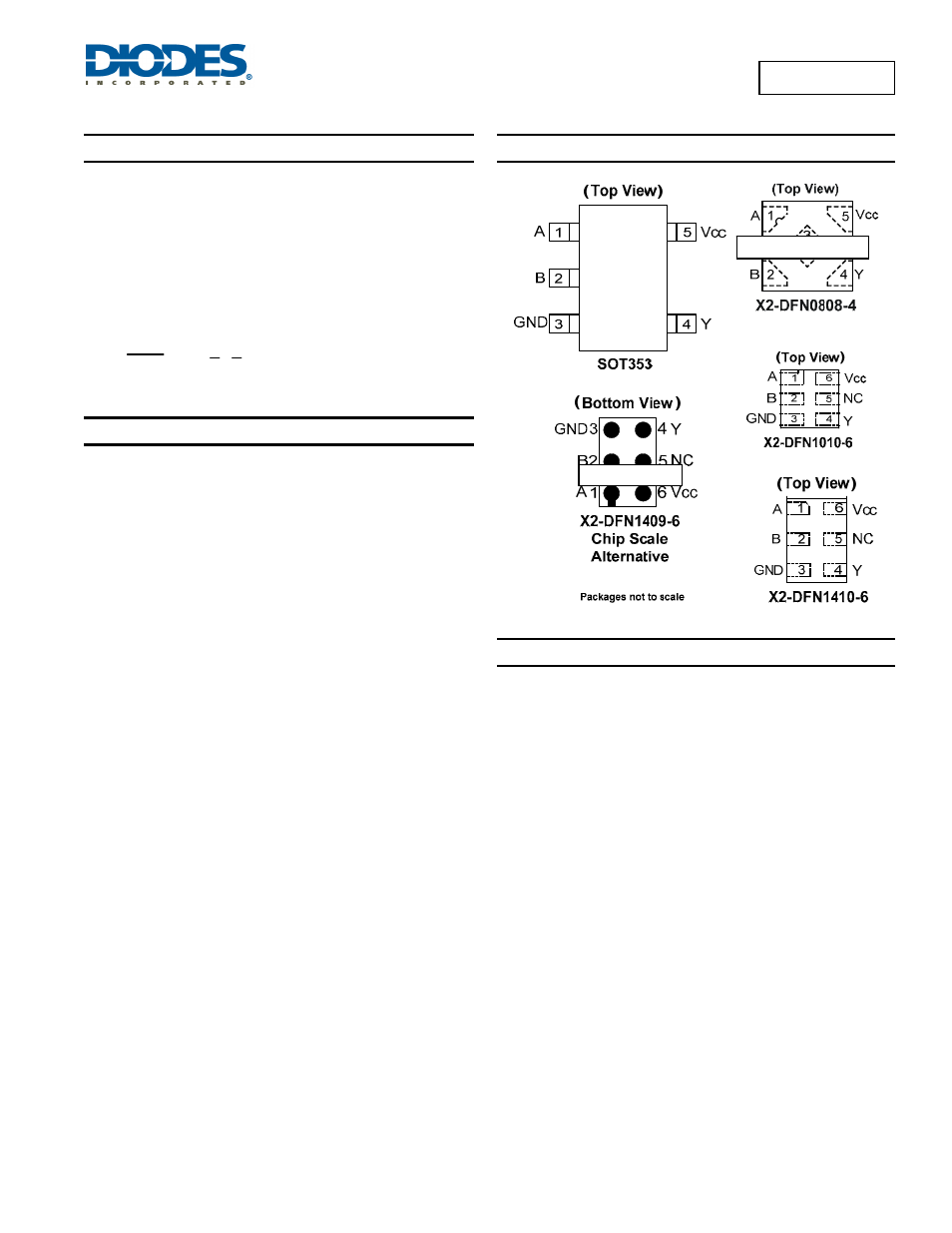

Pin Assignments
Applications
Suited for battery and low power needs
Wide array of products such as:
Tablets,
E-readers
Cell Phones, Personal Navigation / GPS
MP3 players ,Cameras, Video Recorders
PCs ultrabooks, notebooks, netbooks,
Computer peripherals, hard drives, CD/DVD ROM
TV, DVD, DVR, set top box
