74AHCT1G32
SINGLE 2 INPUT POSITIVE OR GATE
74AHCT1G32
Document number: DS35184 Rev. 1 - 2
1 of 8
May 2011
© Diodes Incorporated
NEW PROD
UC
T
Description
The 74AHCT1G32 is a single 2-input positive OR gate with a
standard totem pole output. The device is designed for
operation with a power supply range of 4.5V to 5.5V. The
gate performs the positive Boolean function:
B
A
Y
+
=
or
B
A
Y
•
=

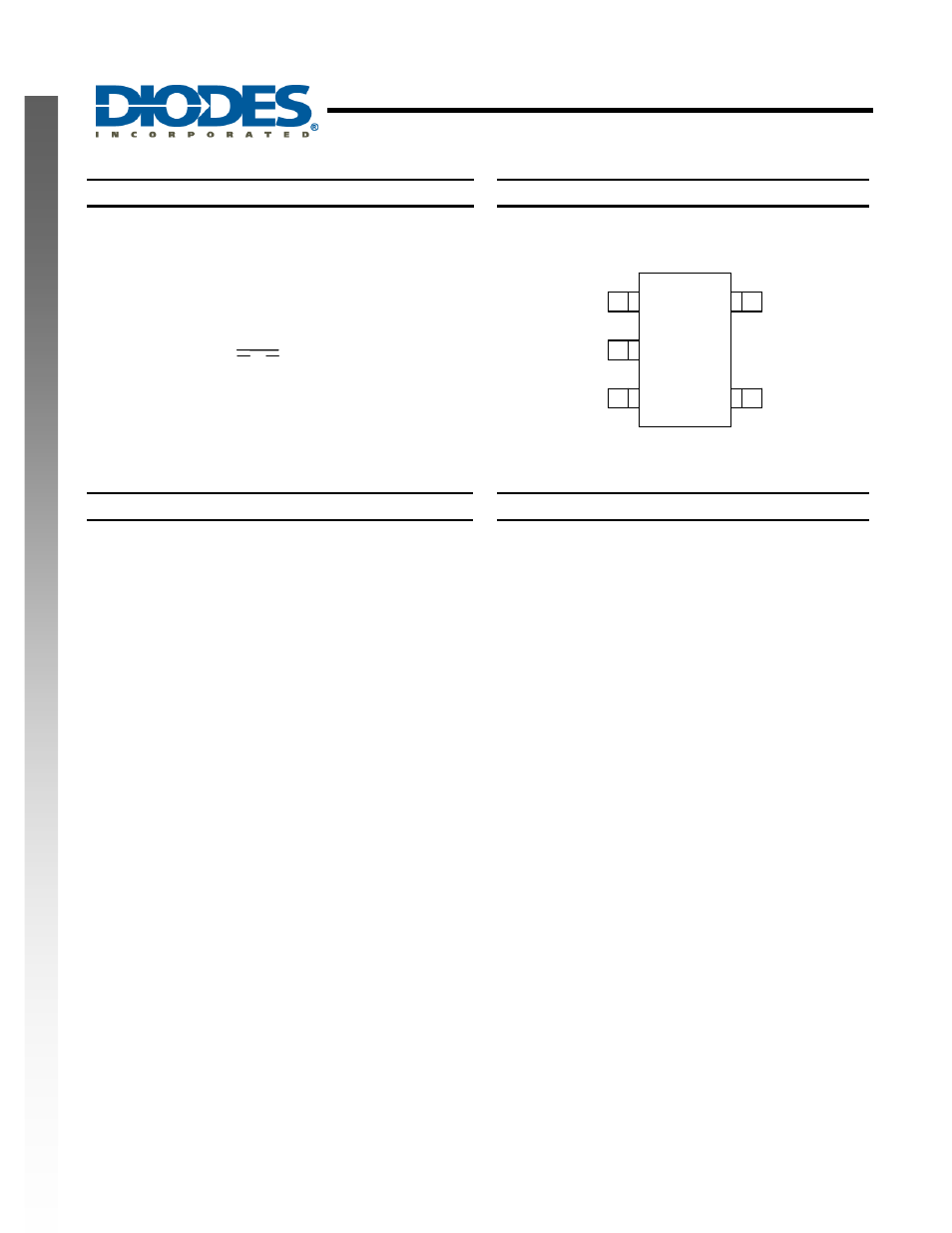

Pin Assignments
SOT25 / SOT353
A
GND
Y
Vcc
(Top View)
5
4
3
2
1
B
Features
•
Supply Voltage Range from 4.5V to 5.5V
•
± 8 mA Output Drive at 5.0 V
•
CMOS low power consumption
•
Schmitt Trigger Action at All Inputs Make the Circuit
Tolerant for Slower Input Rise and Fall Time.
•
ESD Protection per JESD 22
o
Exceeds 200-V Machine Model (A115-A)
o
Exceeds 2000-V Human Body Model (A114-A)
o
Exceeds 1000-V Charged Device Model (C101C)
•
Latch-Up Exceeds 100mA per JESD 78, Class II
•
SOT25 and SOT353: Assembled with “Green” Molding
Compound (no Br, Sb)
•
Lead Free Finish / RoHS Compliant (Note 1)
Applications
•
General Purpose Logic
•
Wide array of products such as:
o
PCs, networking, notebooks, netbooks, PDAs
o
Computer peripherals, hard drives, CD/DVD ROM
o
TV, DVD, DVR, set top box
o
Phones,
Personal
Navigation / GPS
o
MP3 players ,Cameras, Video Recorders
Notes: 1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at
