74LV05A
Document number: DS35659 Rev. 1 - 2
2 of 9
www.diodes.com
October 2013
© Diodes Incorporated
Preliminary
74LV05A
NEW PROD
UC
T
Pin Descriptions
Pin Number Pin Name Description
1 1A Data Input
2 1Y Data Output
3 2A Data Input
4 2Y Data Output
5 3A Data Input
6 3Y Data Output
7 GND Ground
8 4Y Data Output
9 4A Data Input
10 5Y Data Output
11 5A Data Input
12 6Y Data Output
13 6A Data Input
14 Vcc Supply Voltage

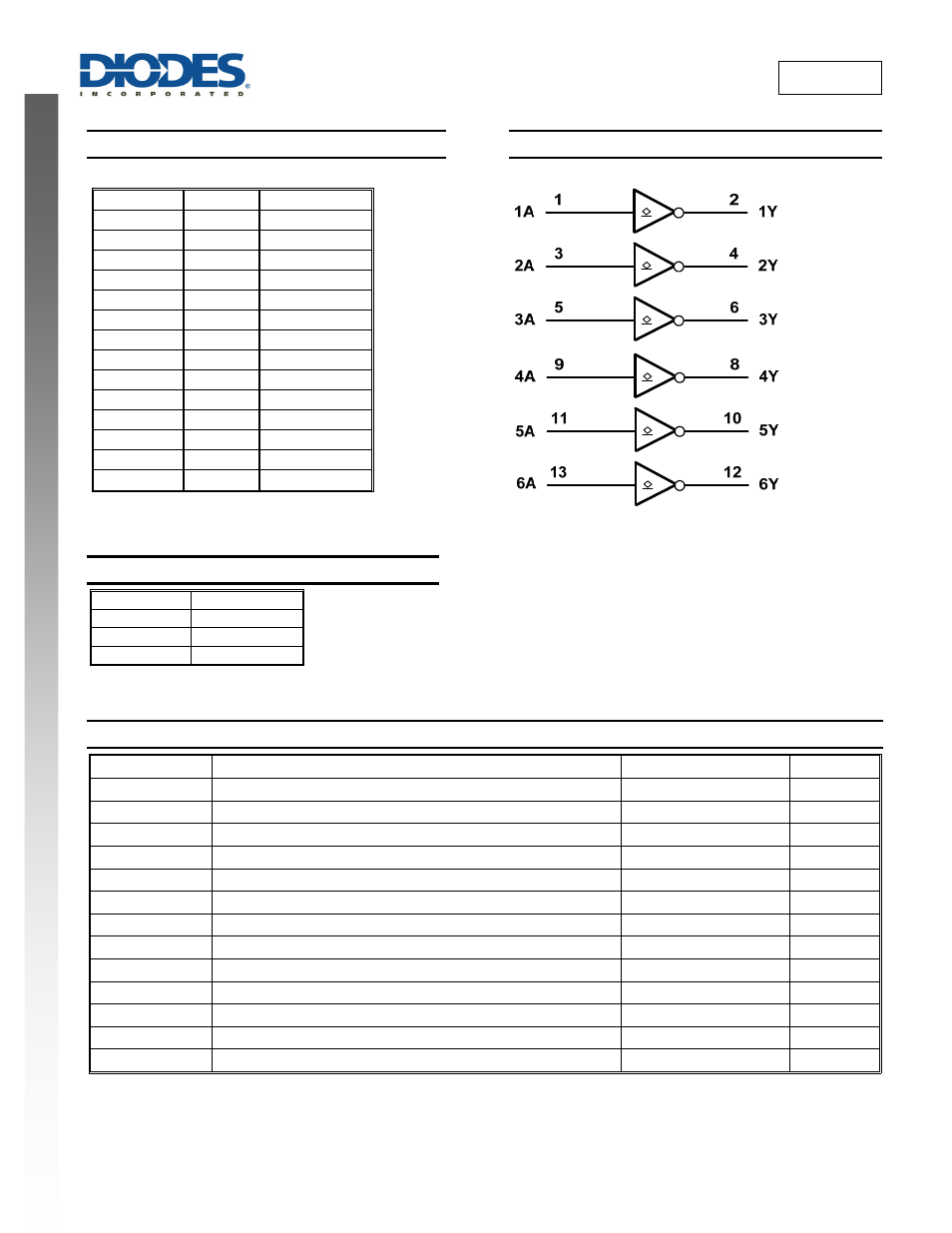

Logic Diagram
Function Table
Input Output
A Y
H L
L Z
Absolute Maximum Ratings
(Note 4) (@T
A
= +25°C, unless otherwise specified.)
Symbol Parameter Rating Unit
ESD HBM Human Body Model ESD Protection 2 kV
ESD CDM Charged Device Model ESD Protection 1 kV
ESD MM Machine Model ESD Protection 200 V
V
CC
Supply Voltage Range -0.5 to +7.0 V
V
I
Input Voltage Range (Note 4) -0.5 to +7.0 V
I
IK
Input Clamp Current V
I
< 0V -20 mA
I
OK
Output Clamp Current V
O
< 0V -50 mA
I
O
Continuous Output Current - 0.5V < V
O
Vcc +0.5V - 25 mA
I
CC
Continuous Current Through Vcc 50 mA
I
GND
Continuous Current Through GND -50 mA
T
J
Operating Junction Temperature -40 to +150 °C
T
STG
Storage Temperature -65 to +150 °C
P
TOT
Total Power Dissipation 500 mW
Note: 4. Stresses beyond the absolute maximum may result in immediate failure or reduced reliability. These are stress values and device operation should
be within recommend values.
