74HCT00
Document number: DS35329 Rev. 3- 2
1 of 8
January 2013
© Diodes Incorporated
74HCT00
QUADRUPLE 2-INPUT NAND GATES
Description
The 74HCT00 provides provides four independent 2-input NAND
gates with standard push-pull outputs. The device is designed for
operation with a power supply range of 4.5V to 5.5V.
The gates perform the Boolean function:
B
A
Y
•
=
or
B
A
Y
+
=
Features
•
Wide Supply Voltage Range from 4.5V to 5.5V
•
Pin Compatible with Low Power Schottky (LSTTL)
•
Inputs Are TTL Voltage Level Compatible
•
Sinks or sources 4mA at Vcc = 4.5V
•
CMOS low power consumption
•
Schmitt Trigger Action at All Inputs
•
ESD Protection Exceeds JESD 22
200-V Machine Model (A115-A)
2000-V Human Body Model (A114-A)
Exceeds 1000-V Charged Device Model (C101C)
•
Range of Package Options SO-14 and TSSOP-14
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)

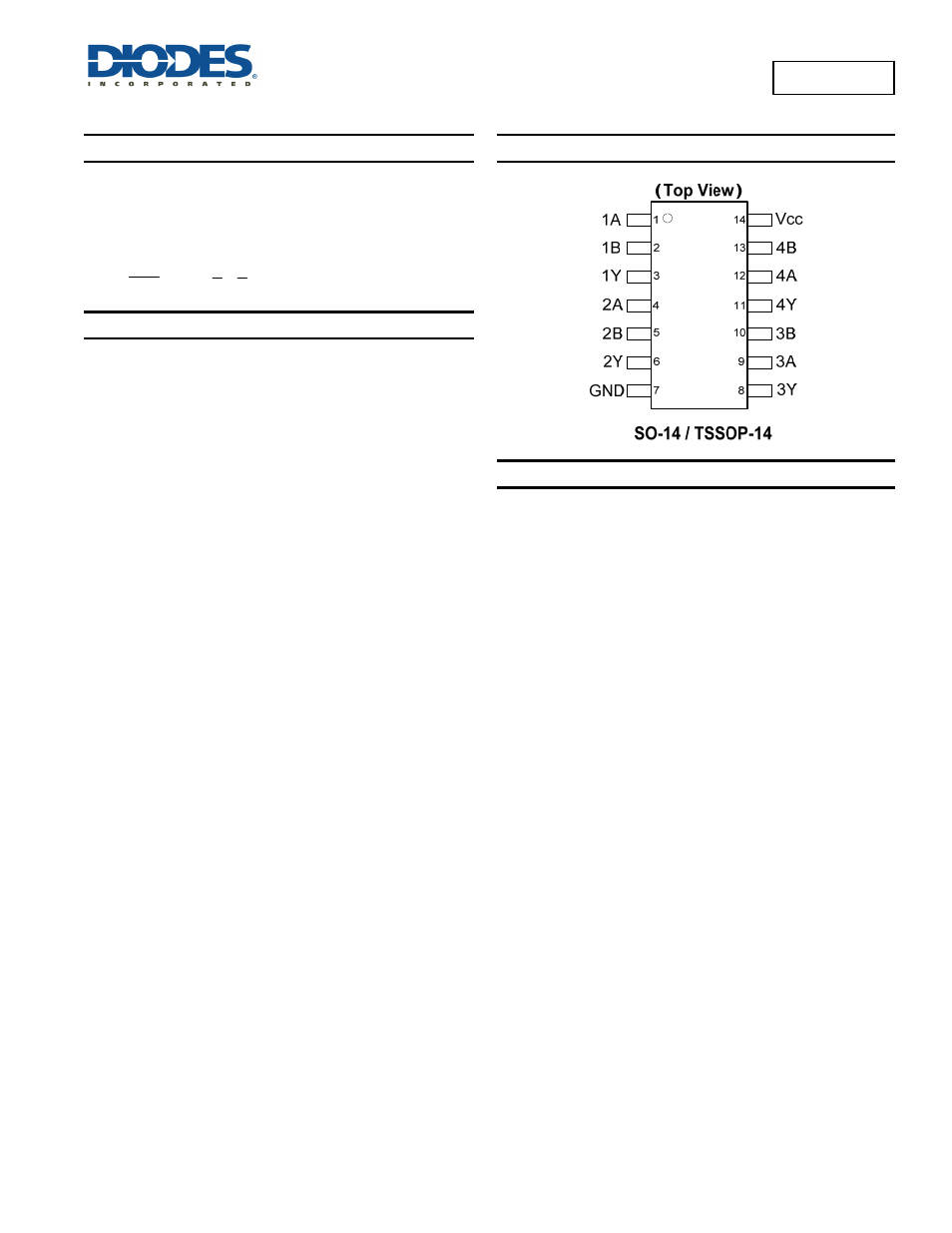

Pin Assignments
Applications
•
General Purpose Logic
•
Wide array of products such as:
PCs, networking, notebooks, netbooks
Computer peripherals, hard drives, CD/DVD ROM
TV, DVD, DVR, set top box
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Se information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
