74HC126

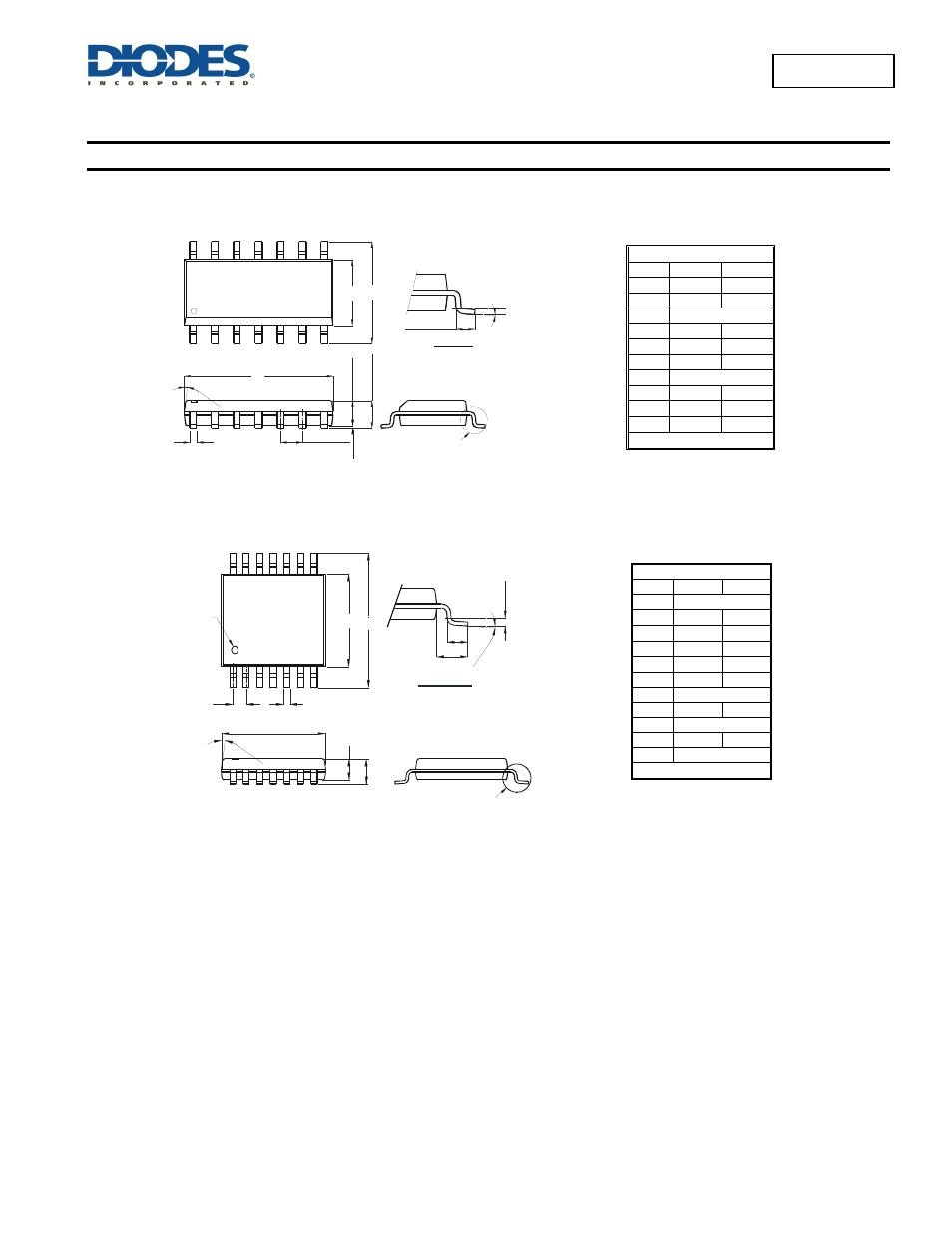

Package Outline Dimensions
(All dimensions in mm.)
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Package Type: SO-14
Package Type: TSSOP-14
SO-14
Dim Min Max
A 1.47 1.73
A1 0.10 0.25
A2 1.45 Typ
B 0.33 0.51
D 8.53 8.74
E 3.80 3.99
e 1.27 Typ
H 5.80 6.20
L 0.38 1.27
θ 0 ° 8 °
All Dimensions in mm
TSSOP-14
Dim Min Max
a1 7° (4X)
a2 0 ° 8°
A 4.9 5.10
B 4.30 4.50
C ⎯ 1.2
D 0.8 1.05
F 1.00 Typ
F1 0.45 0.75
G 0.65 Typ
K 0.19 0.30
L 6.40 Typ
All Dimensions in mm
E H
A
A2
e
D
A1
L
Gauge Plane
Detail “A”
Detail “A”
7°(4
x)
θ
B
G
L
A
K
a1
D
C
a
2
F
F1
Pin# 1 Indent
Detail ‘A’
Detail ‘A’
0 .
25
Gauge Plane
Seating Plane
B
