74AHC32
Document number: DS35343 Rev. 3 - 2
1 of 8
January 2013
© Diodes Incorporated
NEW PROD
UC
T
74AHC32
QUADRUPLE 2-INPUT OR GATES
Description
The 74AHC32 provides provides four independent 2-input OR gates
with standard push-pull outputs. The device is designed for operation
with a power supply range of 2.0V to 5.5V. The inputs are tolerant to
5.5V allowing this device to be used in a mixed voltage environment.
The gates perform the Boolean function:
B
A
Y
+
=
or
B
A
Y
•
=
Features
•
Wide Supply Voltage Range from 2.0V to 5.5V
•
Outputs Sink or Source 8mA at V
CC
= 4.5V
•
CMOS Low Power Consumption
•
Schmitt Trigger Action at All Inputs
•
Inputs can be driven by 3.3V or 5.5V allowing for voltage
translation applications.
•
ESD Protection Exceeds JESD 22
200-V Machine Model (A115-A)
2000-V Human Body Model (A114-A)
Exceeds 1000-V Charged Device Model (C101C)
•
Latch-Up Exceeds 250mA per JESD 78, Class II
•
Range of Package Options SO-14 and TSSOP-14
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)

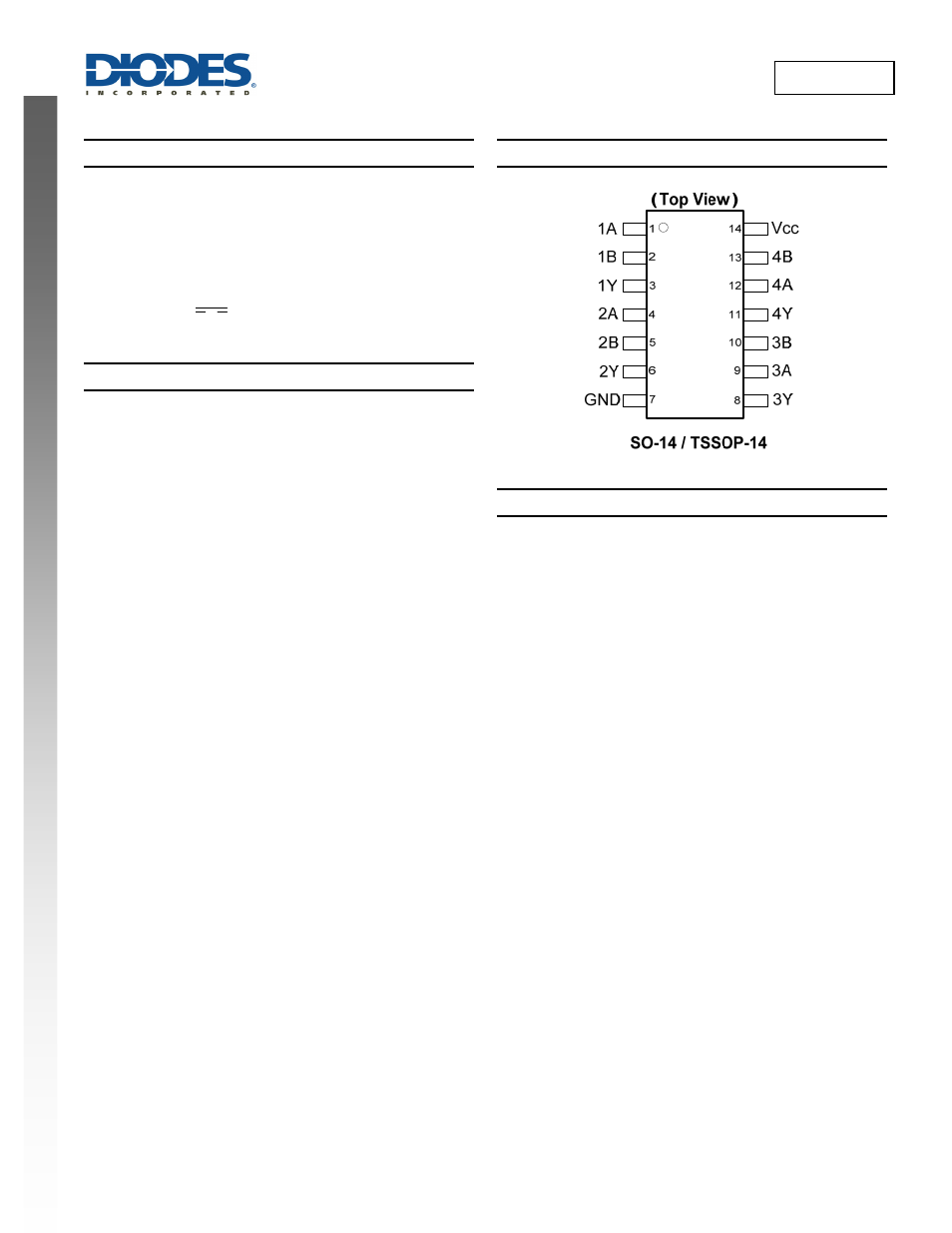

Pin Assignments
Applications
•
General Purpose Logic
•
Wide array of products such as:
PCs, Networking, Notebooks, Netbooks
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, Set Top Box
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
Click here for ordering information located at the end of datasheet
