Diodes 74AHC05 User Manual
New prod uc t 74ahc05, Description, Features
74AHC05
Document number: DS35340 Rev. 3 - 2
1 of 8
January 2013
© Diodes Incorporated
NEW PROD
UC
T
74AHC05
HEX INVERTER WITH OPEN DRAIN OUTPUTS
Description
The 74AHC05 provides provides six independent inverters with open
drain outputs The device is designed for operation with a power
supply range of 2.0V to 5.5V. The inputs are tolerant to 5.5V allowing
this device to be used in a mixed voltage environment.
The gates perform the Boolean function:
A
Y
=
Features
•
Wide Supply Voltage Range from 2.0V to 5.5V
•
Outputs Sink 8 mA at V
CC
= 4.5V
•
CMOS Low Power Consumption
•
Schmitt Trigger Action at All Inputs
•
Inputs can be driven by 3.3 V or 5.5V allowing for voltage
translation applications.
•
ESD Protection Exceeds JESD 22
200-V Machine Model (A115-A)
2000-V Human Body Model (A114-A)
Exceeds 1000-V Charged Device Model (C101C)
•
Latch-Up Exceeds 250mA per JESD 78, Class II
•
Range of Package Options SO-14 and TSSOP-14
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)

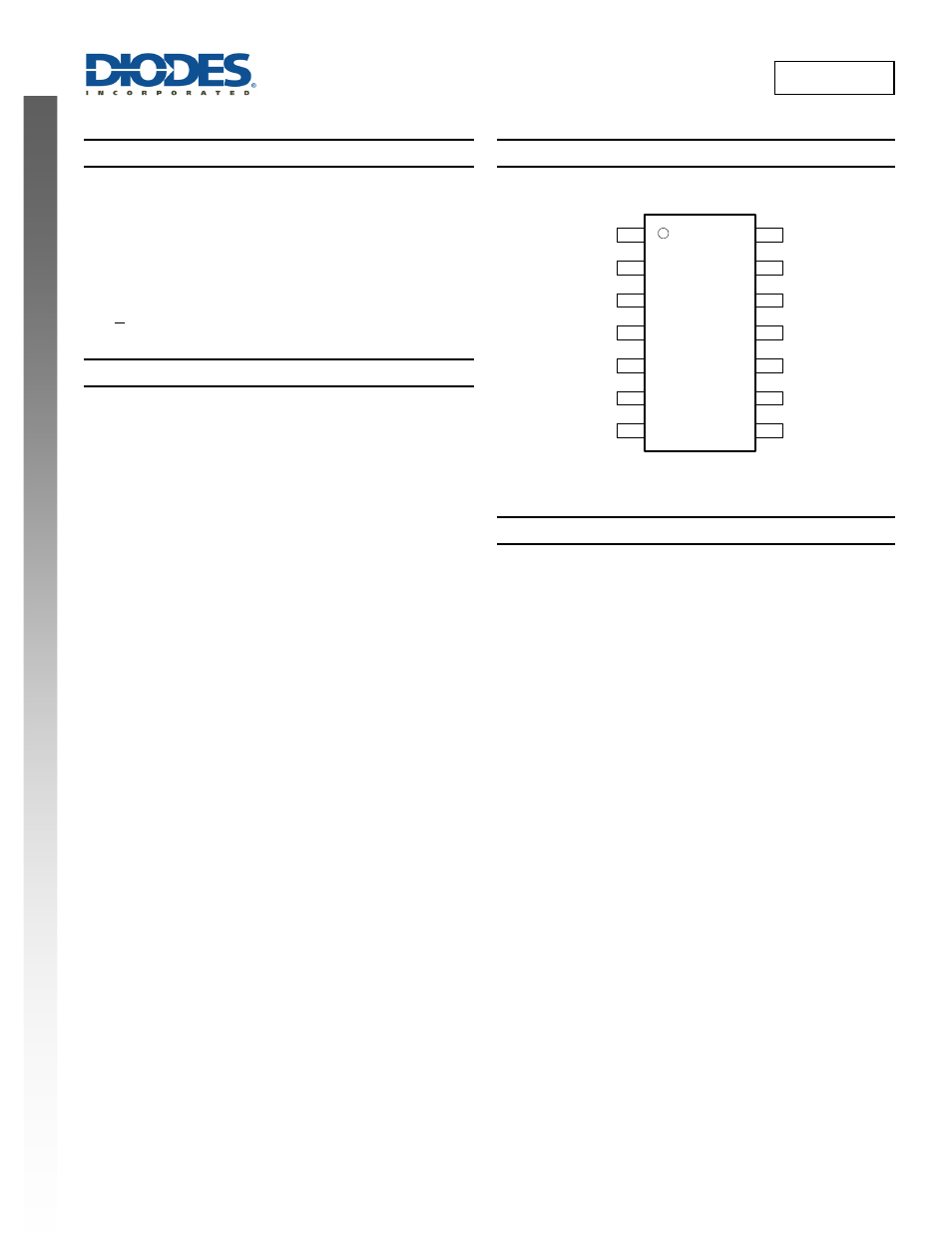

Pin Assignments
1
3
2
4
5
6
7
1A
2A
1Y
2Y
3A
3Y
GND
13
14
12
11
10
9
8
6A
5A
6Y
5Y
4A
4Y
Vcc
( Top View )
SO-14 / TSSOP-14
Applications
•
General Purpose Logic
•
Wide array of products such as:
PCs, Networking, Notebooks, Netbooks
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, Set Top Box
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Se information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
