74AUP2G14
Document number: DS35512 Rev. 2 - 2
1 of 12
December 2013
© Diodes Incorporated
74AUP2G14
NEW PROD
UC
T
DUAL SCHMITT TRIGGER INVERTERS
Description
The Advanced Ultra Low Power (AUP) CMOS logic family is designed
for low power and extended battery life in portable applications.
The 74AUP2G14 is composed of two Schmitt trigger inverters with
standard push-pull outputs designed for operation over a power
supply range of 0.8V to 3.6V. The device is fully specified for partial
power down applications using I
OFF
. The I
OFF
circuitry disables the
output preventing damaging current backflow when the device is
powered down. The gates perform the positive Boolean function:
A
Y
=
Features
•
Advanced Ultra Low Power (AUP) CMOS
•
Supply Voltage Range from 0.8V to 3.6V
•
± 4mA Output Drive at 3.0V
•
Low Static power consumption
•
I
CC
< 0.9µA
•
Low Dynamic Power Consumption
•
C
PD
= 4pF Typical at 3.6V
•
Schmitt Trigger Action at All Inputs Make the Circuit Tolerant for
Slower Input Rise and Fall Time.
•
I
OFF
Supports Partial-Power-Down Mode Operation
•
ESD Protection per JESD 22
Exceeds 200-V Machine Model (A115)
Exceeds 2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
•
Latch-Up Exceeds 100mA per JESD 78, Class I
•
Leadless packages per JESD30E
DFN1410 denoted as X2-DFN1410-6
DFN1010 denoted as X2-DFN1010-6
DFN0910 denoted as X2-DFN0910-6
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)

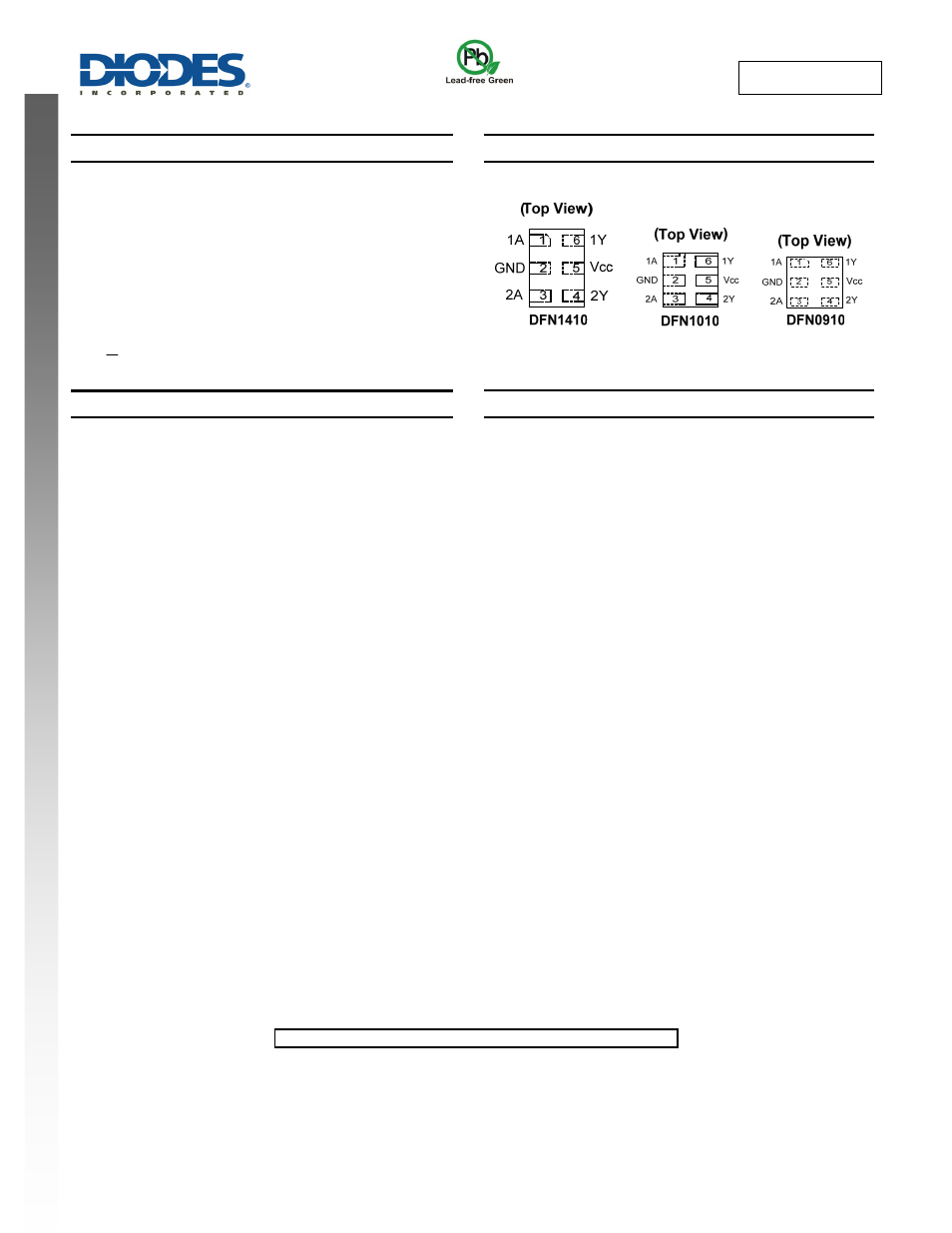

Pin Assignments
Applications
•
Suited for battery and low power needs
•
Wide array of products such as:
PCs, networking, notebooks, netbooks, PDAs
Tablet Computers, E-readers
Computer peripherals, hard drives, CD/DVD ROM
TV, DVD, DVR, set top box
Cell Phones, Personal Navigation / GPS
MP3 players ,Cameras, Video Recorders
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
Click here for ordering information, located at the end of datasheet
