ADJUSTABLE PRECISION SHUNT REGULATORS AN431
Data Sheet
1
Dec. 2012 Rev. 2. 0
BCD Semiconductor Manufacturing Limited
General Description
The AN431 series ICs are three-terminal adjustable
shunt regulators with guaranteed thermal stability over
a full operation range. These ICs feature sharp turn-on
characteristics, low temperature coefficient and low
output impedance, which make them ideal substitutes
for Zener diodes in applications such as switching
power supply, charger and other adjustable regulators.
The output voltage of these ICs can be set to any value
between V
REF
(2.5V) and the maximum cathode volt-
age (36V).
The AN431 precision reference is offered in two volt-
age tolerance: 0.5% and 1.0%.
These ICs are available in SOT-23 package.
Features
·
Programmable Precise Output Voltage from 2.5V
to 36V
·
High Stability under Capacitive Load
·
Low Temperature Deviation: 4.5mV Typical
·
Low Equivalent Full-range Temperature Coeffi-
cient with 20PPM/
o
C Typical
·
Low Dynamic Output Resistance: 0.15
Ω Typical
·
Sink Current Capacity from 1mA to 100mA
·
Low Output Noise
·
Wide Operating Range of -40 to 125
o
C
Applications
·
Charger
·
Voltage Adapter
·
Switching Power Supply
·
Graphic Card
·
Precision Voltage Reference
SOT-23

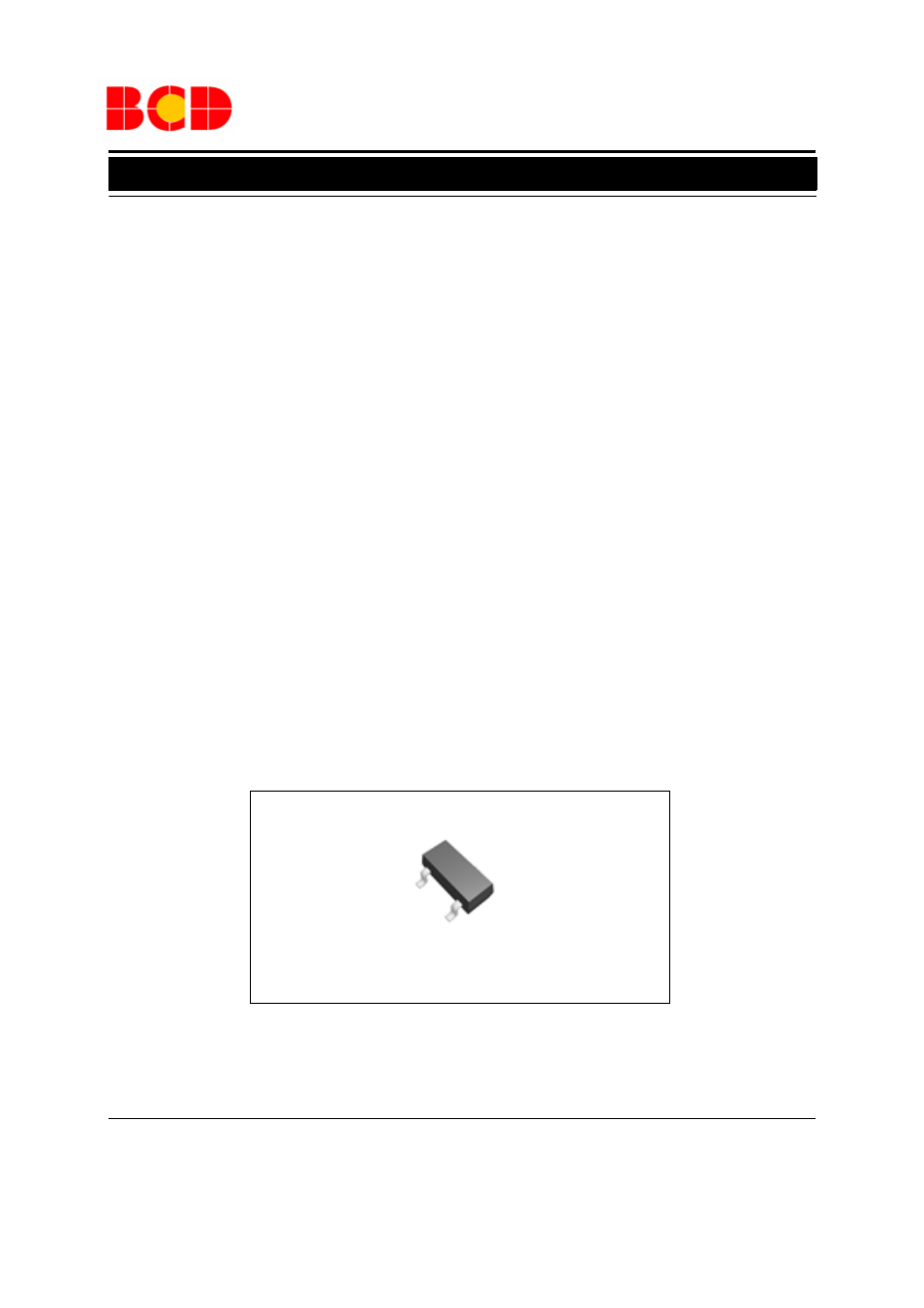

Figure 1. Package Type of AN431
Document Outline
- Package
- Temperature Range
- Condition
- Part Number
- Marking ID
- Packing Type
- Lead Free
- Green
- Lead Free
- Green
- -40 to 125oC
- 0.5%
- AN431AN-ATRE1
- AN431AN-ATRG1
- EB1
- GB1
- Tape & Reel
- 1.0%
- AN431BN-ATRE1
- AN431BN-ATRG1
- EB2
- GB2
- Tape & Reel
- Parameter
- Symbol
- Value
- Unit
- Cathode Voltage
- VKA
- 40
- V
- Cathode Current Range (Continuous)
- IKA
- -100 to 150
- mA
- Reference Input Current Range
- IREF
- 10
- mA
- Power Dissipation
- PD
- 370
- mW
- Junction Temperature
- TJ
- 150
- oC
- Storage Temperature Range
- TSTG
- -65 to 150
- oC
- ESD (Human Body Model)
- ESD
- Parameter
- Test
- Circuit
- Symbol
- Conditions
- Min
- Typ
- Max
- Unit
- Reference Voltage
- 0.5%
- 4
- VREF
- VKA=VREF, IKA=10mA
- 2.487
- 2.500
- 2.512
- V
- 1.0%
- 2.475
- 2.500
- 2.525
- Deviation of Reference Voltage Over Full Temperature Range
- 4
- DVREF
- VKA=VREF
- IKA=10mA
- 0 to 70oC
- 4.5
- 8
- mV
- -40 to 85oC
- 4.5
- 10
- -40 to 125oC
- 4.5
- 16
- Ratio of Change in Reference
- Voltage to the Change in
- Cathode Voltage
- 5
- DVREF
- DVKA
- IKA=10mA
- DVKA=
- 10V to VREF
- -1.0
- -2.7
- mV/V
- DVKA=
- 36V to 10V
- -0.5
- -2.0
- Reference Current
- 5
- IREF
- IKA=10mA, R1=10KW, R2=¥
- 0.7
- 4
- mA
- Deviation of Reference Current
- Over Full Temperature Range
- 5
- DIREF
- IKA=10mA, R1=10KW
- R2=¥, TA=-40 to 125oC
- 0.4
- 1.2
- mA
- Minimum Cathode Current for
- Regulation
- 4
- IKA
- (Min)
- VKA=VREF
- 0.4
- 1.0
- mA
- Off-state Cathode Current
- 6
- IKA
- (Off)
- VKA=36V, VREF=0
- 0.05
- 1.0
- mA
- Dynamic Impedance
- 4
- ZKA
- VKA=VREF, IKA=1 to 100mA, f £ 1.0kHz
- 0.15
- 0.5
- W
- Thermal Resistance
- qJC
- SOT-23
- 135
- oC/W
- Note 1: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under ...
- Parameter
- Symbol
- Min
- Max
- Unit
- Cathode Voltage
- VKA
- VREF
- 36
- V
- Cathode Current
- IKA
- 1.0
- 100
- mA
- Operating Ambient Temperature Range
- -40
- 125
- oC
