AZ432
A Product Line of
Diodes Incorporated

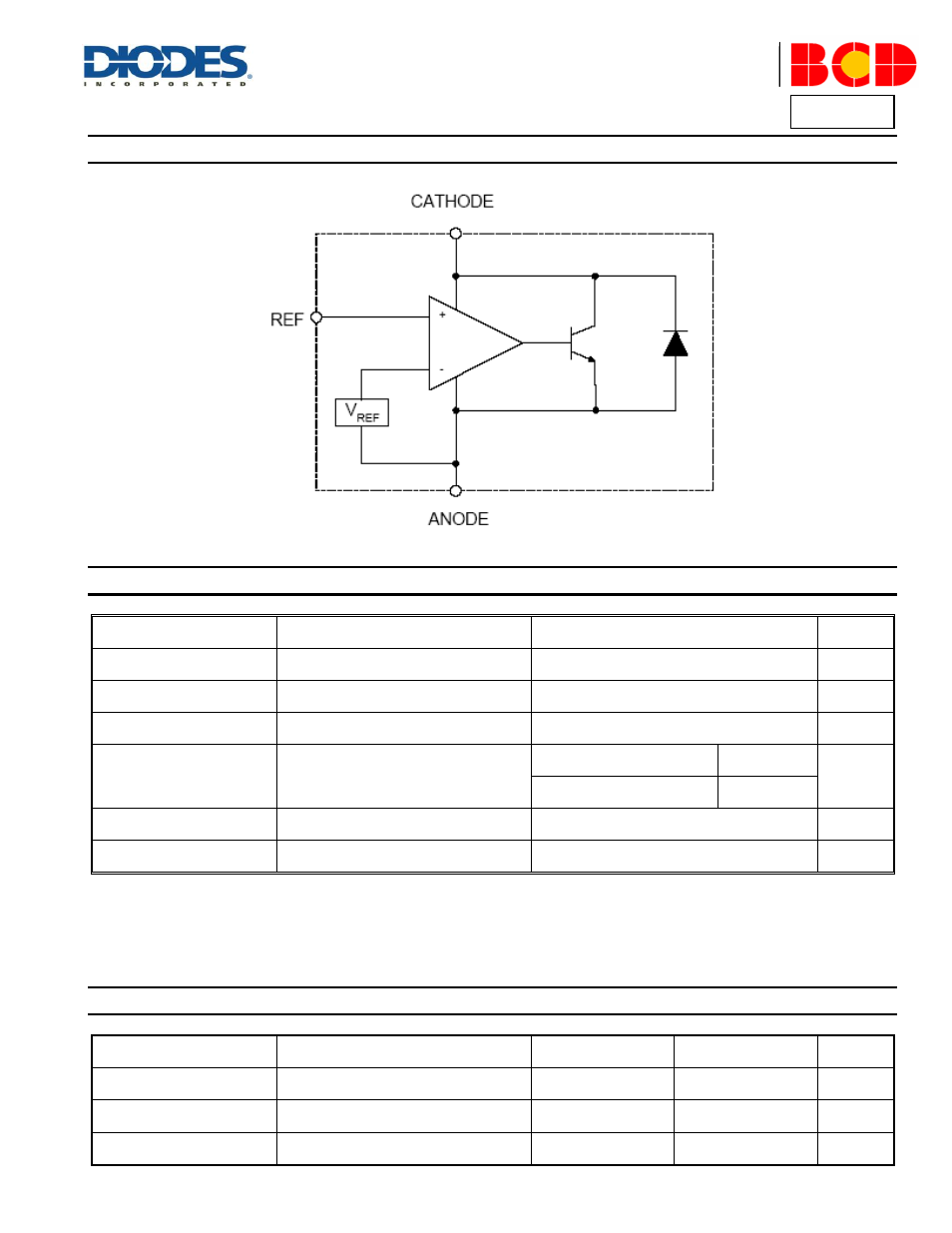

Functional Block Diagram
Absolute Maximum Ratings
(Note 2)
Symbol
Parameter
Rating
Unit
V
KA
Cathode Voltage
20
V
I
KA
Cathode Current Range (Continuous)
-100 to 100
mA
I
REF
Reference Input Current Range
10
mA
P
D
Power Dissipation
Z, R Package
770
mW
N, K Package
370
T
J
Junction Temperature
+150
ºC
T
STG
Storage Temperature Range
-65 to +150
ºC
Note 2:
Stresses greater than those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “Recommended Operating Conditions” is not implied. Exposure to
“Absolute Maximum Ratings” for extended periods may affect device reliability.
Recommended Operating Conditions
Symbol
Parameter
Min
Max
Unit
V
KA
Cathode Voltage
V
REF
18
V
I
KA
Cathode Current
0.1
100
mA
–
Operating Ambient Temperature Range
-40
+125
ºC
