AZ431L
Document number: DS36801 Rev. 3 - 2
2 of 18
www.diodes.com
January 2014
© Diodes Incorporated
AZ431L
A Product Line of
Diodes Incorporated

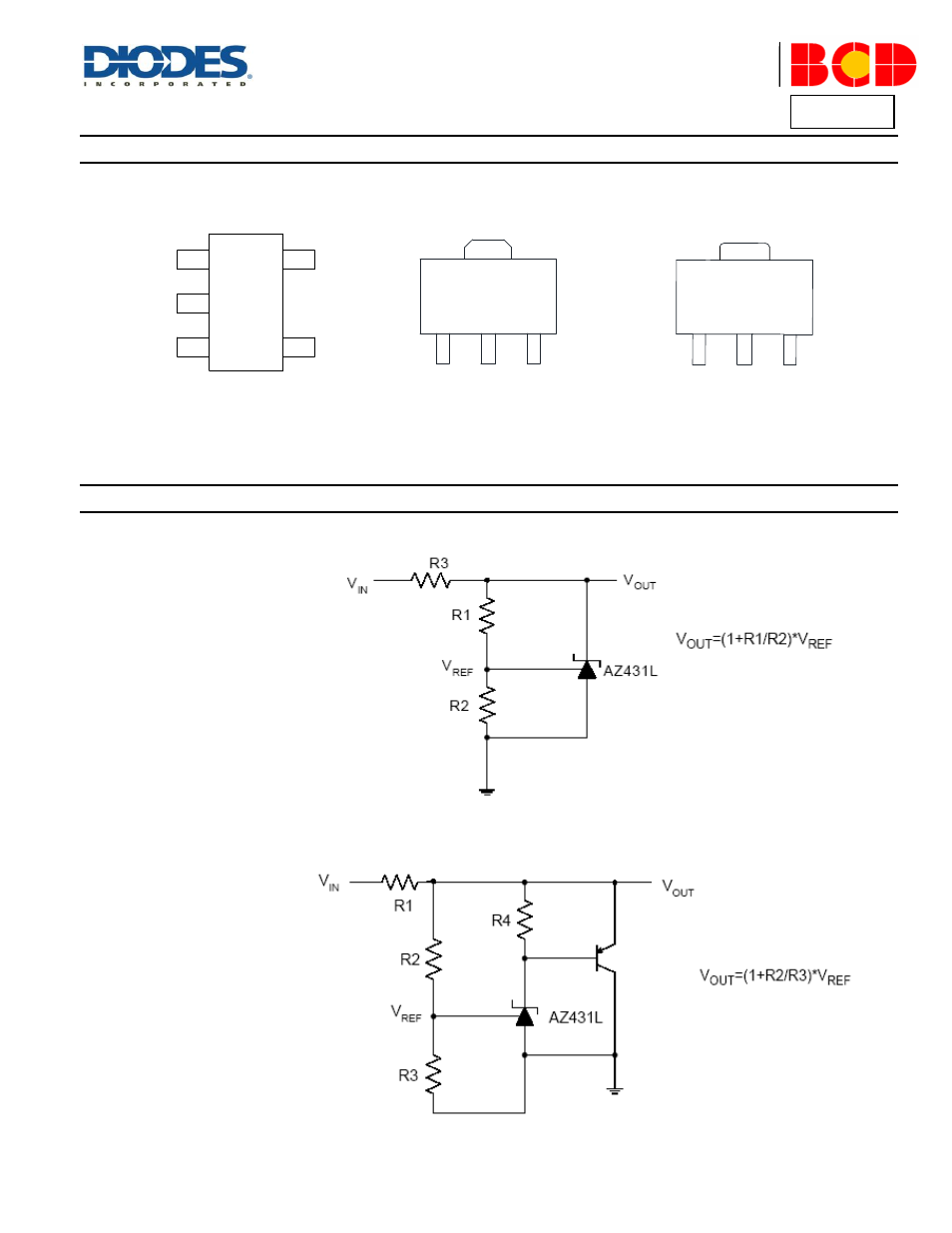

Pin Assignments
(Cont.)
(Top View) (Top View) (Top View)
(SOT-23-5/ K Package) (SOT-89 Option 1/ R Package) (SOT-89 Option 2/ R Package)
Note 1: *Pin 2 is attached to substrate and must be connected to ANODE or open.
Typical Applications Circuit
Shunt Regulator
High Current Shunt Regulator
CATHODE
ANODE
REF
1
2
3 4
5 NC
*
(Note 1)
1 2 3
REF ANODE CATHODE
1 2 3
REF ANODE CATHODE
