APX811/812
4-Pin Microprocessor Supervisor With Manual Reset
APX811/812 Rev. 2 3 of 10 OCTOBER 2009
DS31960 www.diodes.com © Diodes Incorporated

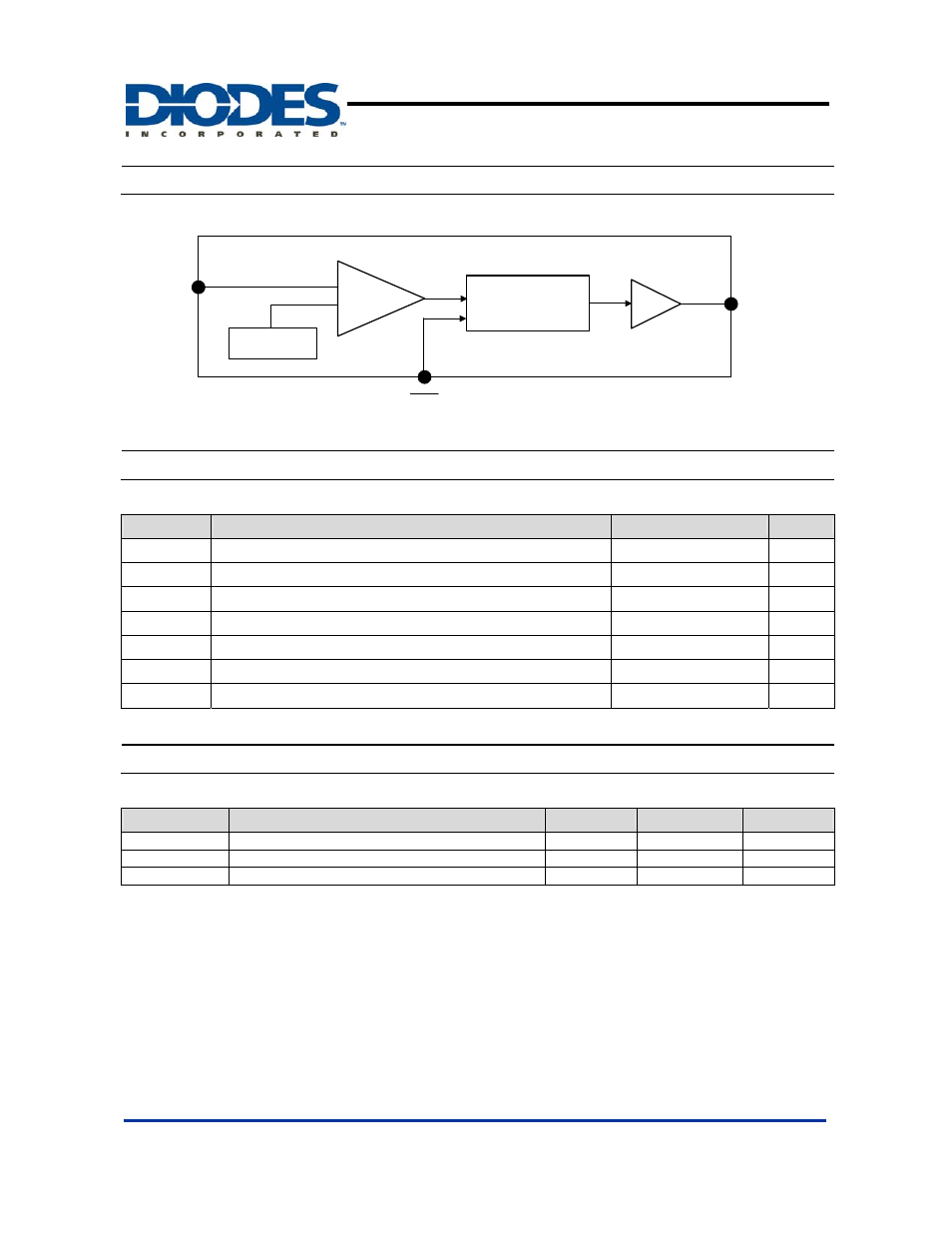

Block Diagram
Vcc
RESET
MR
Vref
Delay Circuit
Driver
Absolute Maximum Ratings
Symbol Parameter Rating Unit
ESD HBM Human Body Model ESD protection 3 kV
ESD MM Machine Model ESD Protection 500 V
V
CC
Supply voltage -0.3~7 V
V
RESET
RESET -0.3 to (Vcc+0.3) V
I
CC
Input Current, Vcc 20 mA
I
O
Output current 20 mA
P
D
Power dissipation 320 mW
Recommended Operating Conditions
Symbol Parameter Min Max Unit
V
CC
Supply Voltage 1.1 5.5 V
V
IN
Input Voltage 0 (V
CC
+0.3) V
T
A
Operating Ambient Temperature -40 85 o C
