LOW VOLTAGE AUDIO POWER AMPLIFIER
Apr. 2007 Rev. 1. 4
BCD Semiconductor Manufacturing Limited
1
Data Sheet
AZ386
General Description
The AZ386 is a power amplifier designed for use in
low voltage consumer applications. The gain is inter-
nally set to 20 to keep external part count low, but the
addition of an external resistor and capacitor between
pin 1 and pin 8 will increase the gain to any value from
20 to 200.
The inputs are ground referenced while the output
automatically biases to one-half the supply voltage.
The quiescent power drain is only 24mW when opera-
ting from a 5V supply, making the AZ386 ideal for
battery operation.
This IC is available in SOIC-8 and DIP-8 packages.
Features
·
Wide Supply Voltage Range: 4V to 16V
·
Low Quiescent Current Drain: 6mA
·
Voltage Gains from 20 to 200
·
Battery Operation
·
Minimum External Parts
·
Low Power Dissipation
·
Low Distortion
Applications
·
AM-FM Radio Amplifier
·
Cordless Phone
·
TV Sound Systems
·
Portable Tape Player Amplifier
·
Intercoms
·
Line Drivers
·
Ultrasonic Drivers
·
Small Servo Drivers
·
Power Converters

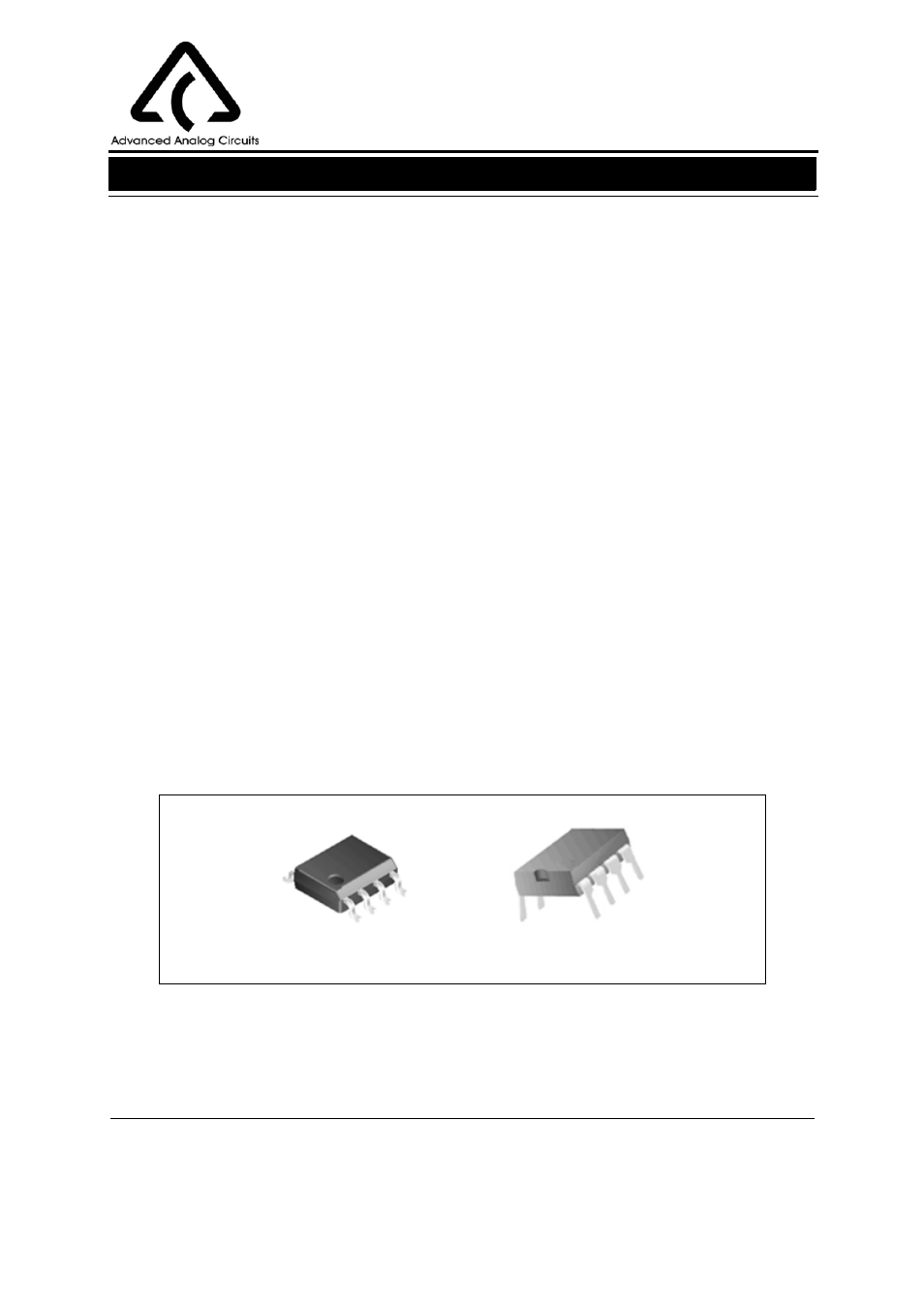

Figure 1. Package Types of AZ386
SOIC-8
DIP-8
