Data Sheet
High Sensitivity Micropower Omnipolar Hall-Effect Switch AH9249
Jul. 2011 Rev. 1. 6 BCD Semiconductor Manufacturing Limited
3

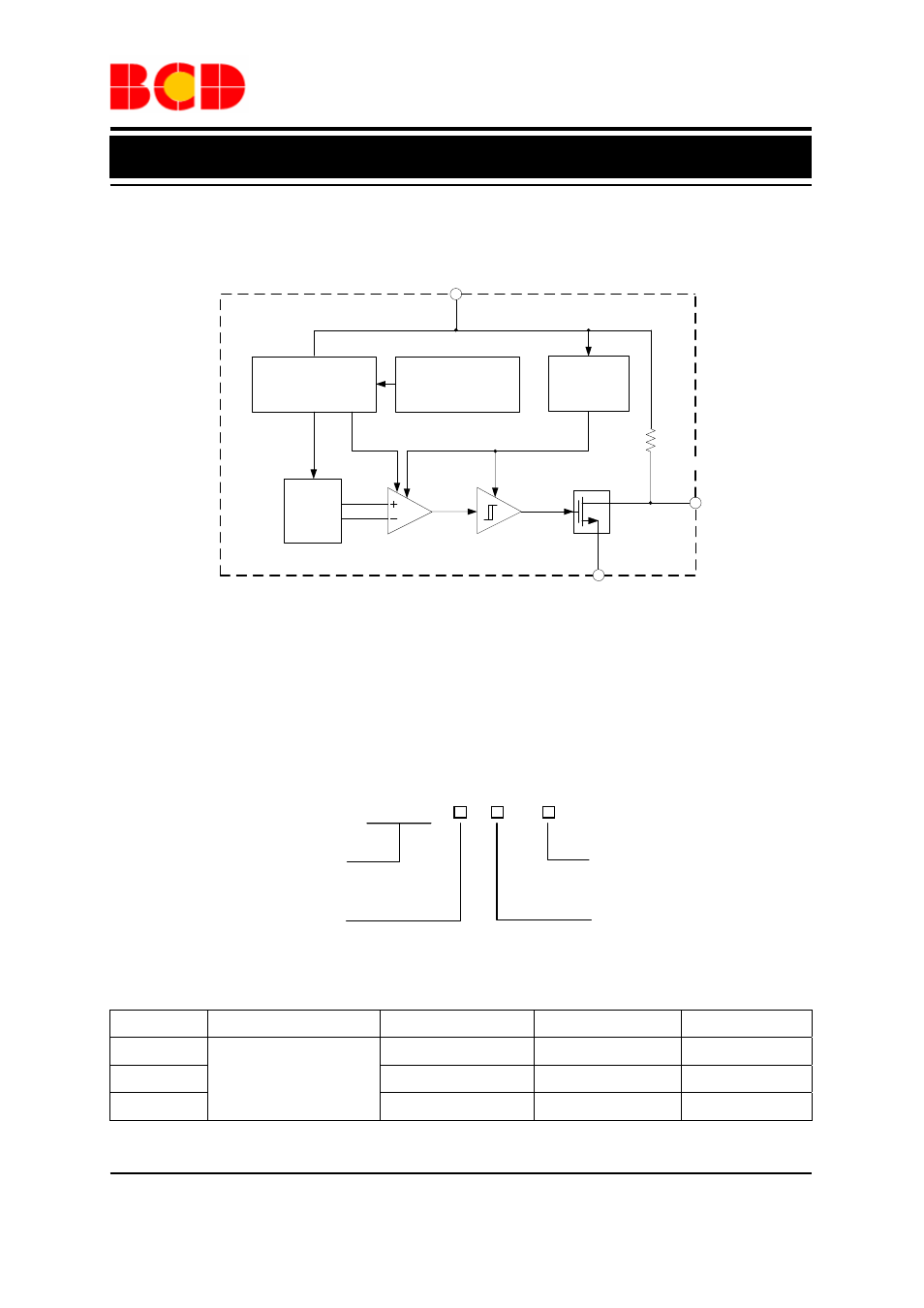

Functional Block Diagram
Sleep/Awake
Control
Timing
Logic
Bias
Hall
Plate
Chopper Comparator
VCC
GND
OUTPUT
1 (1)
2 (3)
3 (2)
A (B)
A for TO-92S-3
B for SOT-23-3 and DFN-2×2-3
Figure 3. Functional Block Diagram of AH9249
Ordering Information
AH9249 -
Package Temperature Range Part Number Marking ID Packing Type
TO-92S-3 AH9249Z3-G1 9249 Bulk
SOT-23-3 AH9249NTR-G1 GJ9 Tape & Reel
DFN-2×2-3
-40 to 85
°C
AH9249DNTR-G1 JB Tape & Reel
BCD Semiconductor's Pb-free products, as designated with "G1" suffix in the part number, are RoHS compliant
and green.
Blank: Bulk
TR: Tape and Reel
G1: Green Circuit Type
Package
Z3: TO-92S-3
N: SOT-23-3
DN: DFN-2Ч2-3
