AH1898

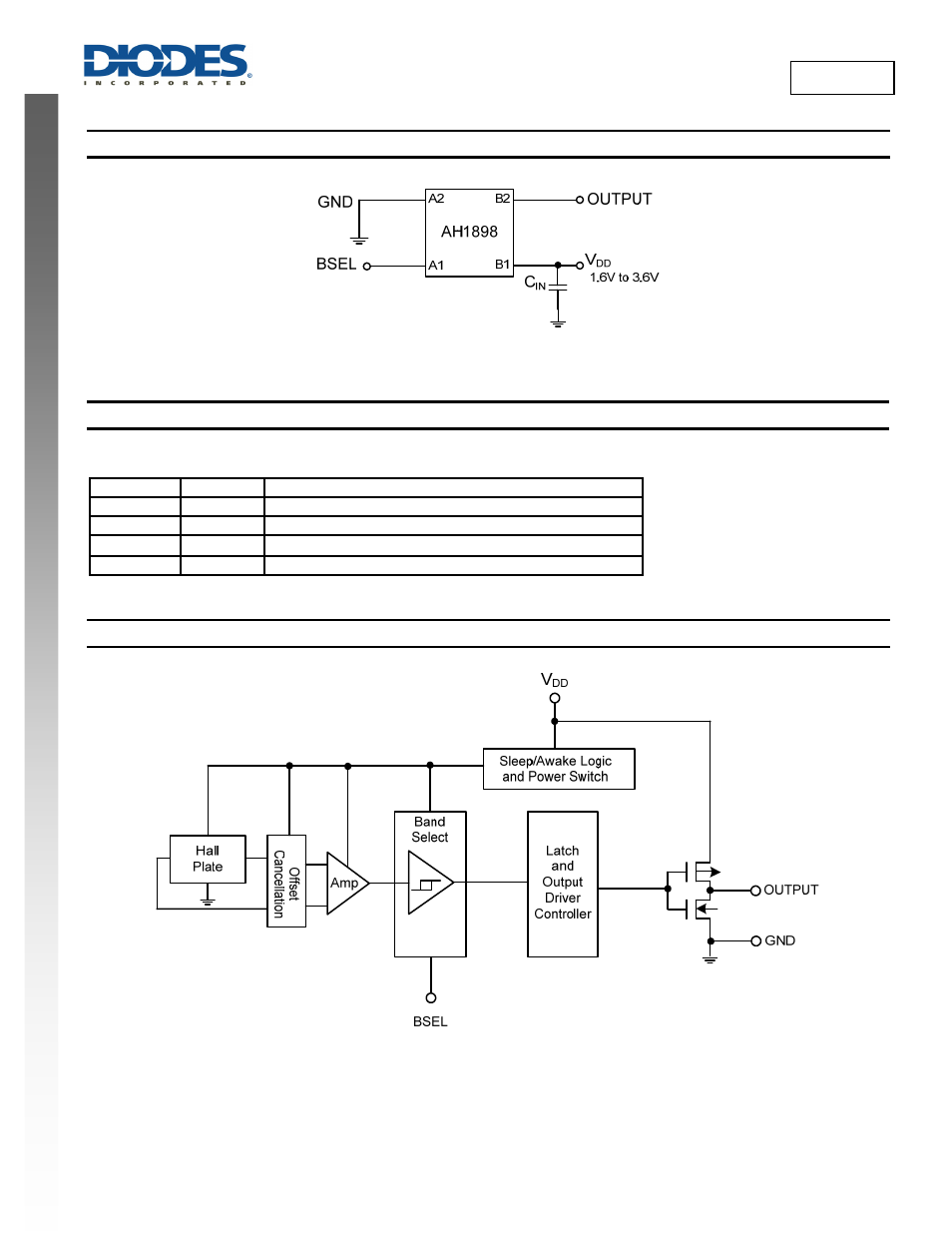

Typical Applications Circuit
Note:
4. C
IN
is for power stabilization and to strengthen the noise immunity, the recommended capacitance is 100nF typical.
Pin Descriptions
Package: U-WLB0808-4
Pin Number
Pin Name
Function
A1
BSEL
Band Select Pin to select operating and release gauss points
A2 GND
Ground Pin
B1
V
DD
Power Supply Input
B2 OUTPUT
Output
Pin
Functional Block Diagram
