Diodes AH1893 User Manual
New prod uc t ah1893, Description, Features
AH1893
Document number: DS35740 Rev. 1 - 2
1 of 10
July 2013
© Diodes Incorporated
NEW PROD
UC
T
AH1893
HIGH SENSITIVITY MICROPOWER
OMNIPOLAR HALL-EFFECT SWITCH
Description
The AH1893 is a high sensitivity micropower Omnipolar Hall effect
switch IC with internal pull up and pull down capability. Designed for
portable and battery powered equipment such as cellular phones and
portable PCs to home appliances and industrial applications, the
average supply current is only 4.3µA at 1.85V. To support potable
equipment the AH1893 can operate over the supply range of 1.6V to
3.6V and uses a hibernating clocking system to minimize the power
consumption. To minimize PCB space the AH1893 is available in
small low profile X1-DFN1216-4 and SOT553 packages.
The output is activated with either a north or south pole of sufficient
magnetic field strength. When the magnetic flux density (B)
perpendicular to the package is larger than operate point (Bop), the
output will be turned on (pulled low) and held until B is lower than
release point (Brp).
Features
Omnipolar Operation (North or South pole)
Supply Voltage of 1.6V to 3.6V
High
Sensitivity
Micropower
Operation
Chopper Stabilized Design Provides
Superior Temperature Stability
Minimal Switch Point Drift
Enhanced Immunity to Physical Stress
No External Pull-up Resistors Required
Good RF Noise Immunity
-40°C to +85°C Operating Temperature
High ESD capability of 8kV (Human Body Model)
Small Low Profile SOT553 and X1-DFN1216-4 Packages
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)

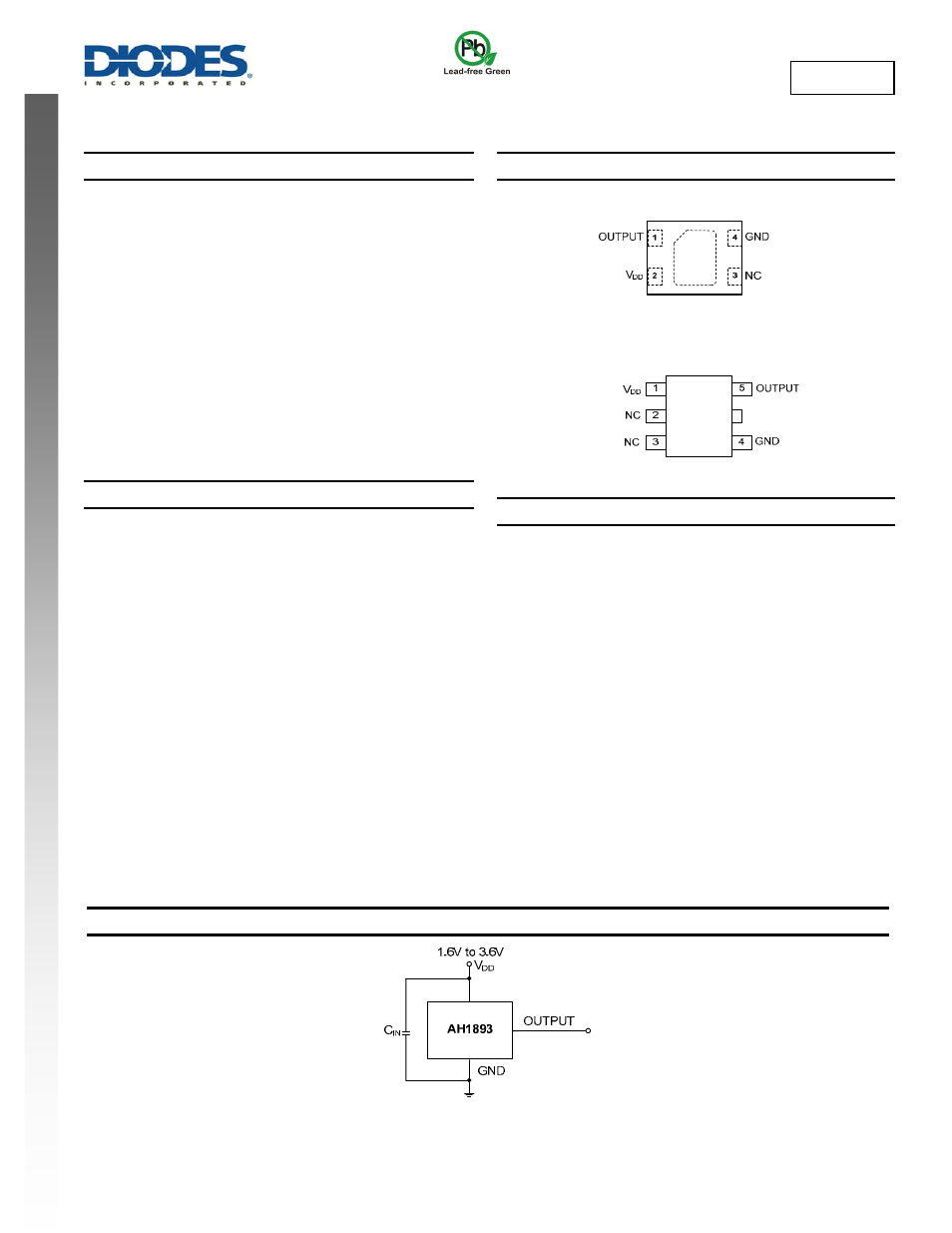

Pin Assignments
(Top View)
X1-DFN1216-4
(Top View)
SOT553
Applications
Open and Close Detect for Cellular Phones
Holster or Cover Detect for Cellular Phones and Tablet PCs
Cover or Display Switch in Portable PCs
Digital Still, Video Cameras and Handheld Gaming Consoles
Door, Lids and Tray Position Switches
Level, Proximity and Position Switches
Contact-Less Switches in Home Appliances and Industrial
Applications
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
Typical Applications Circuit
Note:
4. C
IN
is for power stabilization and to strengthen the noise immunity, the recommended capacitance is 100nF typical.
