AH1809

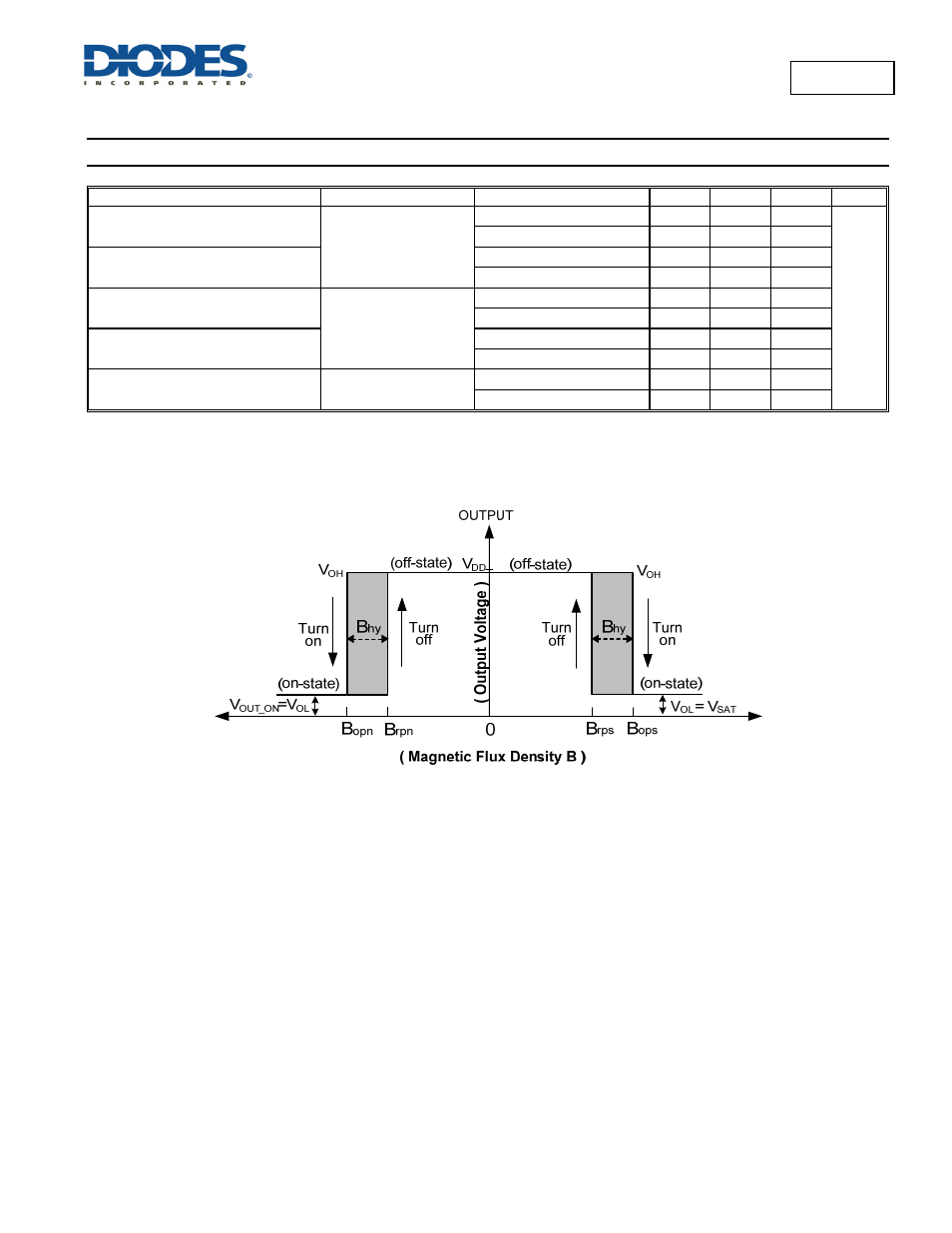

Magnetic Characteristics
(Note 9 &10) (T
A
= +25°C, V
DD
= 2.5V to 5.5V, unless otherwise specified)
(1mT=10 Gauss)
Symbol Characteristics Test Condition Min Typ Max Unit
Bops (south pole to part marking side)
Operation Point
T
A
= +25°C 100 130 165
Gauss
T
A
= -40°C to +125 °C 90 130 185
Bopn (north pole to part marking side)
T
A
= +25°C -165 -130 -100
T
A
= -40°C to +125 °C -185 -130 -90
Brps (south pole to part marking side)
Release Point
T
A
= +25°C 90 115 150
T
A
= -40°C to +125 °C 80 115 170
Brpn (north pole to part marking side)
T
A
= +25°C -150 -115 -90
T
A
= -40°C to +125 °C -170 -115 -80
Bhy (|Bopx|-|Brpx|) Hysteresis (Note 11)
T
A
= +25°C 10 15 20
T
A
= -40°C to +125 °C 5 15 —
Notes: 9. Typical data is at T
A
= +25 °C, V
DD
= 3V.
10. Parameters values over operating temperature range are not tested in production, they are guaranteed by design, process control and characterization.
The magnetic characteristics may vary with supply voltage, operating temperature and after soldering.
11. Maximum and minimum hysteresis is guaranteed by design and characterization.
