AH1802
MICROPOWER, ULTRA-SENSITIVE OMNIPOLAR
HALL-EFFECT SENSOR SWITCH
AH1802
Document number: 31170 Rev. 8 - 2
10 of 11
December 2010
© Diodes Incorporated

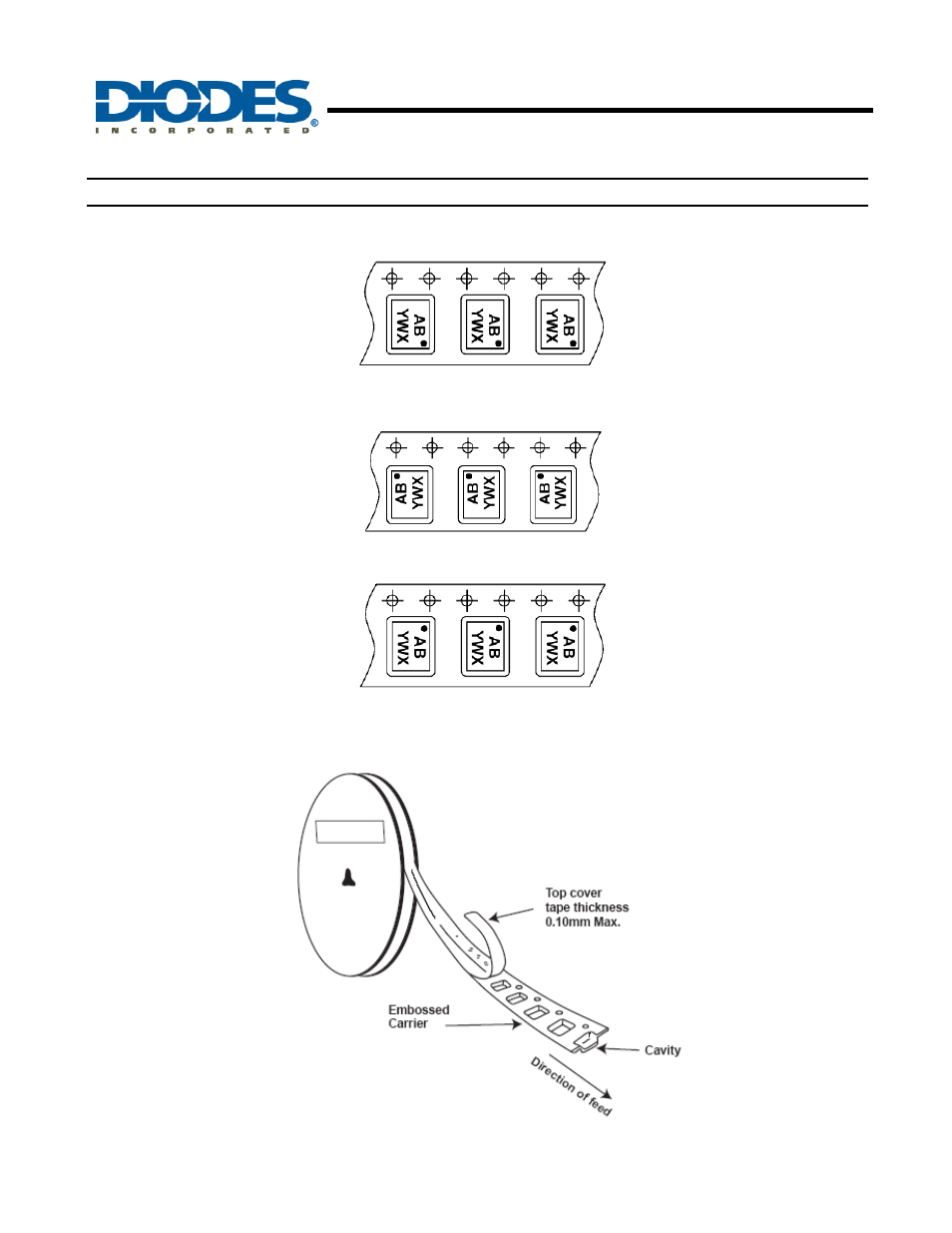

Taping Orientation
(1) DFN2020-6 and DFN2020-3 with standard taping orientation
(2) DFN2020-3
with
180
o
rotation from standard taping orientation
(3) DFN2015H4-3
Notes: 9. The taping orientation of the other package type can be found on our website at
