AH1803
MICROPOWER, ULTRA-SENSITIVE HALL EFFECT
SWITCH
AH1803 Rev. 9
2 of 9
OCTOBER 2009
DS31193
©
Diodes Incorporated

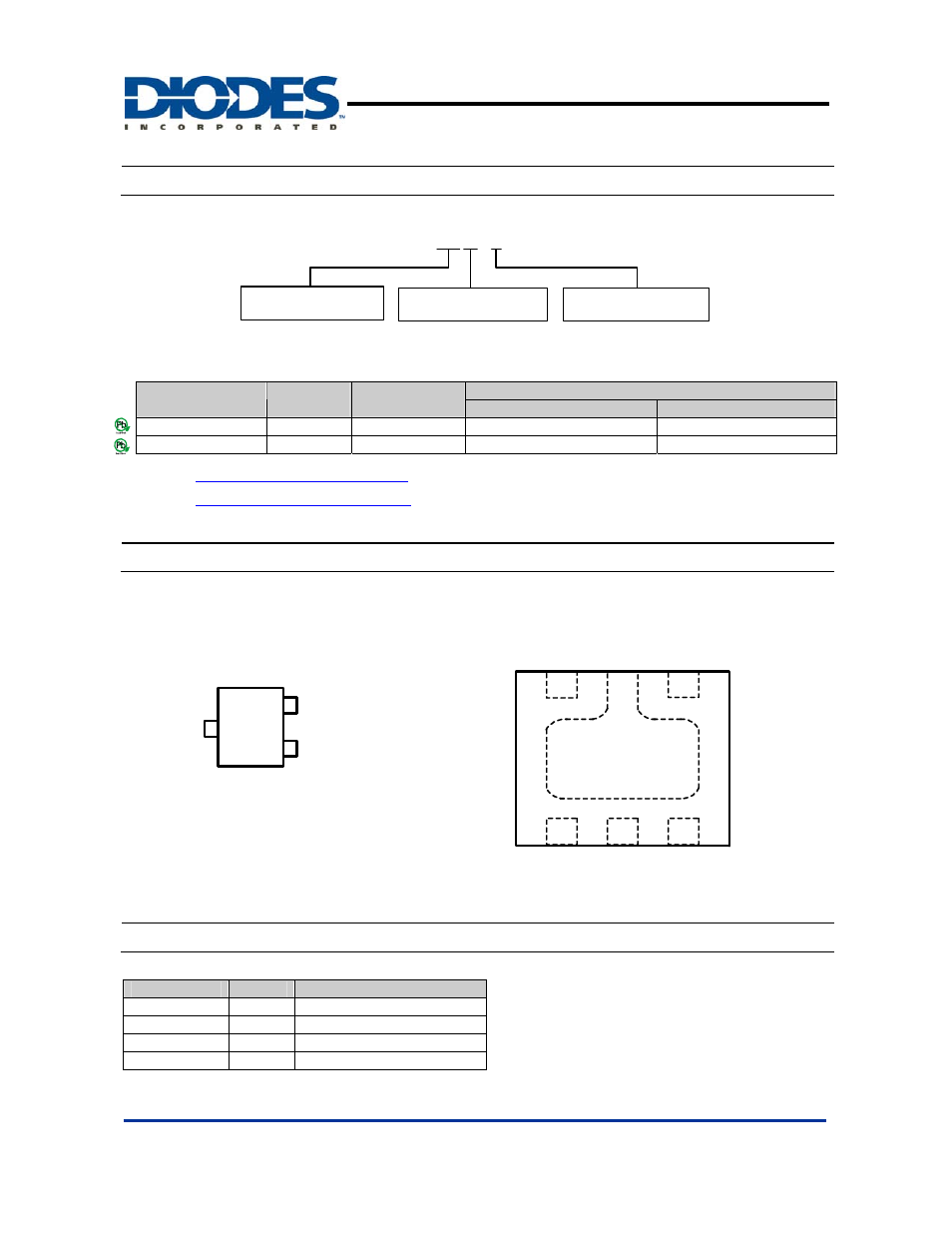

Ordering Information
AH1803 - XX G - 7
Packing
7 : Tape & Reel
Package
Green
W : SC59
SN : DFN2020-6
G : Green
7” Tape and Reel
Product
Package
Code
Packaging
(Note 2)
Quantity
Part Number Suffix
AH1803-WG-7
W
SC59
3000/Tape & Reel
-7
AH1803-SNG-7
SN
DFN2020-6
3000/Tape & Reel
-7
Notes: 1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at
2. Pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at
(1) SC59 (commonly known as SOT23 in Asia)
(2) DFN2020-6
1. Vdd
GND 3.
2. Output
( Top View )
1. Vdd
2. NC 3. Output
4. NC
6. NC
5. GND
( Top View )
Notes: 3. NC is “No Connection”, which is recommended to be tied to ground.
Pin Descriptions
Pin Name
P/I/O
Description
Vdd
P/I
Power Supply Input
GND
P/I Ground
Output O
Output
Pin
NC
No
Connected
Pin Assignments
