BTL Drive Single-phase Full-wave Fan Motor Driver AM4953

Apr. 2012 Rev. 1. 5 BCD Semiconductor Manufacturing Limited

14

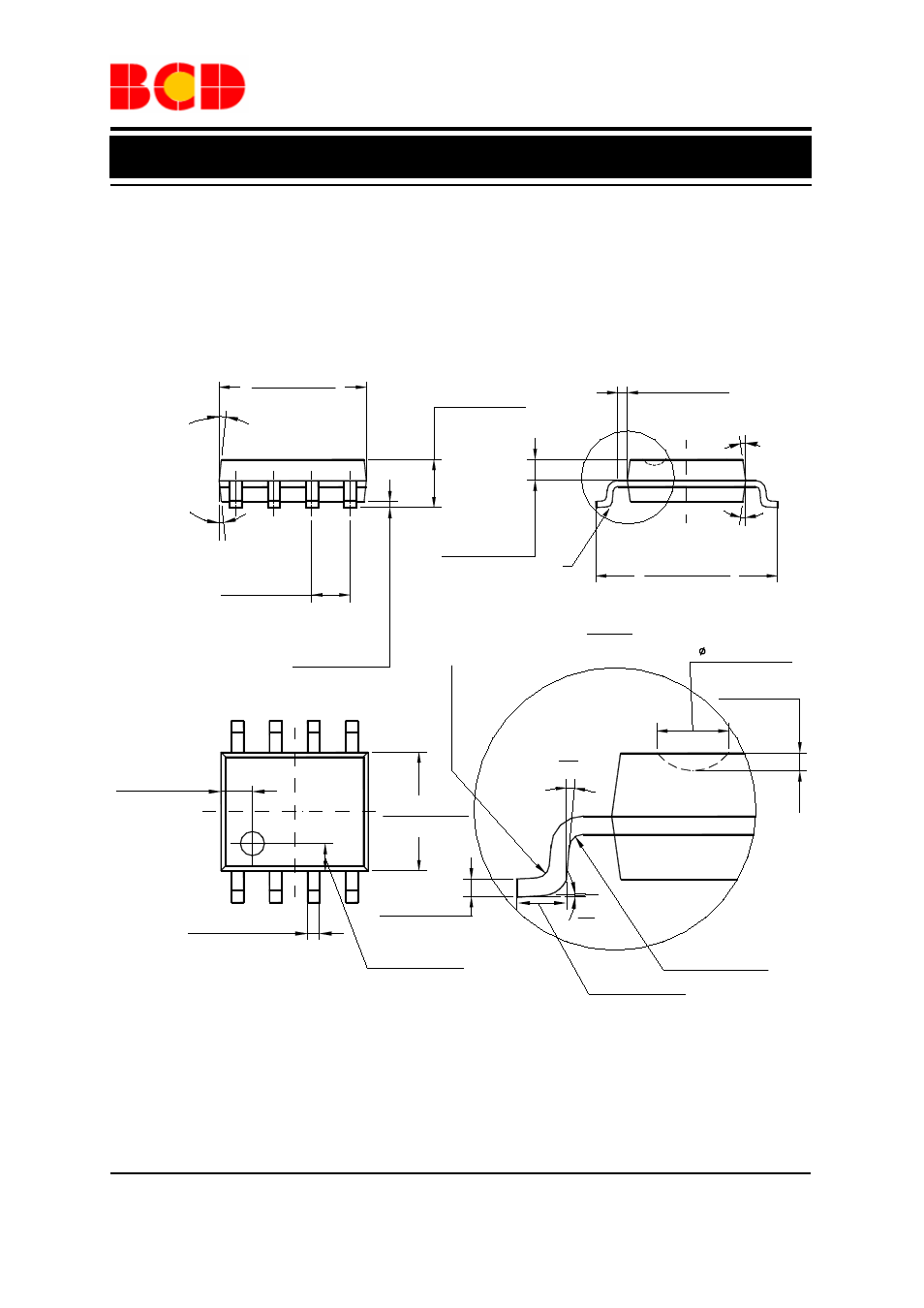

Mechanical Dimensions (Continued)



SOIC-8 Unit: mm(inch)




0°
8°

1°
5°

R0.150(0.006)

R0.150(

0.006)

1.000(0.039)

0.330(0.013)

0.510(0.020)

1.350(0.053)

1.750(0.069)

0.100(0.004)

0.300(0.012)

0.900(0.035)

0.800(0.031)

0.200(0.008)

3.800(0.150)

4.000(0.157)

7°

7°

20:1

D

1.270(0.050)

TYP

0.190(0.007)
0.250(0.010)

8°

D

5.800(0.228)

6.200(0.244)

0.675(0.027)

0.725(0.029)

0.320(0.013)

8°

0.450(0.017)
0.800(0.031)

4.700(0.185)
5.100(0.201)

Note: Eject hole, oriented hole and mold mark is optional.
