SINGLE PHASE HALL EFFECT LATCH AH477A
3
Oct. 2009 Rev. 1. 2 BCD Semiconductor Manufacturing Limited
Data Sheet
Functional Block Diagram

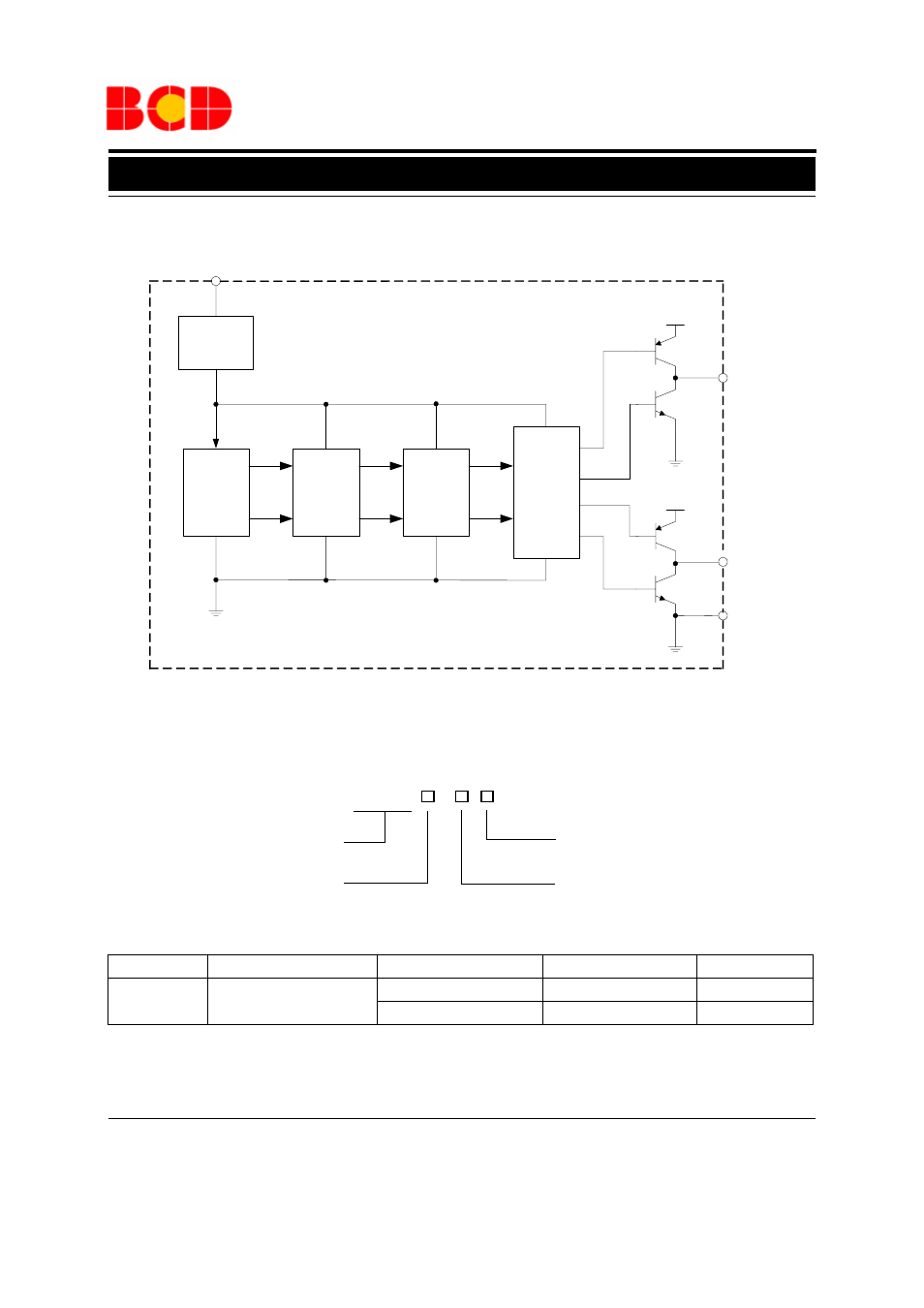

Figure 3. Functional Block Diagram of AH477A
Package Temperature Range Part Number Marking ID Packing Type
TO-94 -20 to 85 o C
AH477AZ4-AG1 477AZ4-G1 Bulk
AH477AZ4-BG1 477AZ4-G1 Bulk
Ordering Information
Circuit Type
Package
Z4: TO-94 (SIP-4L)
AH477A -
Magnetic Characteristics
A: 5 to 70 Gauss
B: 100 Gauss
Regulator
Hall
Sensor
Amplifier
Schmitt
Trigger
Pre-
Driver
DO
DOB
V
CC
GND
1
2
3
4
V
CC
V
CC
G1: Green
BCD Semiconductor's Pb-free products, as designated with "G1" suffix in the part number, are RoHS compliant and green.
