AH289
HIGH VOLTAGE HALL-EFFECT SMART FAN MOTOR
CONTROLLER
AH289 Rev. 11 7 of 9 APRIL 2010
DS31052 www.diodes.com © Diodes Incorporated

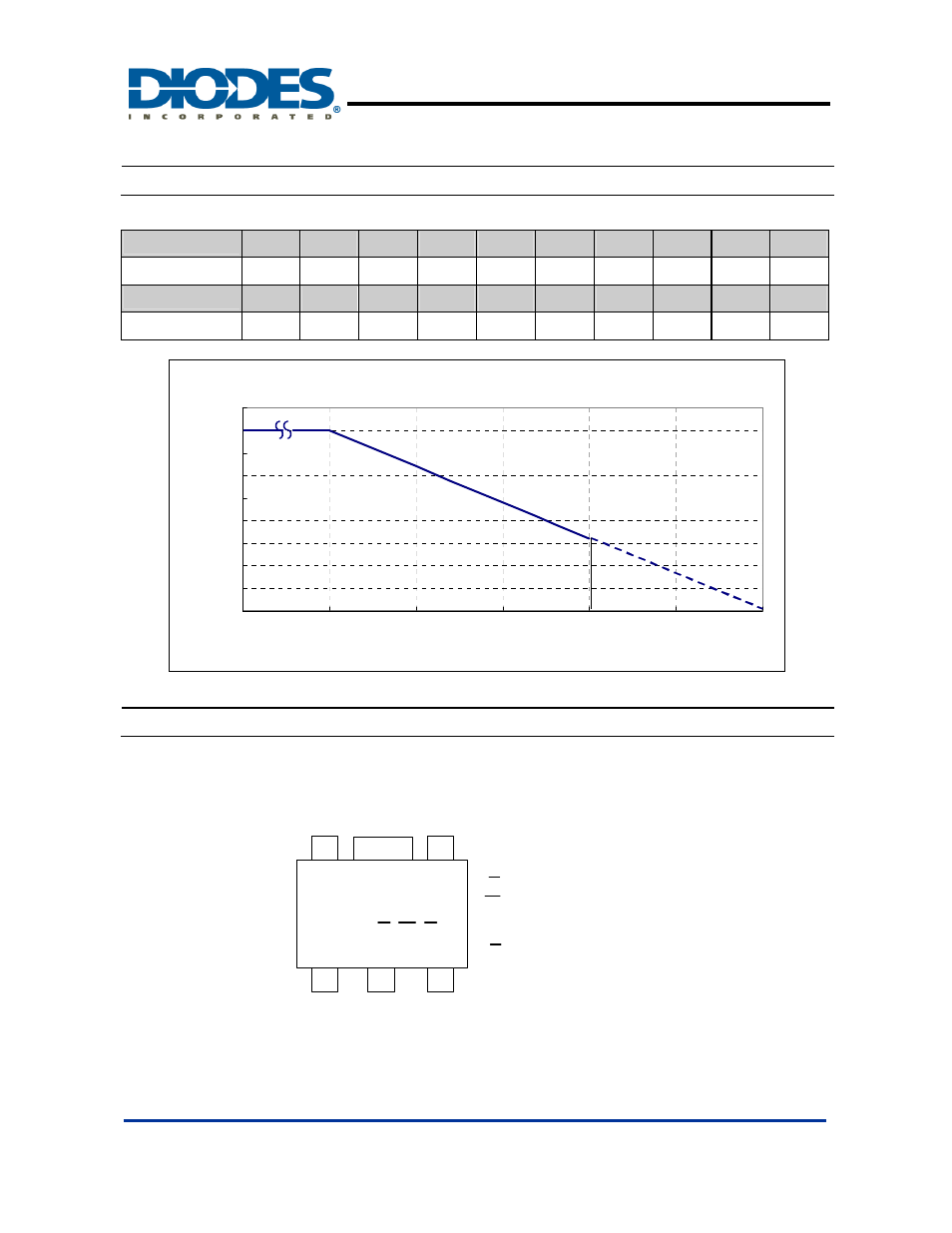

Performance Characteristics
(SOT89-5L)
T A (
°C)
25 50 60 70 75 80 85 90 95 100
P
D
(mW) 800 640 576 512 480 448 416 384 352 320
T A (
°C)
105 110 115 120 125 130 135 140 145 150
P
D
(mW) 288 256 224 192 160 128 96 64 32 0
P ower Dissipation Curve
0
1 0 0
2 0 0
3 0 0
4 0 0
5 0 0
6 0 0
7 0 0
8 0 0
9 0 0
0 2 5 5 0 7 5 10 0 1 2 5 1 50
T
A
(°C)
P
D
(mW )
-4 0
Marking Information
(1) SOT89-5L
1 2 3
5 7 4
289 Y W X
( Top View )
Y : Year : 0~9
W : Week : A~Z : 1~26 week;
X : Internal code
a~z : Lead Free
a~z : 27~52 week;
z represents 52 and 53 week
A~Z : Green
